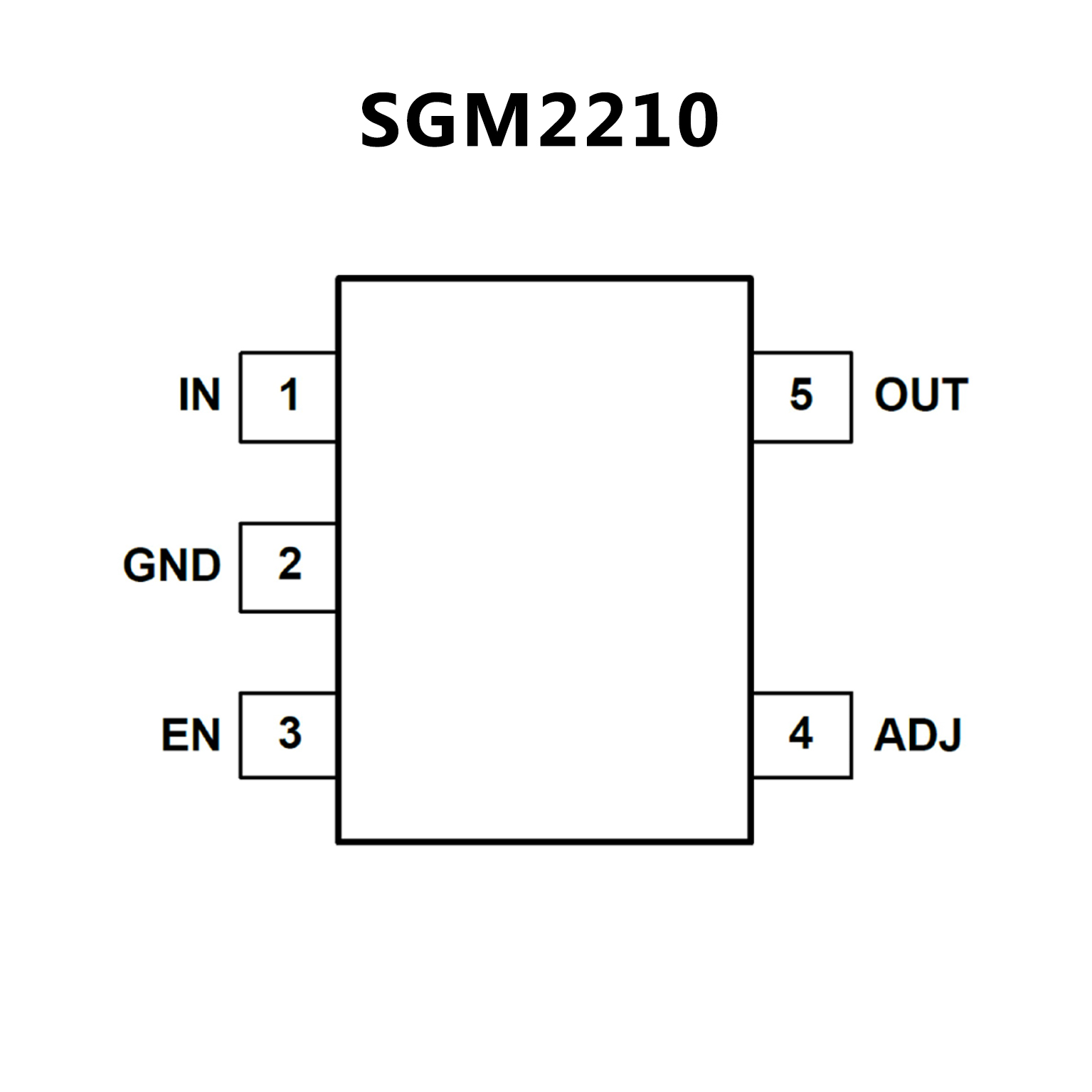

SGM2210-5.0XN5G.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

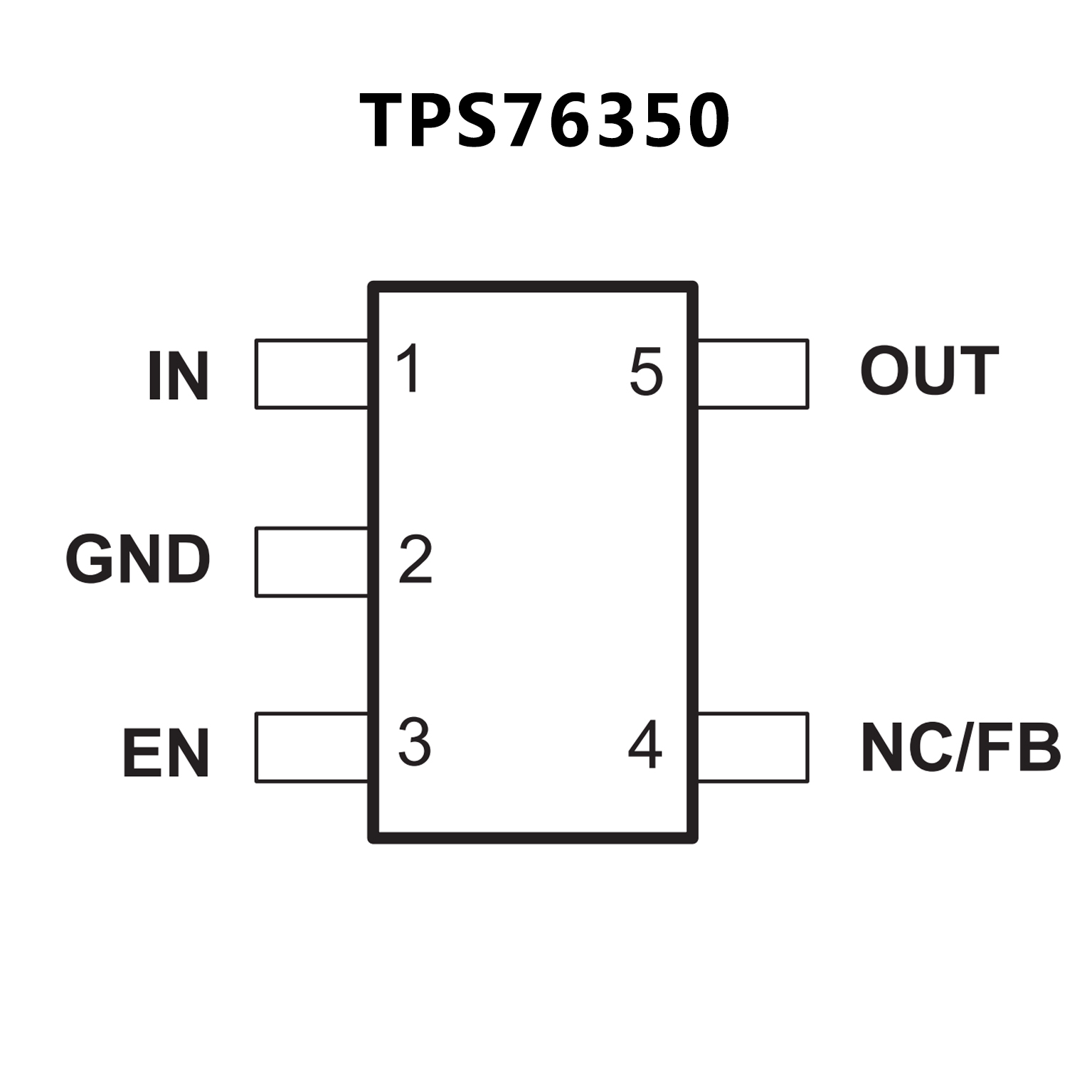

? 150mA 低壓降穩壓器
? 輸出電壓：5V、3.8V、3.3V、3V、2.8V、 2.7V、2.5V、1.8V、1.6V 以及可變電壓
? 150mA 時壓降電壓典型值為 300mV
? 過熱保護
? 過流限制
? 關斷模式下靜態電流小于 2μA
? -40°C 至 125°C 的工作結溫范圍
? 5 引腳 SOT-23 (DBV) 封裝
