800mA, Low Noise, Low Quiescent Current,HighPSRR, Low Dropout Linear Regulator, SGM2212 P2P AMS1117.
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

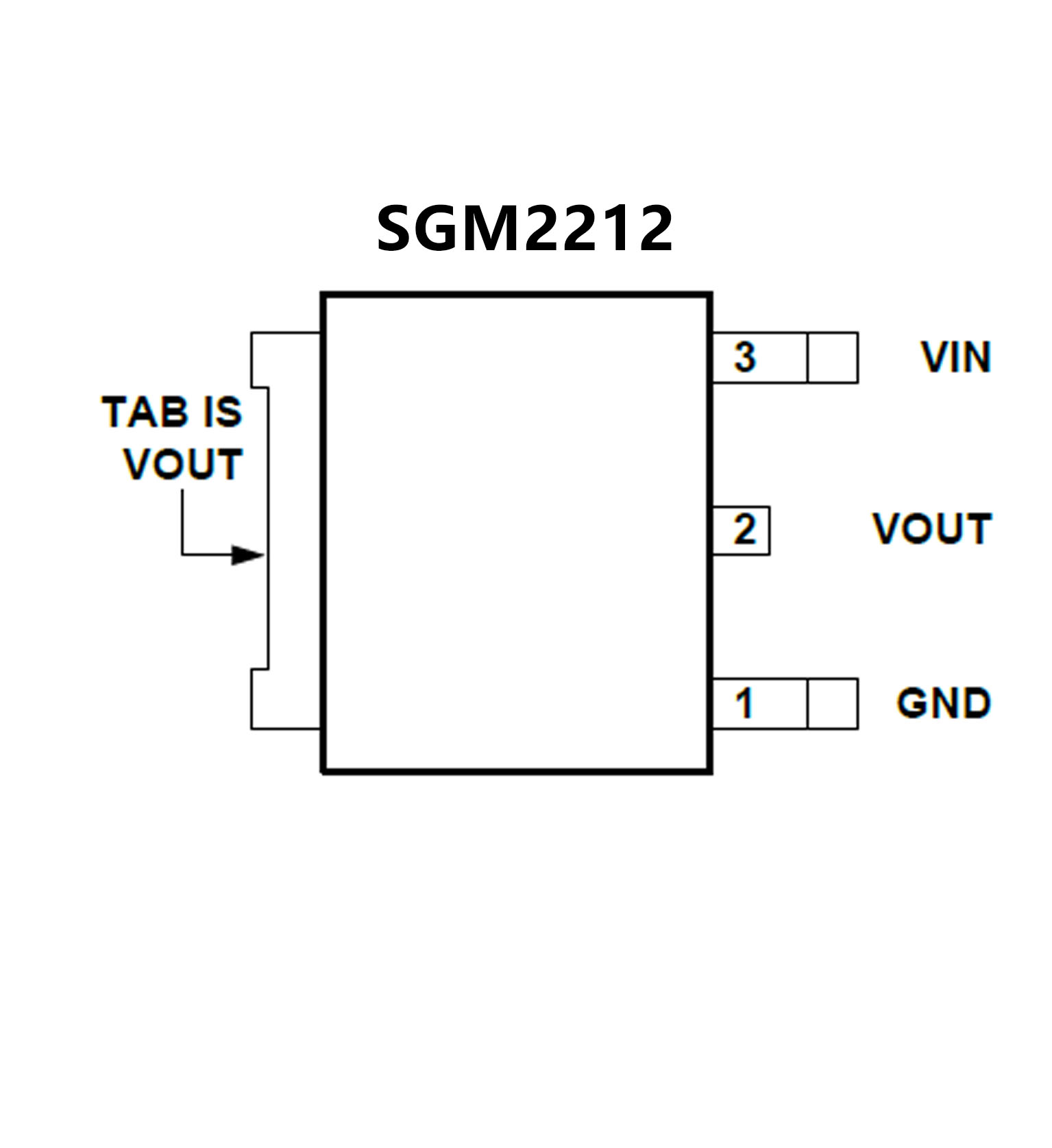

PIN CONFIGUTION
優勢替代
FEATURES
? Low Dropout Voltage
? Load regulation:0.5% Max
? Optimized for Low Voltage
? On-chip thermal limiting.
? Maximum Input Voltage : 30V
? Adjustable Output Voltage or Fixed
1.2V, 1.8V,
2.5V, 3.3V, 5V
? Standard SOT-223,TO-252 ,SOT89 Packages

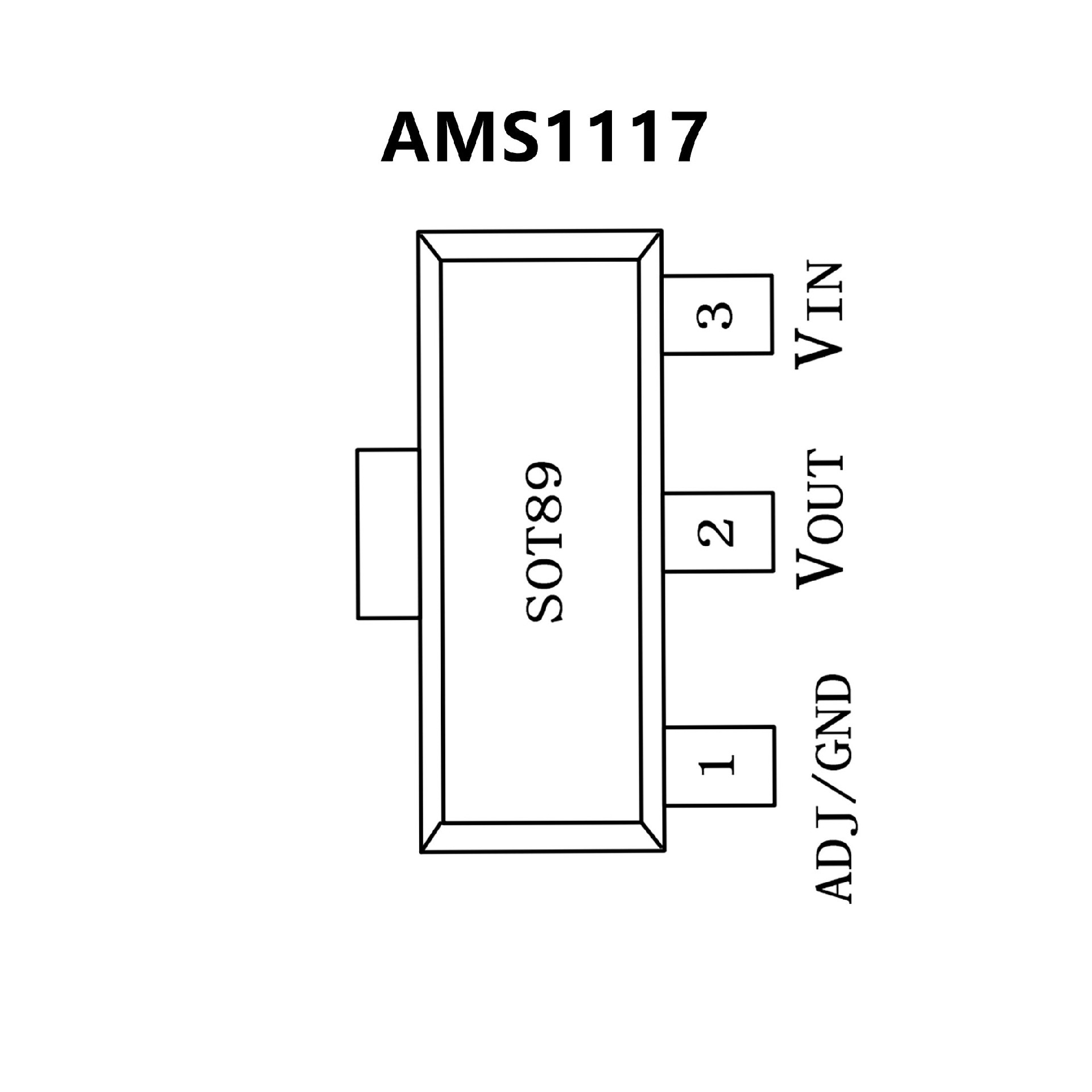

PIN CONFIGUTION
