800mA, Low Noise, Low Quiescent Current,High PSRR, Low Dropout Linear Regulator,SGM2212 Replace NX1117C.
SGM2212-3.3XKC3G
SGM2212-3.3XKC3G.pdf
SGM2212-3.3XKC3G.pdfFEATURES
? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

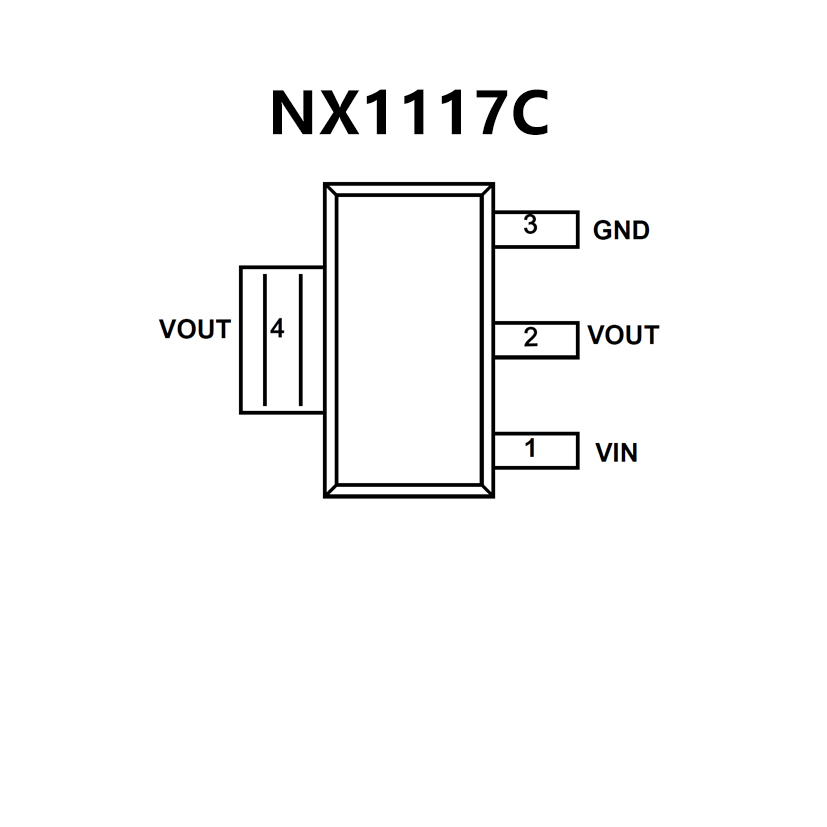

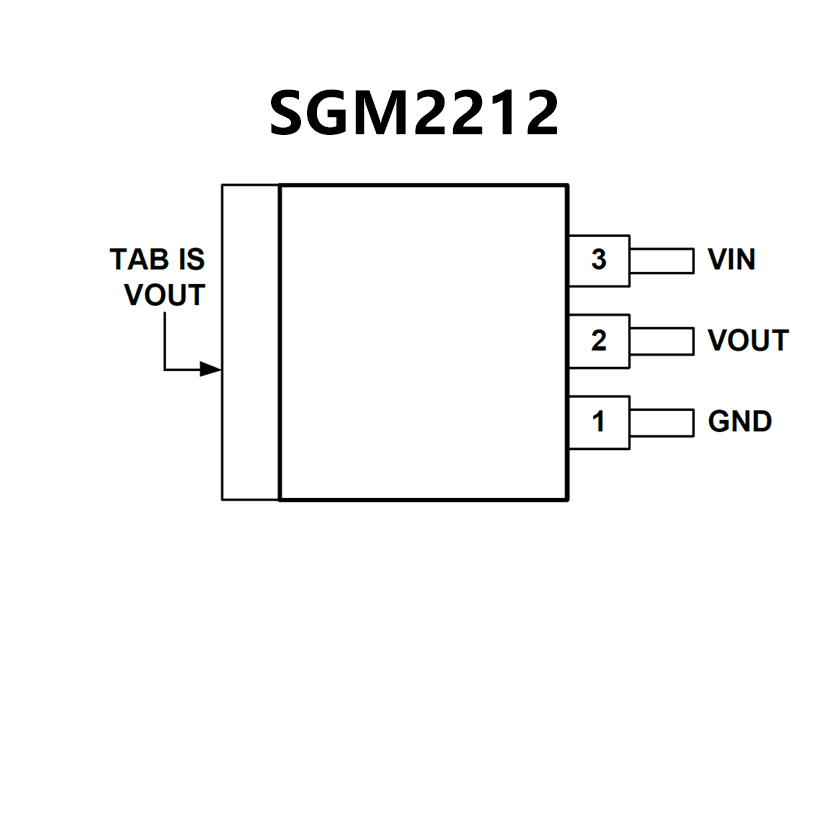

PIN CONFIGUTION
優勢替代
FEATURES
? Maximum output current of 1 A
? SOA control
? Wide operation range to 20 V input
? Thermal shutdown
? Output voltage accuracy of
? 1 % or ?1.25 %
? No minimum load requirements for fixed
output voltage versions
? Output current limiting
? Temperature range
-40 ℃ to 125℃
PIN CONFIGUTION
