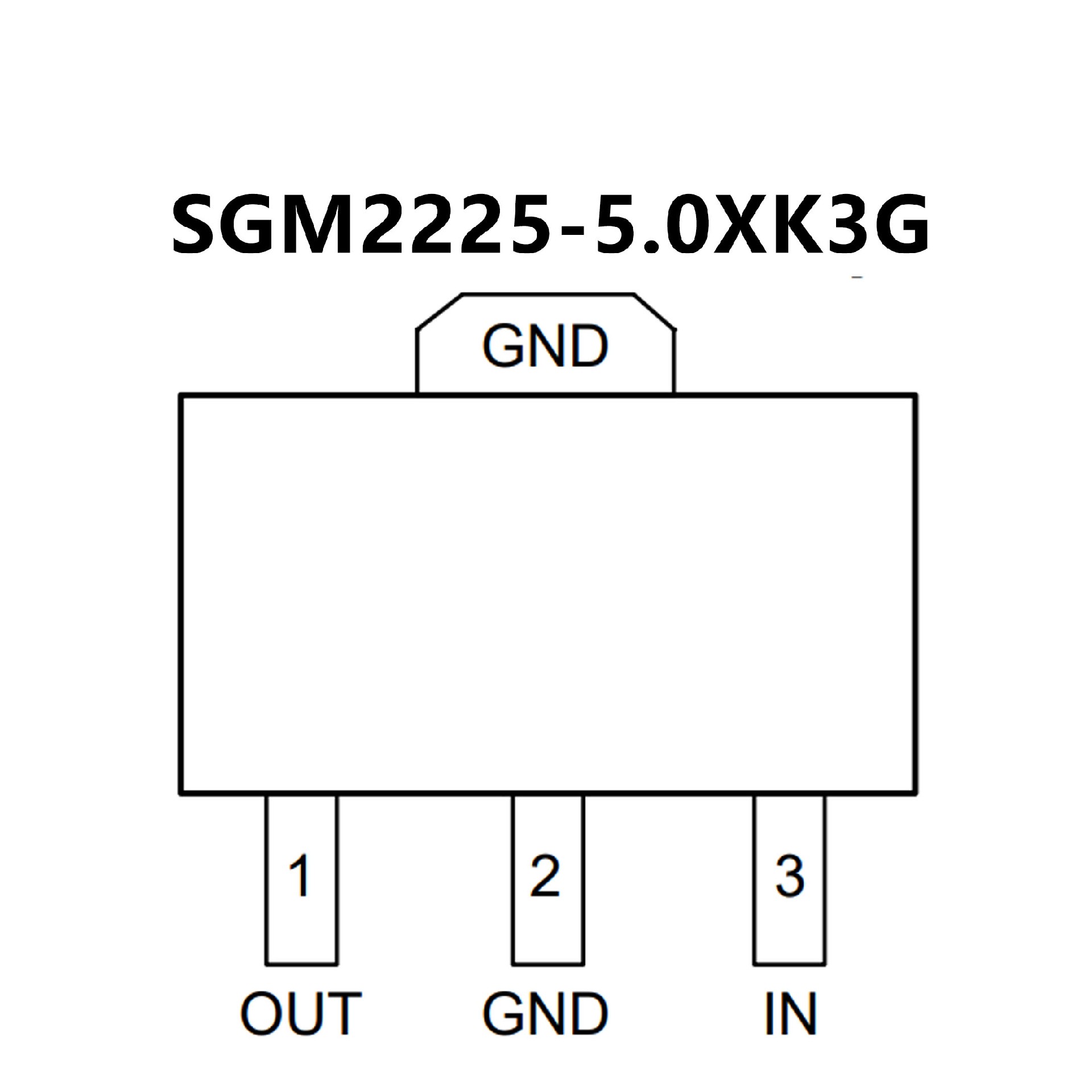

SGM2225.pdf? Wide Input Voltage Range: 3.6V to 36V
? Adjustable Output Voltage Range: 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at Full Load
? Extremely Tight Load and Line Regulations
? Fast Load Transient
? Low Output Voltage Temperature Coefficient
? Output Short-Circuit to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Thermally-Efficient Surface-Mount Package
? Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

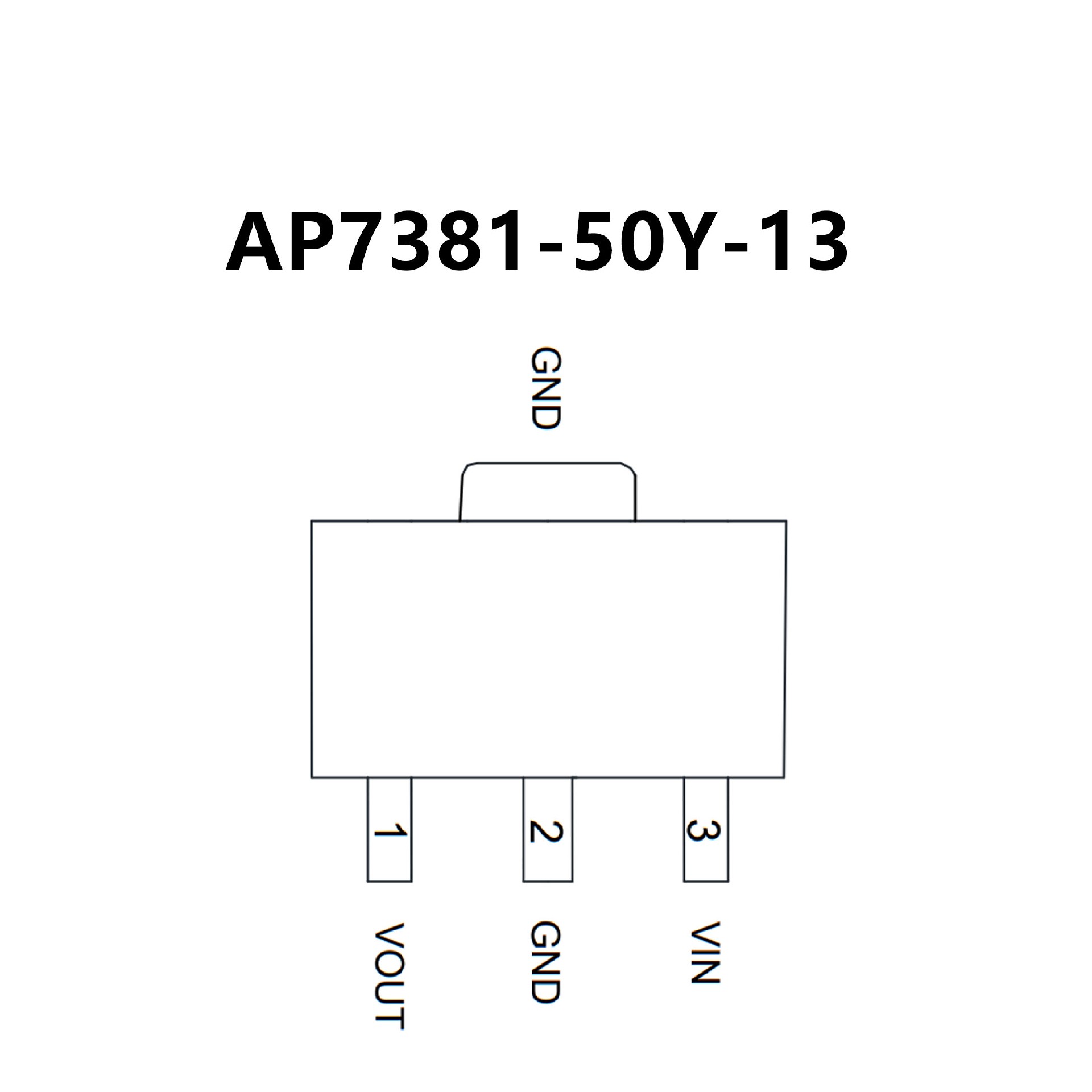

? Wide Input Voltage Range: Up to 40V
? Low Dropout Voltage: VDROP = 1000mV
@IOUT = 100mA@VOUT= 3.3V
? Low Ground Current
? High Output Voltage Accuracy
? Compatible with Low ESR Ceramic Capacitor
? Excellent Line/Load Regulation
? Thermal Shutdown Function
? Short Current Protection Function
? Totally Lead-Free & Fully RoHS Compliant
(Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device
(Note 3)
