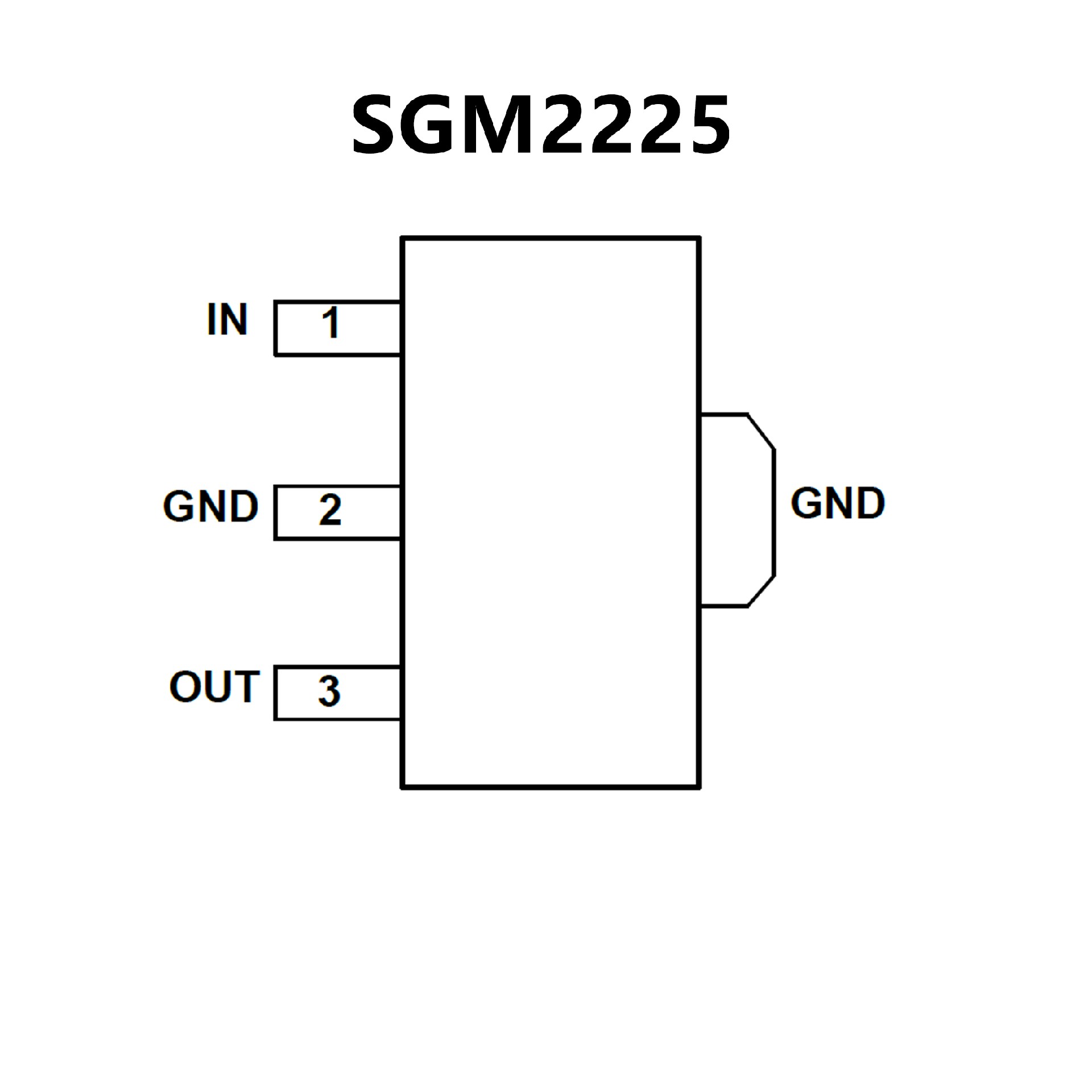

SGM2225-5.0.pdf? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3,
SOIC-8, TDFN-3×3-8L and TO-263-5B Packages

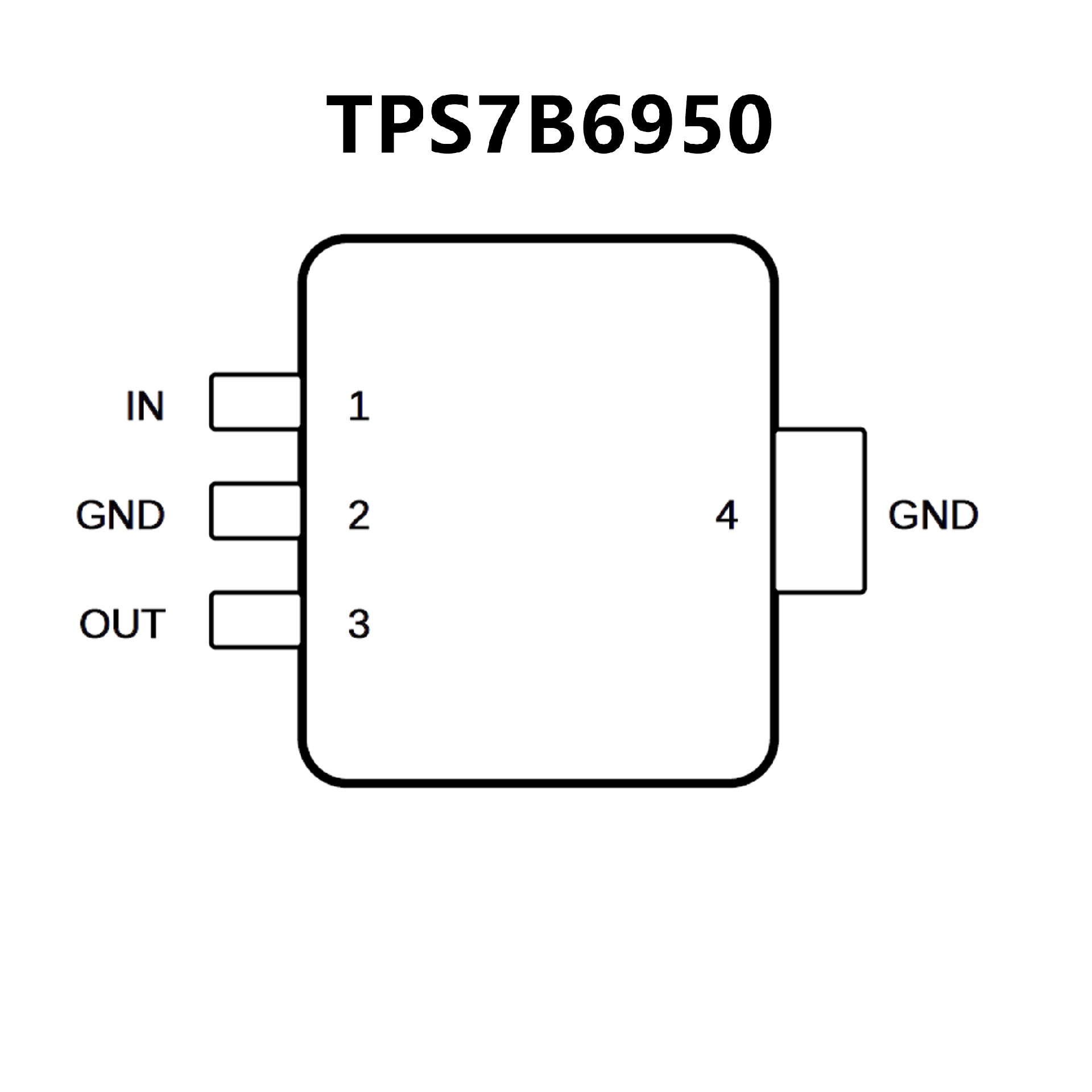

? 4-V to 40-V Wide VI Input Voltage Range With up
to 45-V Transient
? Maximum Output Current: 150 mA
? Low Quiescent Current (IQ):
15 μA Typical at Light Loads
25 μA Maximum Under Full Temperature
? 450-mV Typical Low Dropout Voltage at 100 mA
Load Current
? 10-mV Line Regulation Maximum
? 20-mV Load Regulation Maximum
? Stable With Low-ESR Ceramic Output Capacitor
(2.2 μF to 100 μF)
? Fixed 3.3-V and 5-V Output Voltage Options
? Integrated Fault Protection:
Thermal Shutdown
Short-Circuit Protection
? Packages:
5-Pin SOT-23 Package
4-Pin SOT-223 Package
