800mA, High Voltage, Low Noise and Low Dropout Voltage Regulator,SGM2225 Replace UA78L05AIPK.
SGM2225-5.0XK3G
SGM2225-5.0XK3G.pdf
SGM2225-5.0XK3G.pdfFEATURES
? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

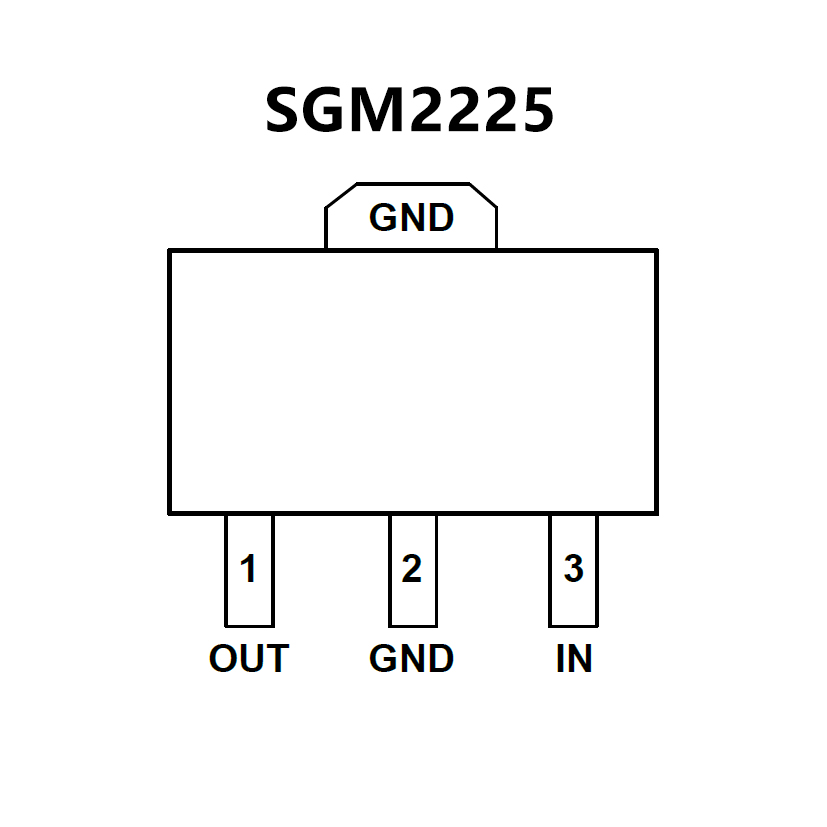

PIN CONFIGUTION
優勢替代
FEATURES
? 3-Terminal Linear Regulators
? Output Current Up to 100 mA
? No External Components
? Internal Thermal-Overload Protection
? Internal Short-Circuit Current Limiting

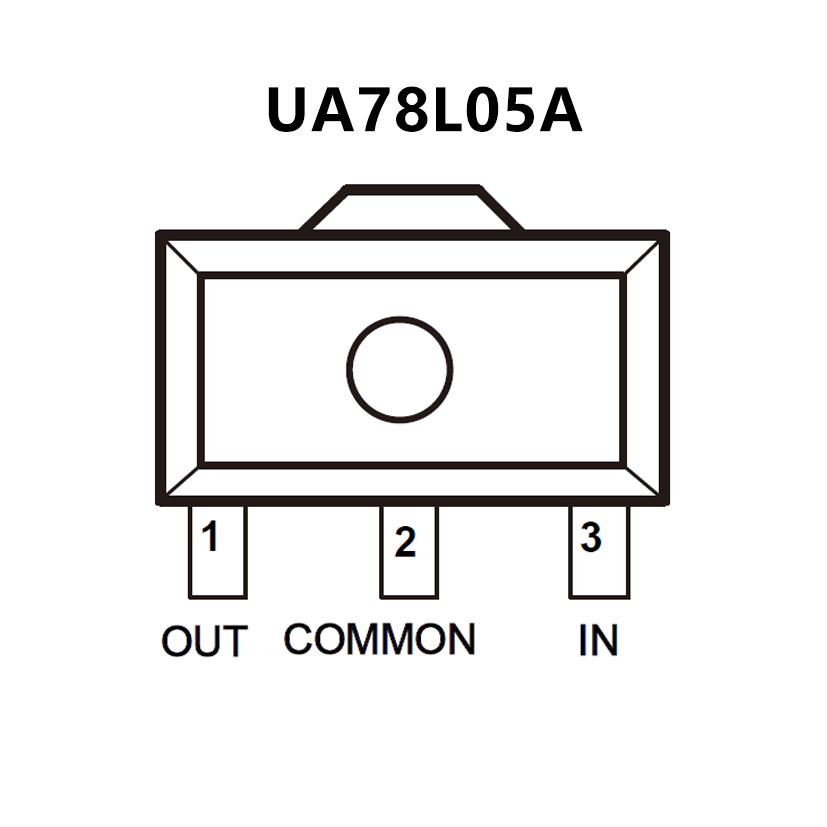

PIN CONFIGUTION
