1MHz, General Purpose CMOS Operational Amplifier,SGM2358 Replace TLV9002.
SGM2358
SGM2358.pdf
SGM2358.pdfFEATURES
? Low Cost
? Rail-to-Rail Output
? 1.7mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 1MHz
? Very Low Input Bias Currents: 10pA
? Input Common-Mode Voltage Range Includes
Ground
? Operates from 2.5 V to 5.5 V
? Small Packaging: SO-8

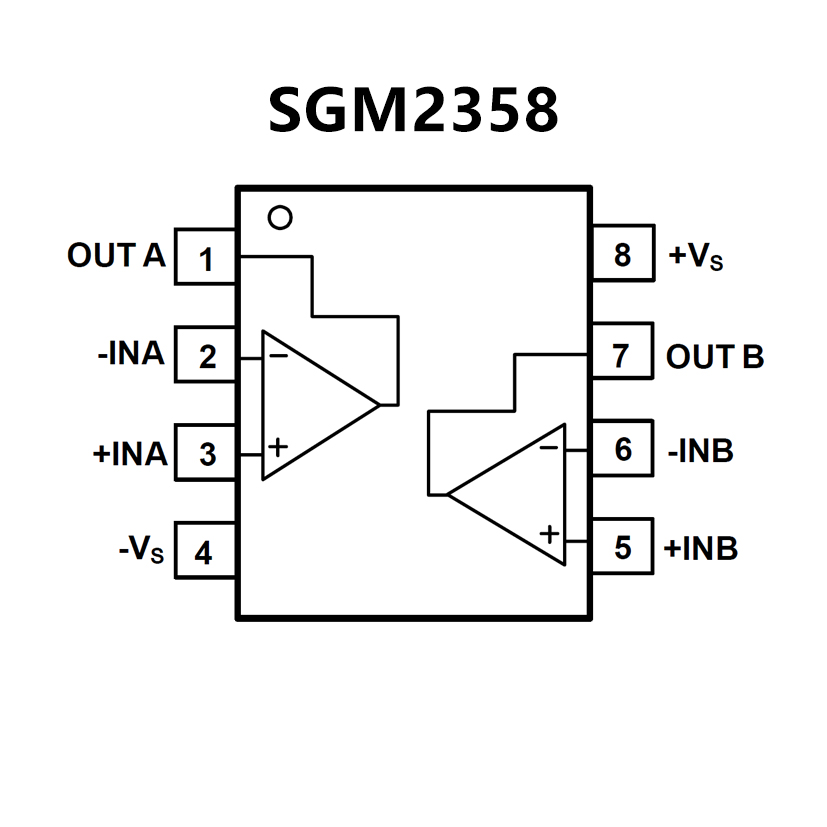

PIN CONFIGUTION
優勢替代
FEATURES
? Scalable CMOS amplifier for
low-cost applications
? Rail-to-rail input and output
? Low input offset voltage: ±0.4 mV
? Unity-gain bandwidth: 1 MHz
? Low broadband noise: 27 nV/√Hz
? Low input bias current: 5 pA
? Low quiescent current: 60 μA/Ch
? Unity-gain stable
? Internal RFI and EMI filter
? Operational at supply voltages as low as 1.8 V
? Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
? Extended temperature range: –40°C to 125°C

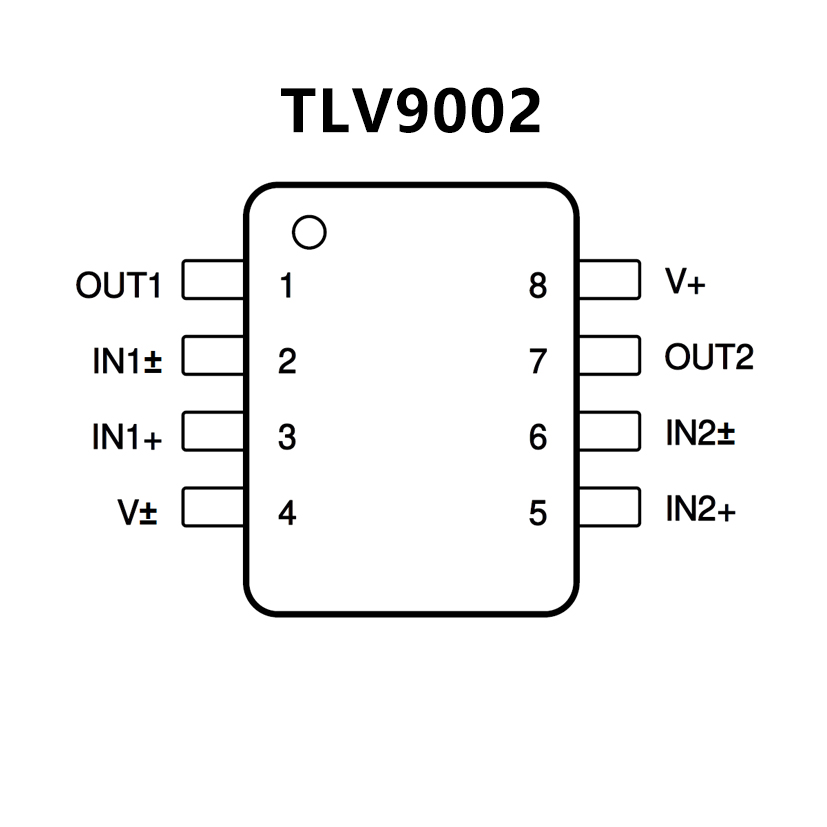

PIN CONFIGUTION
