28V/16V Bidirectional Load Switch with Wireless/Dual Input Capability, SGM2541 Replace NCP3902.
SGM2541
SGM2541.pdf
SGM2541.pdfFEATURES
? Bidirectional Switch for USBIN and OUT to Allow
On-The-Go (OTG) Mode
? Input Voltage Range:
3V to 20V at USBIN and 3V to 16V at OUT
? Programmable OVP Threshold Voltages
? 28V Tolerance on USBIN Pin
? 120V Surge Protection
? 5A Continuous Current from USBIN to OUT
? 5A Continuous Current from OUT to USBIN in OTG Mode
? Low On-Resistance: 28mΩ (TYP)
? 1.4V Control Logic
? Soft-Start to Reduce Input Peak Current
? Available in Green WLCSP-2.43×1.75-20B Package
? -40℃ to +85℃ Operating Temperature Range

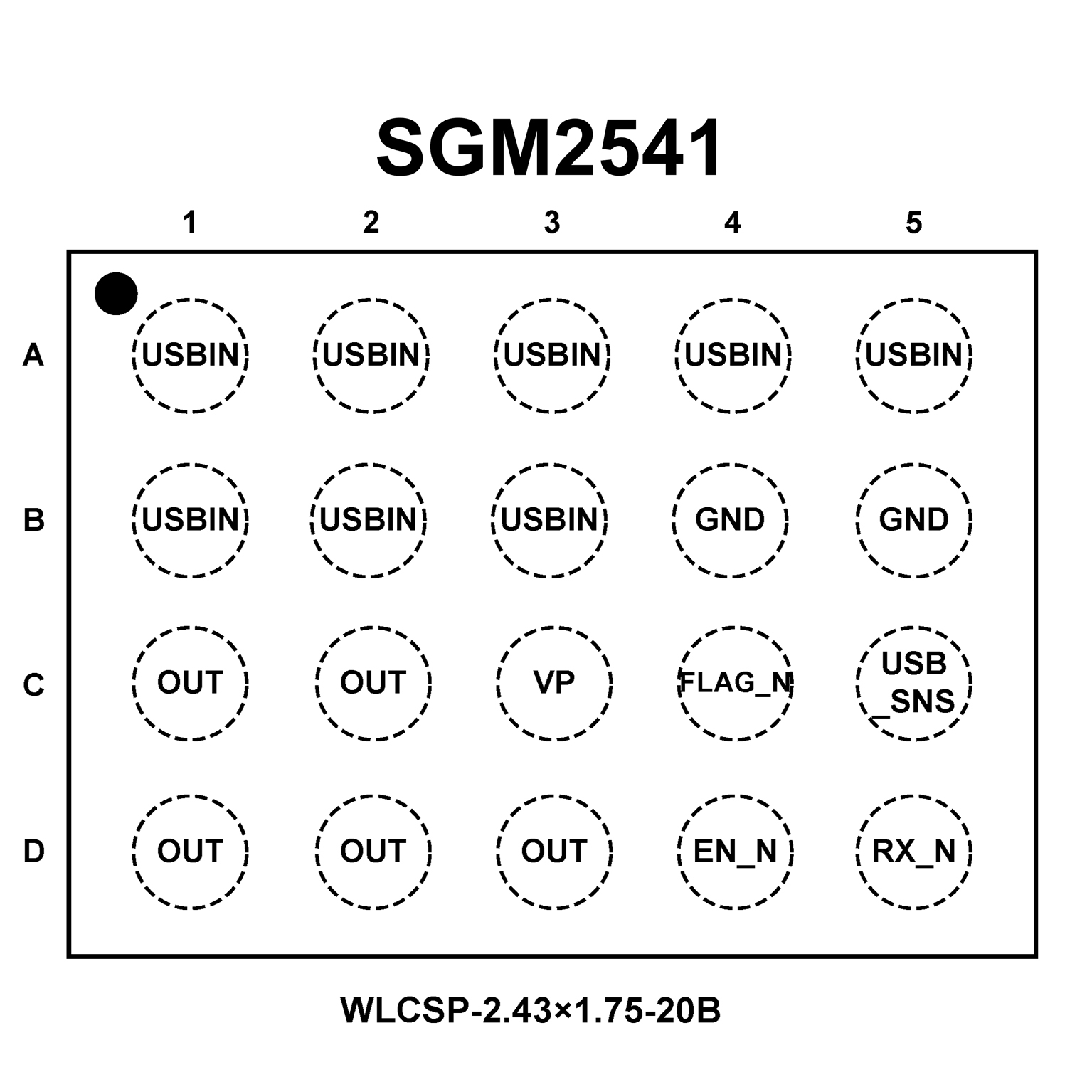

PIN CONFIGUTION
優勢替代
FEATURES
? DC Input Voltage Operating Range from 3.0 V to 20 V
? 28 V DC Absolute Maximum Input Voltage
? Pin?selectable Overvoltage Protection (13 V / 17 V)
? Surge Protection Compliant with IEC61000?4?5 at 100 V
? Input Voltage Sense Output with Selectable Clamp
(16 V / 20 V)
? Reverse Blocking Protection from OUT to USBIN
? Switch On?resistance of 23 m Typical
? 3 A DC Nominal and 5 A Maximum Current Capability
? Autonomous Mode and Slave Mode Operation
? 50 ms Input Supply Detect Deglitcher in Autonomous Mode
? 50 ms Break?before?make Timing with Discharge
? Bi?directional Status Indicator and OTG Enable Pin
? Device Enable Input (active low)
? Wireless Enable Output (active low)
? These Devices are Pb?Free and are RoHS Compliant

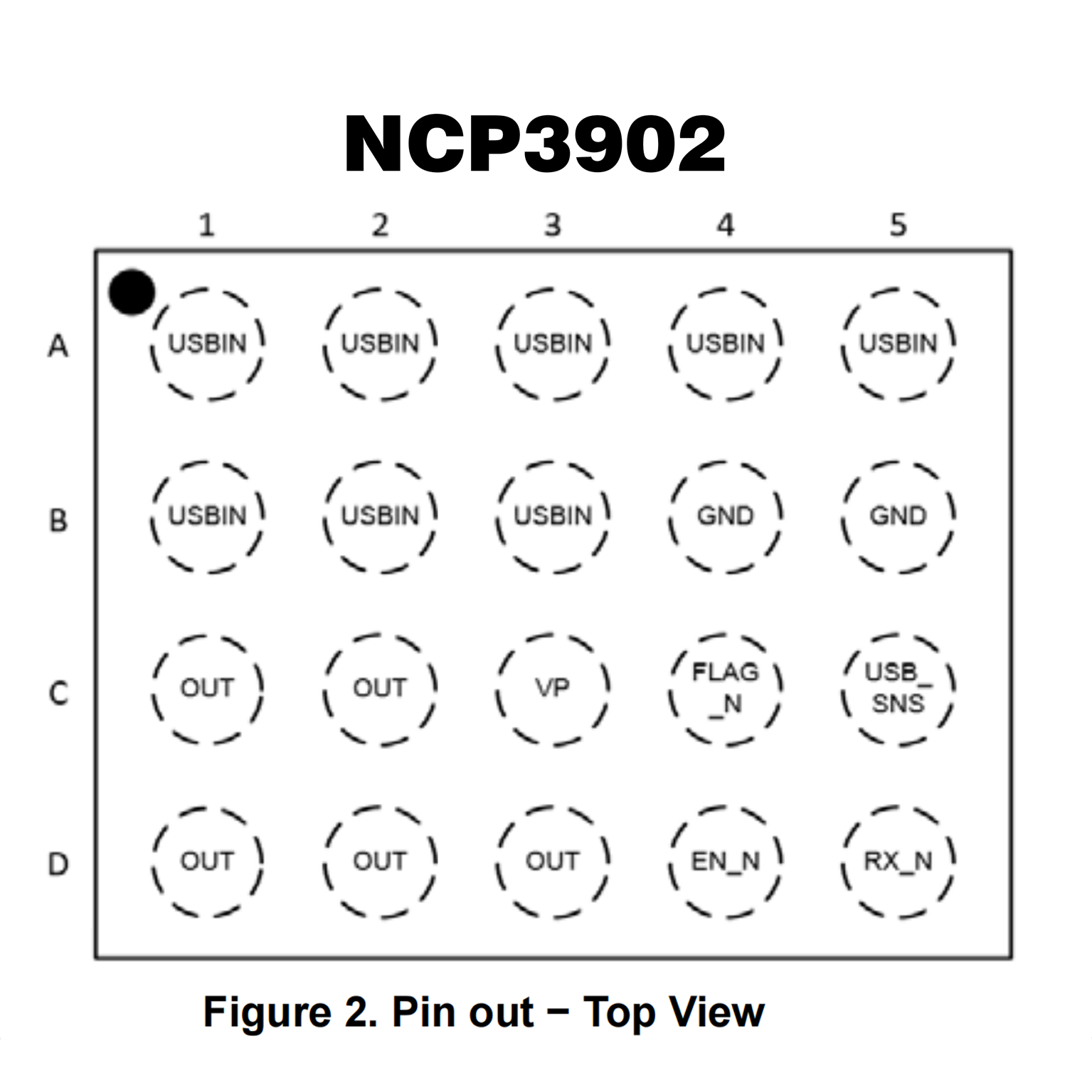

PIN CONFIGUTION
