5.5V, 4A, 16mΩ RON Load Switch with Reverse Current Protection, SGM2564 Replace ADP196.
SGM2564
SGM2564.pdf
SGM2564.pdfFEATURES
? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 4A
? Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
? Low Shutdown Current: 180nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for Power Zone Application
? Controlled Slew Rate to Avoid Inrush Current
? Quick Output Discharge
? Available in a Green WLCSP-1.45×0.95-6B Package

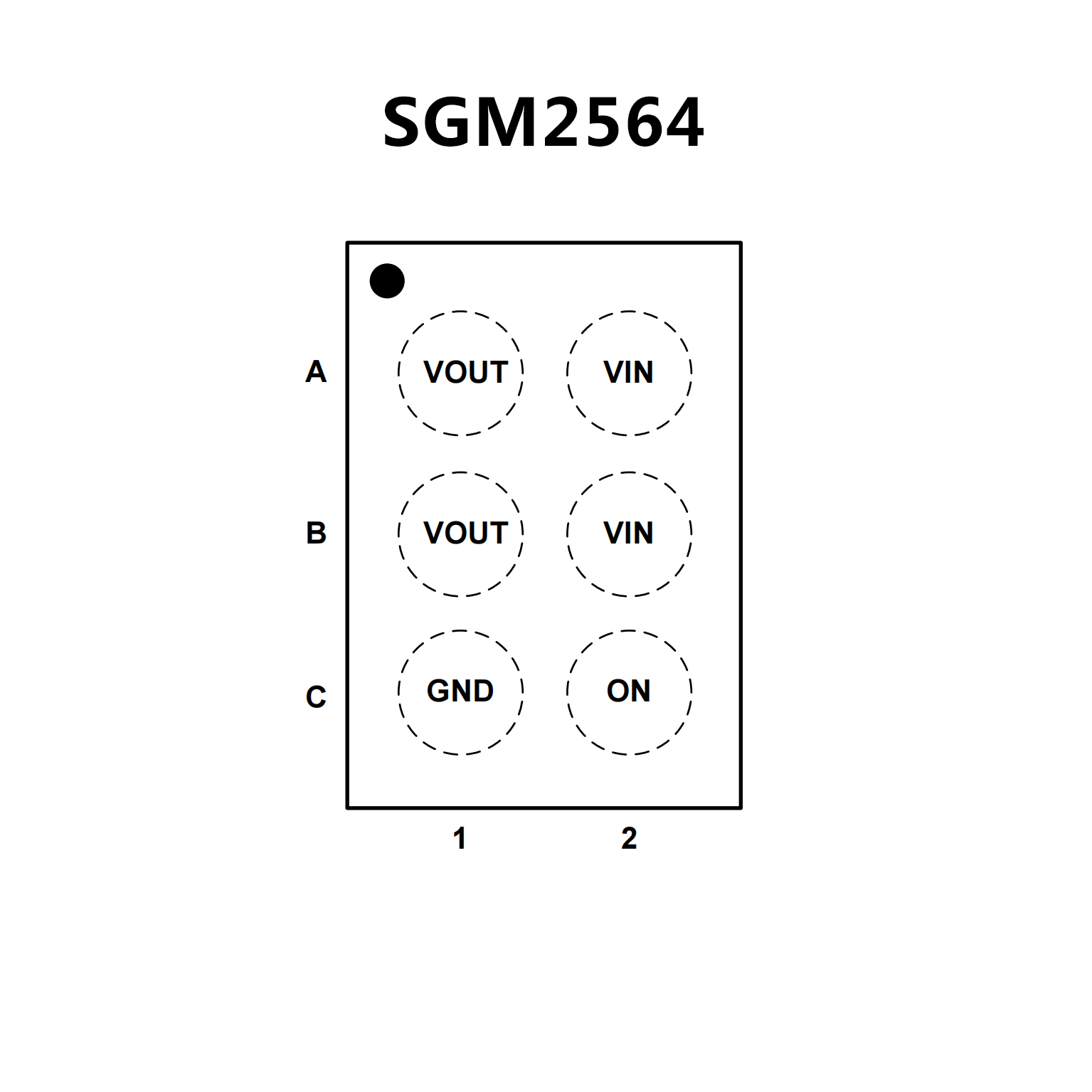

PIN CONFIGUTION
優勢替代
FEATURES
? 低RDSON:10 mΩ (WLCSP)或27 mΩ (LFCSP)
? 寬輸入電壓范圍：1.8V至5.5V
? 快速輸出放電(QOD)電路(ADP196-01)
? 連續工作電流：3A (70℃)
? 1.2V邏輯兼容使能輸入
? 低靜態電流：25 μA (VIN = 1.8 V)
? 低靜態電流：VIN = 5.5 V
? 過溫和過流保護
? 超低關斷電流：<1 μA
? 超小型1.0 mm × 1.5 mm、0.5 mm間距
6引腳WLCSP封裝
? 小型2.0 mm × 2.0 mm × 0.55 mm、
0.65 mm間距、6引腳LFCSP封裝

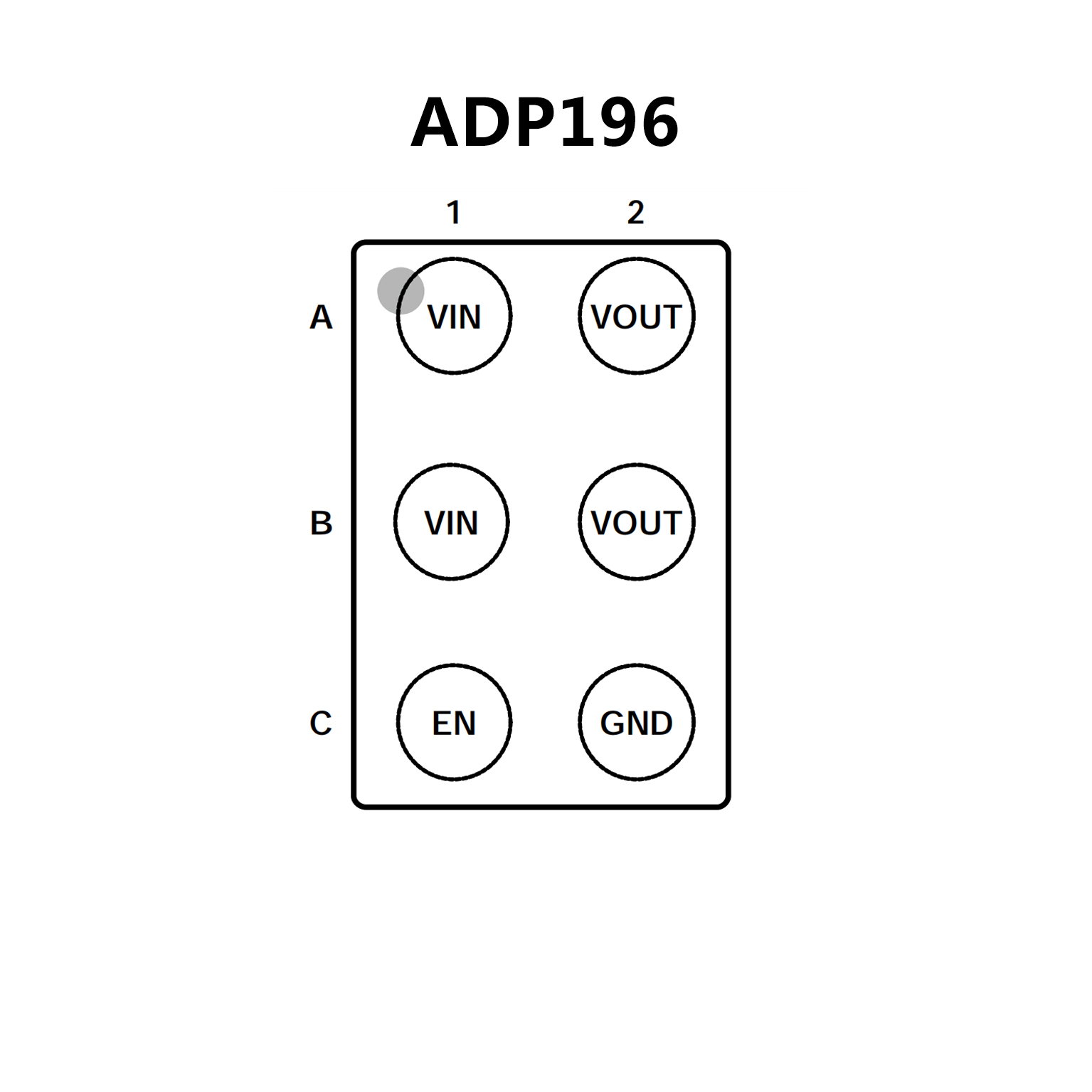

PIN CONFIGUTION
