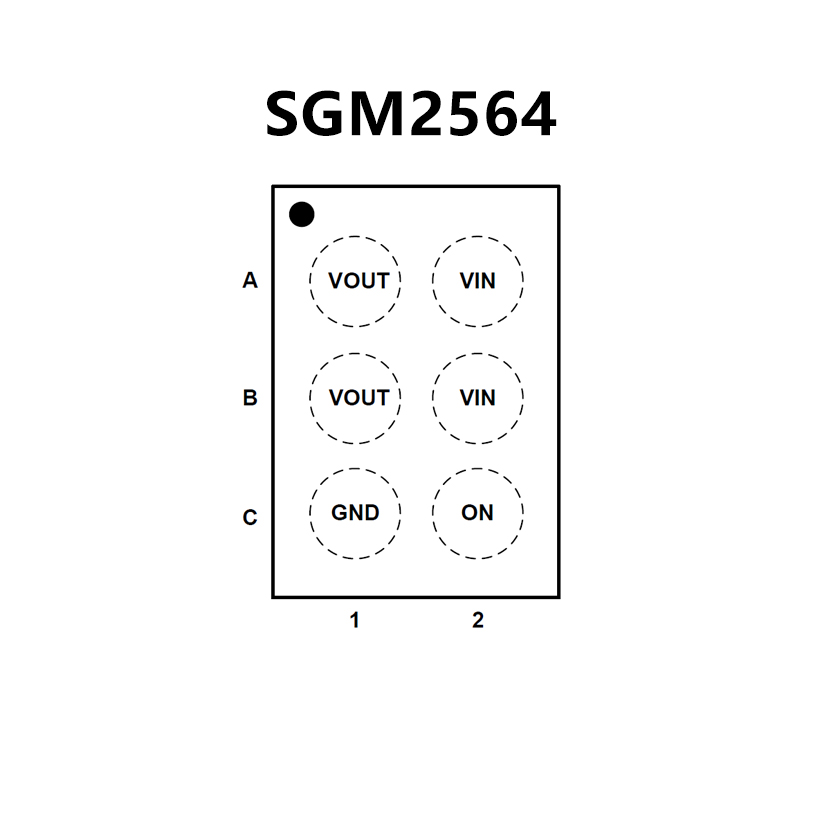

SGM2564YG.pdf? Integrated N-MOSFET Load Switch
? 1V to 5.5V Input Voltage Range
? Ultra-Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
? Reverse Current Protection (When Disabled)
? 4A Maximum Continuous Switch Current
? Low Shutdown Current: 180nA (TYP)
? Low Threshold 1.2V GPIO Control Input
? Controlled Slew Rate to Avoid Inrush Current
? Quick Output Discharge
? Bidirectional Power Supply for Power ZoneApplication
? Available in a Green WLCSP-1.45×0.95-6B Package

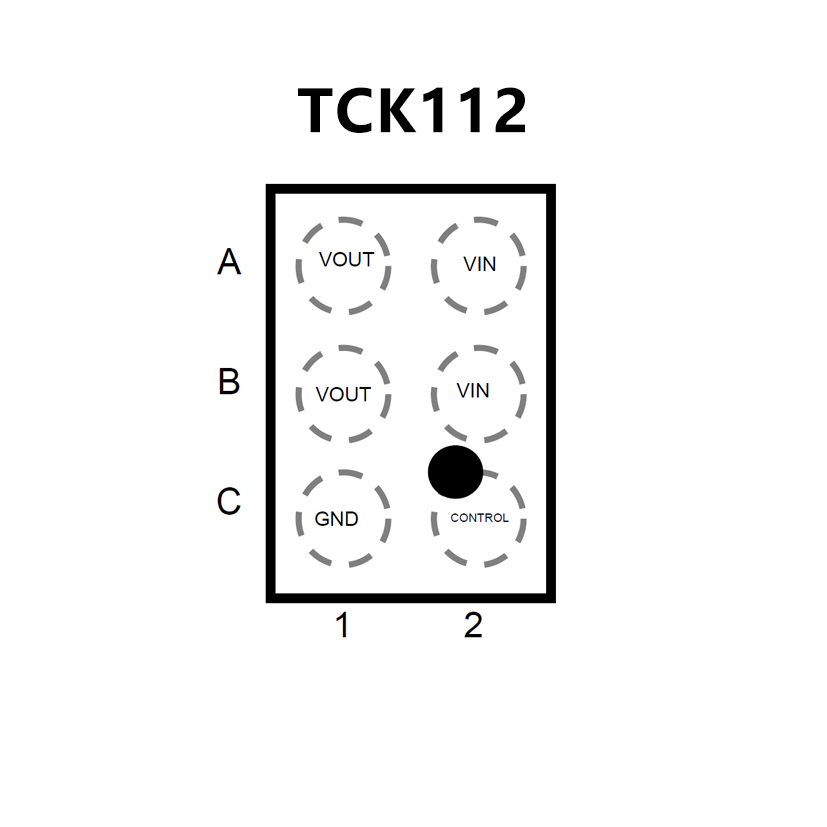

? Low ON resistance:
RON = 8.3 mΩ (typ.) at VIN = 5.0 V, -1.5 A
RON = 8.4 mΩ (typ.) at VIN = 3.3 V, -1.5 A
RON = 8.4 mΩ (typ.) at VIN = 1.8 V, -1.5 A
RON = 8.5 mΩ (typ.) at VIN = 1.1 V, -1.5 A
? Wide input voltage operation: VIN = 1.1 to 5.5 V
? Reverse current blocking
? Inrush current reducing circuit
? Thermal Shutdown function
? Output auto-discharge ( TCK112G )
? Pull down connection between CONTROL and GND
? Ultra small package : WCSP6C (1.0mm x 1.5mm, t: 0.5 mm(typ.))
