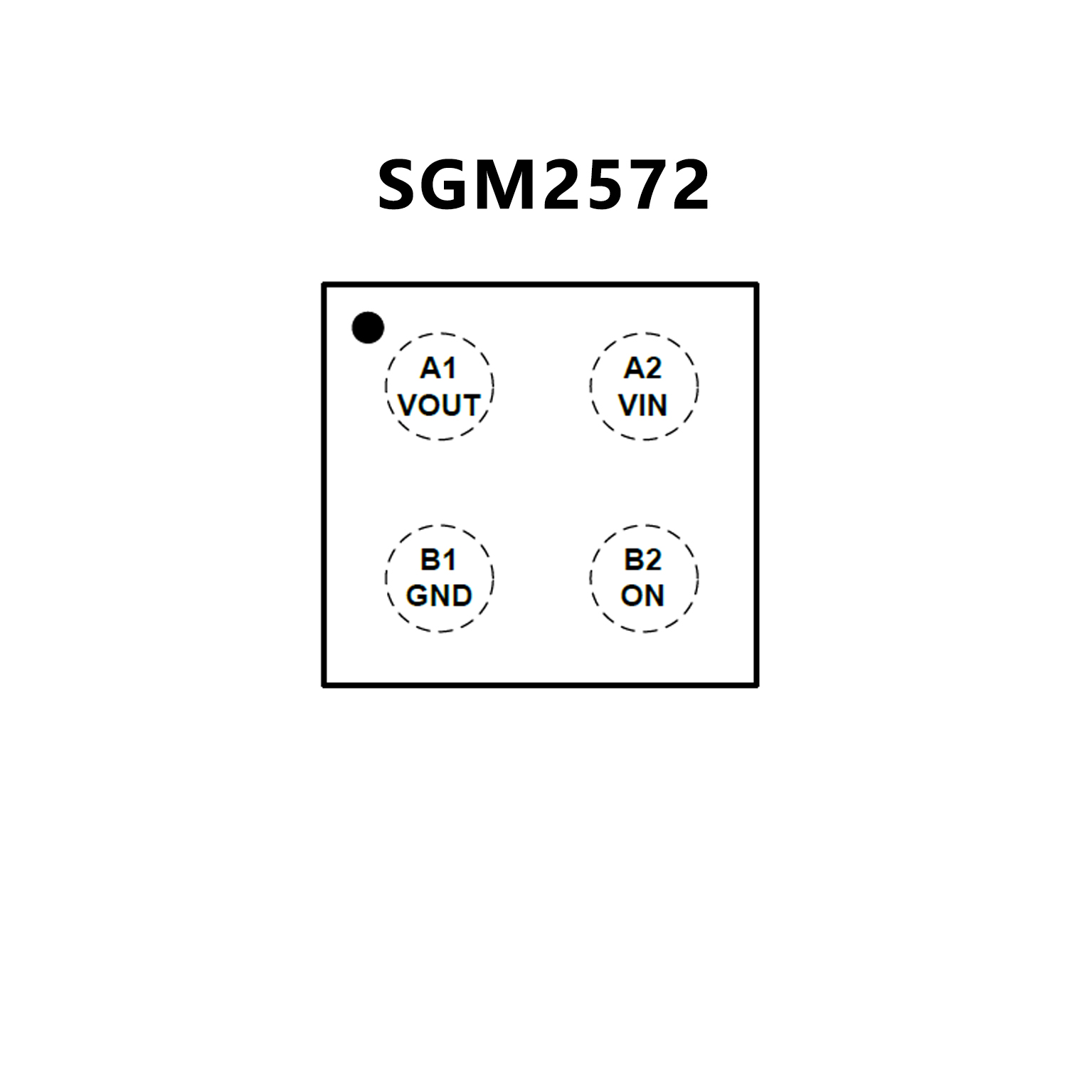

SGM2572.pdf? Integrated N-MOSFET Load Switch
? 1V to 5.5V Input Voltage Range
? Ultra-Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? 2A Maximum Continuous Switch Current
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for
Power Zone Application
? Rise Time: 60μs (TYP)
? Quick Output Discharge
? Available in a Green WLCSP-0.8×0.8-4B Package
? 1.2 V to 5.5 V Input Voltage Operating Range
? Typical RON:
45 m at VIN = 5.5 V 55 m at VIN = 3.3 V
90 m at VIN = 1.8 V 185 m at VIN = 1.2 V
? Slew Rate Control with tR:100 s

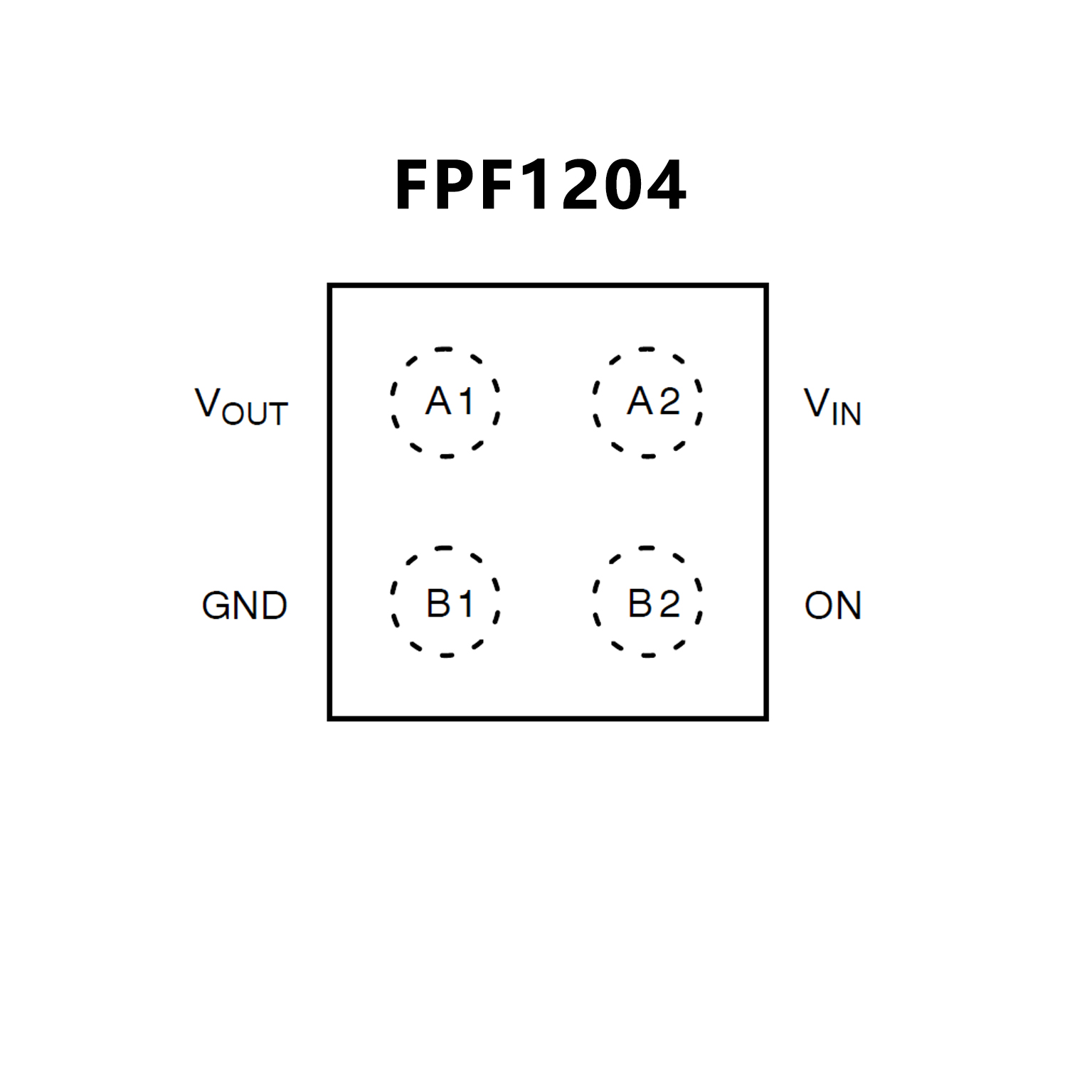

? Output Discharge Function on FPF1204
? Low <1.5 A Quiescent Current
? ESD Protected: Above 7 kV HBM, 2 kV CDM
? GPIO / CMOS?Compatible Enable Circuitry
? 4?Bump, WLCSP 0.76 mm x 0.76 mm, 0.4 mm Pitch
? These are Pb?Free Devices
