5.5V, 2A, 34mΩ RON, Load Switch with Reverse Current Protection and Controlled Turn On,Replace NCP334
SGM2572
SGM2572.pdf
SGM2572.pdfFEATURES
? Integrated N-MOSFET Load Switch
? 1V to 5.5V Input Voltage Range
? Ultra-Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? 2A Maximum Continuous Switch Current
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for
Power Zone Application
? Rise Time: 60μs (TYP)
? Quick Output Discharge
? Available in a Green WLCSP-0.8×0.8-4B Package

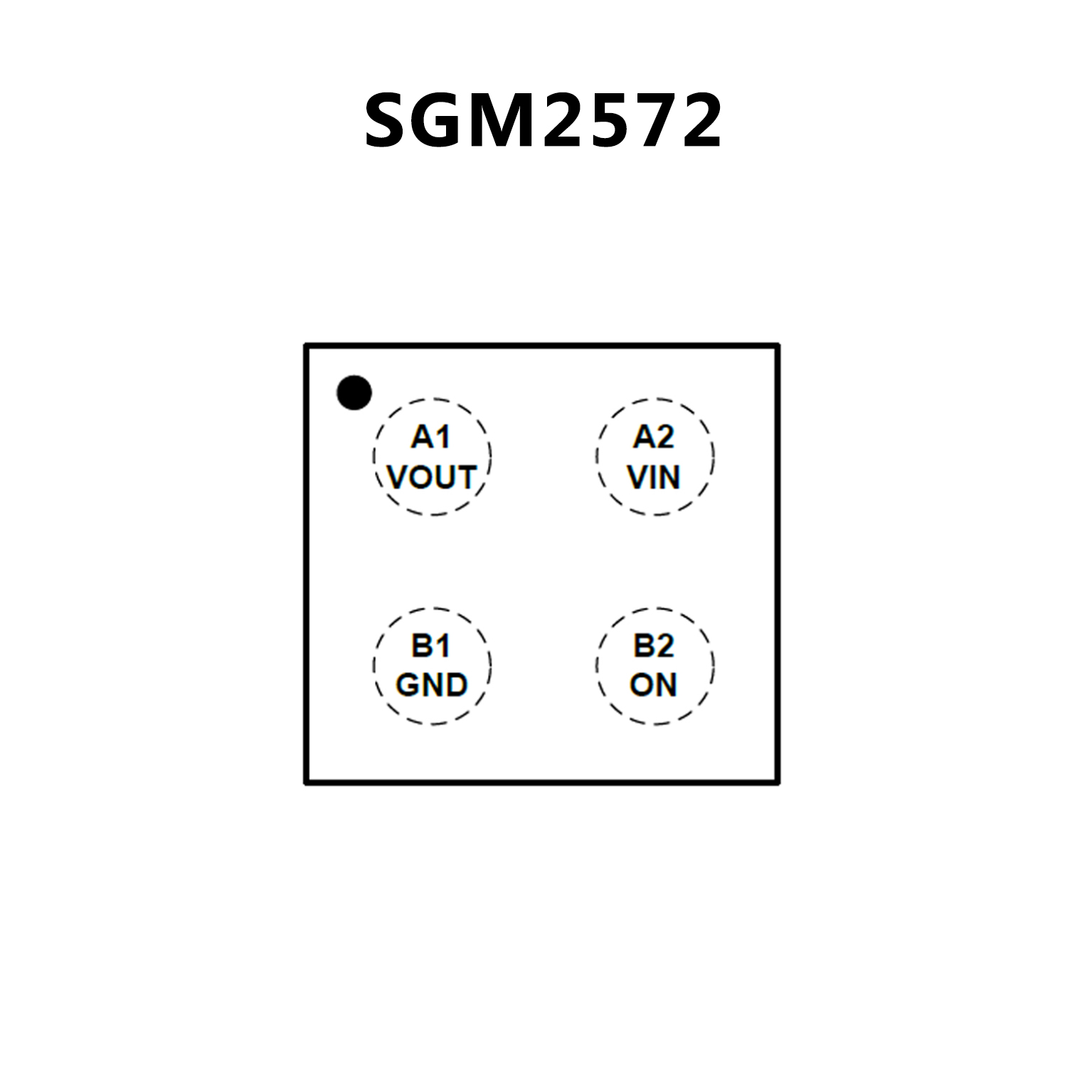

PIN CONFIGUTION
優勢替代
FEATURES
? 1.2 V – 5.5 V Operating Range
? 47 m P MOSFET at 3.3 V
? DC Current Up to 2 A
? Output Auto?discharge (NCP335)
? Active high EN pin
? WLCSP4 0.96 x 0.96 mm
? ESD Ratings: 4 kV Human Body Model, 2 kV CDM,
? 250 V Machine Model
? These are Pb?Free Devices
PIN CONFIGUTION
