5.5V, 2A, 34mΩ RON, Load Switch with Reverse Current Protection and Controlled Turn On,Replace TPS22925
FEATURES

Integrated N-MOSFET Load Switch

1V to 5.5V Input Voltage Range

Ultra-Low On-Resistance

  RON = 34mΩ at VIN = 5V

  RON = 34mΩ at VIN = 3.3V

2A Maximum Continuous Switch Current

Low Shutdown Current: 90nA (TYP)

Reverse Current Protection

Low Threshold 1.2V GPIO Control Input

Bidirectional Power Supply for Power Zone Application

Rise Time: 60μs (TYP)

Quick Output Discharge

Available in a Green WLCSP-0.8×0.8-4B Package

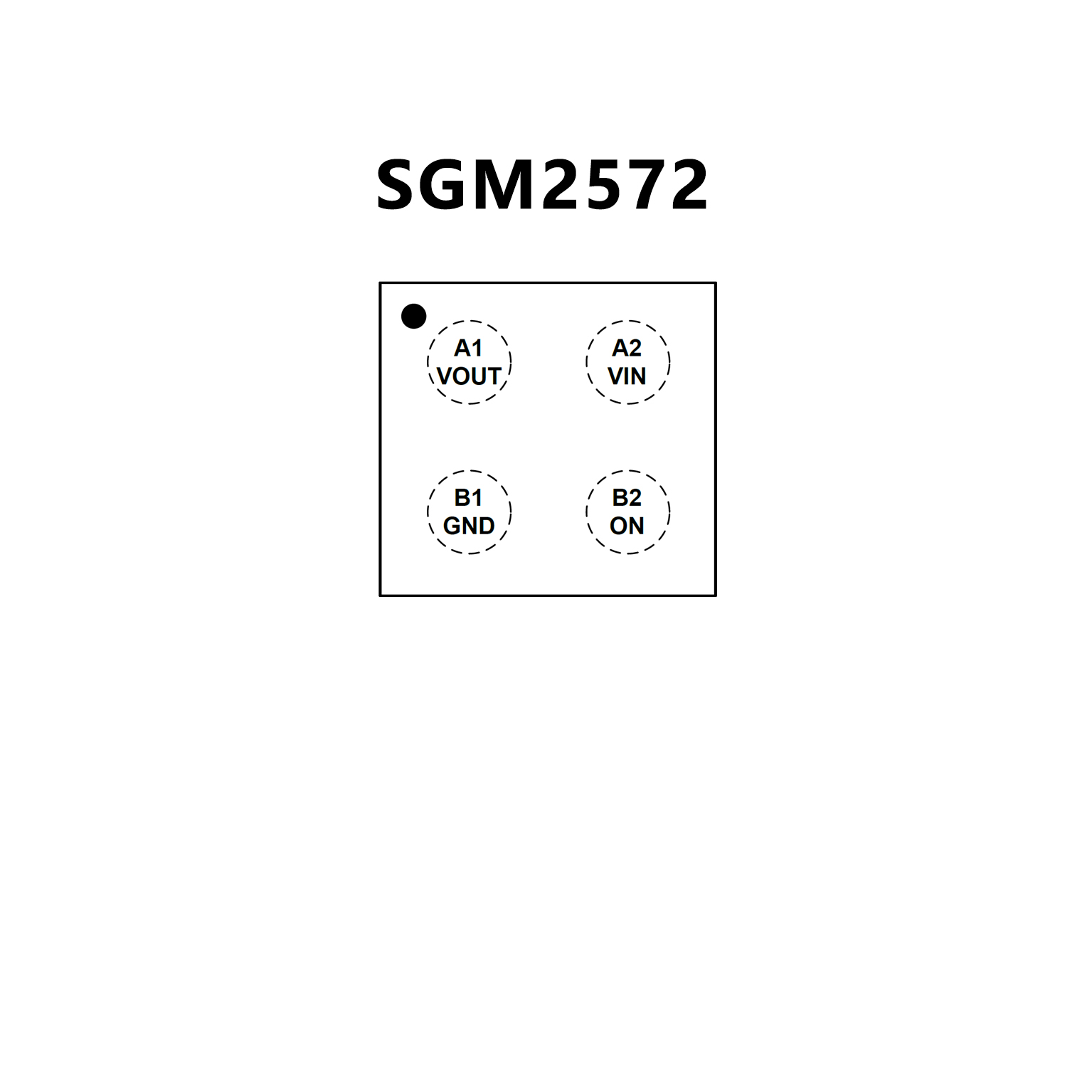

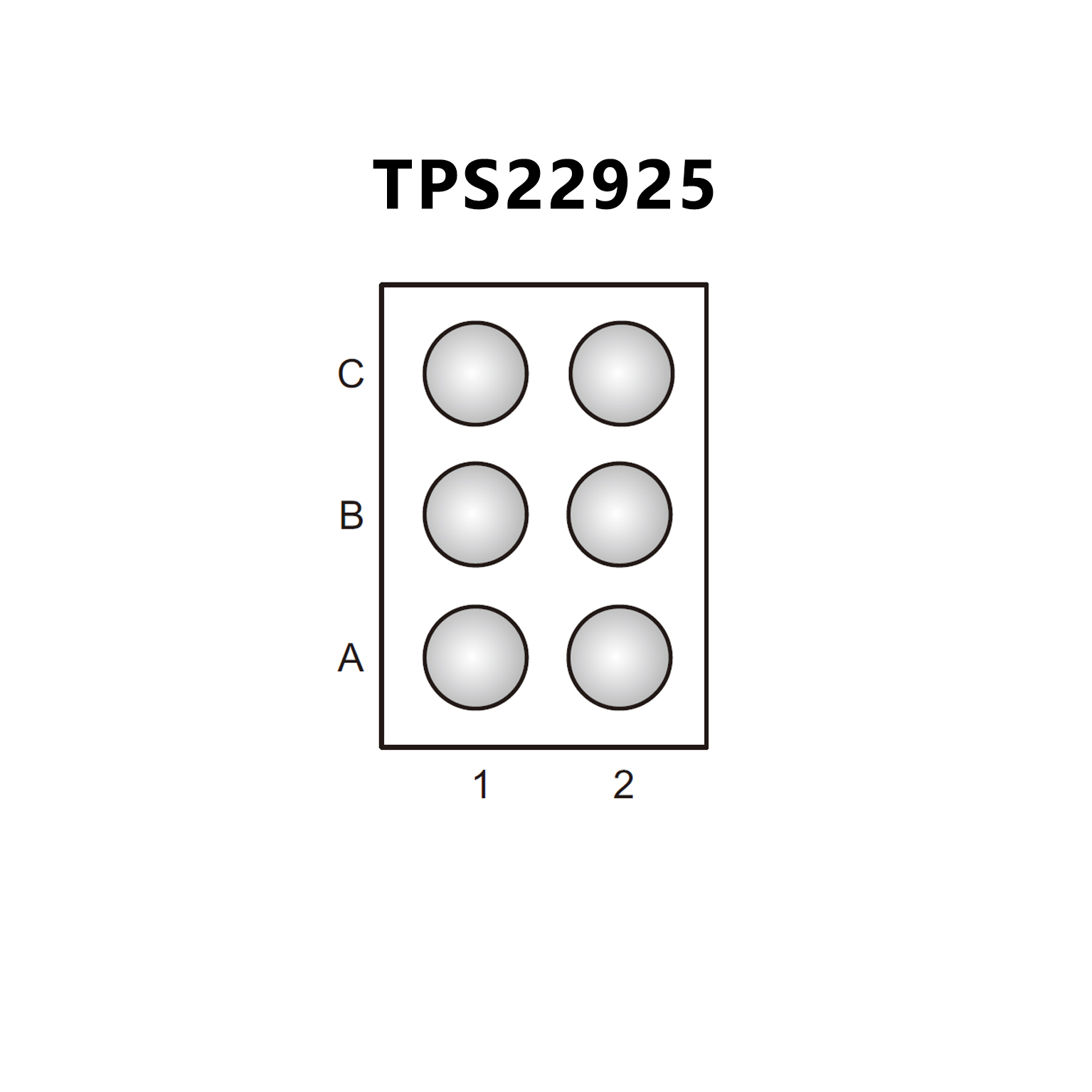

PIN CONFIGUTION
優勢替代
TPS22925 TPS22925.pdf

No.13604

FEATURES

Input Voltage Range: 0.65 V to 3.6 V

   RON = 9.2 mΩ at VIN = 3.6 V

   RON = 9.2 mΩ at VIN = 1.8 V

   RON = 10.2 mΩ at VIN = 1 V

   RON = 13.1 mΩ at VIN = 0.65 V

3-A Maximum Continuous Switch Current

Quiescent Current, IQ,VIN = 29 μA at VIN = 3.6 V

Low Control Input Threshold

  Enables 1.5-, 1.8-, 2.5-, or 3.3-V Logic

Controlled Slew Rate

   tR = 97 μs at VIN = 3.6 V (TPS22925Bx)

   tR = 810 μs at VIN = 3.6 V (TPS22925Cx)

Reverse Current Blocking (When Disabled)

Quick Output Discharge (QOD)

  (TPS22925B and TPS22925C only)

Wafer Chip Scale Package:

   0.9 mm x 1.4 mm, 0.5-mm Pitch, 0.4-mm Height

ESD Performance Tested per JESD 22

   2-kV HBM and 1-kV CDM

PIN CONFIGUTION
