5.5V, 2A, 34mΩ RON Load Switch with Reverse Current Protection,SGM2575 Replace TCK107.
SGM2575
SGM2575.pdf
SGM2575.pdfFEATURES
? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 2A
? Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.8V GPIO Control Input
? Bidirectional Power Supply for Power
ZoneApplication
? Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
? Quick Output Discharge
(SGM2575AD/SGM2575BD Only)
? Available in a Green WLCSP-0.8×0.8-4B Package

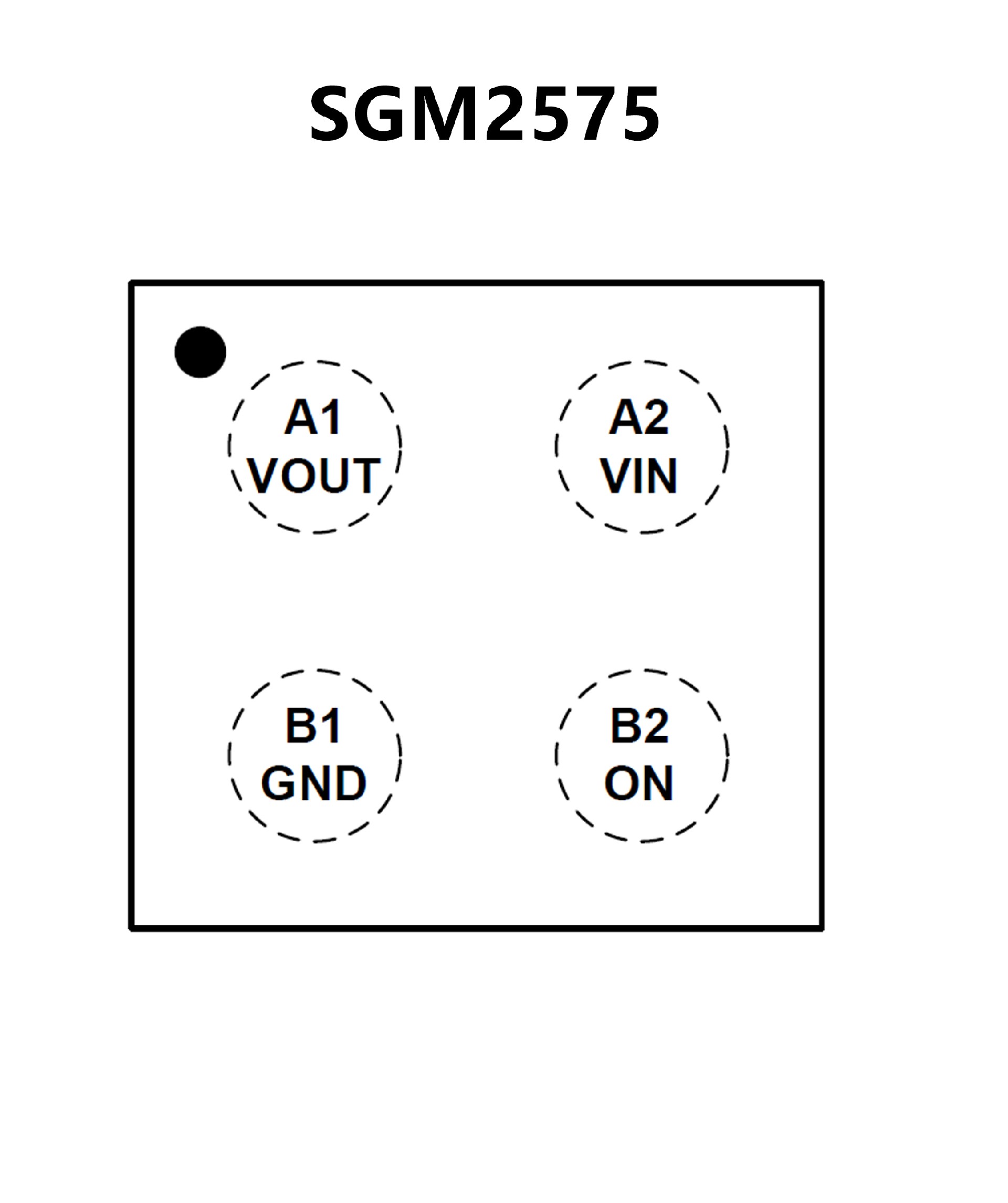

PIN CONFIGUTION
