SGM2578.pdf? Low Input Voltage: 1V to 5V
? Ultra Low On-State Resistance (RON)
RON = 54mΩ at VIN = 5.0V
RON = 54mΩ at VIN = 3.6V
RON = 58mΩ at VIN = 2.5V
RON = 74mΩ at VIN = 1.8V
RON = 84mΩ at VIN = 1.2V
RON = 84mΩ at VIN = 1.0V
? 1A Maximum Continuous Switch Current
? Quiescent Current: 5μA (TYP)
? Shutdown Current: < 1.5μA
? Low Control Input Thresholds Enable
Use of
Low-Voltage Logic
? Controlled Slew Rate to Avoid Inrush Currents
? Quick Output Discharge (QOD)
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report

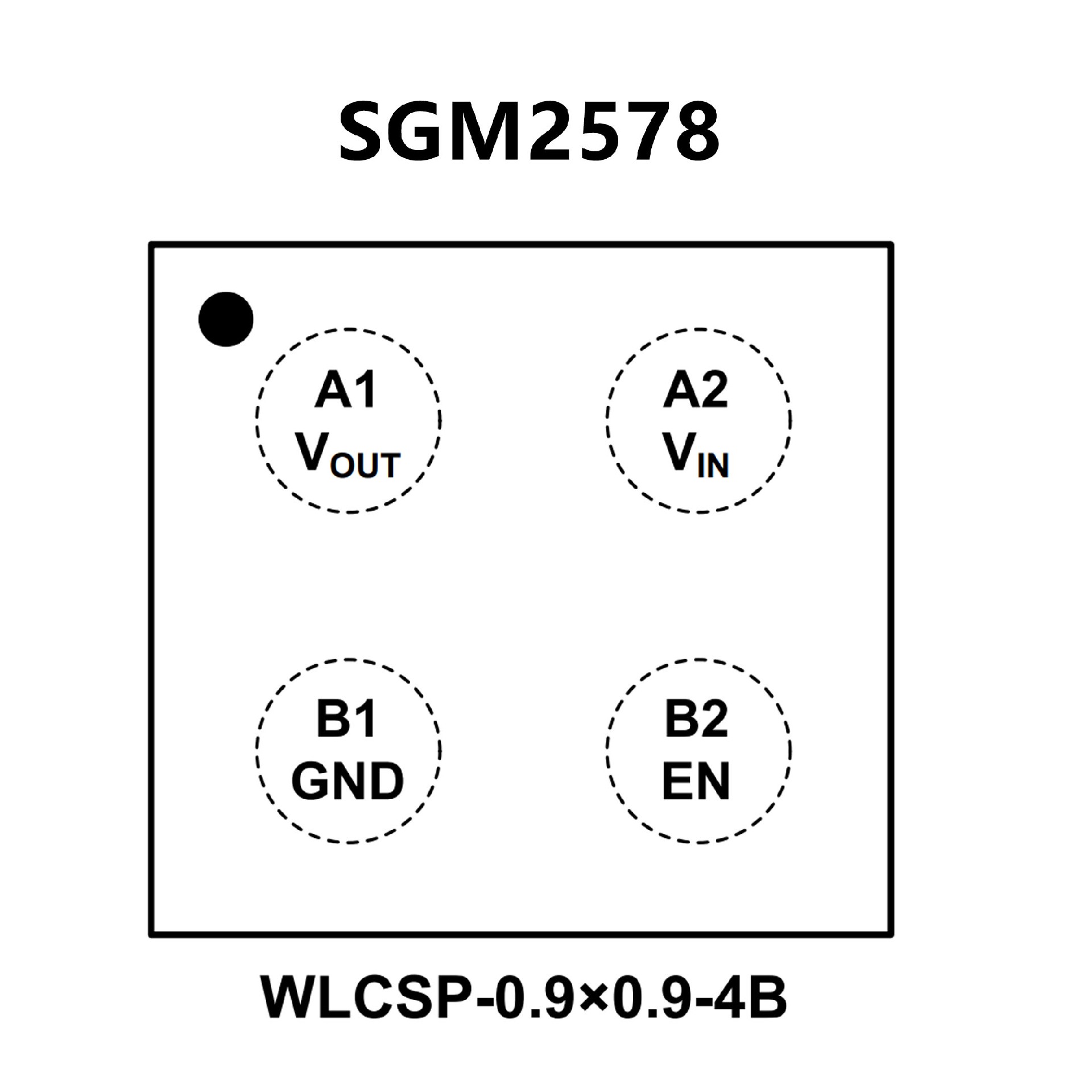

? Available in a Green WLCSP-0.9×0.9-4B Packag
? 1.2 V to 5.5 V Input Voltage Operating Range
? Typical RON:
45 mΩ at VIN = 5.5 V
55 mΩ at VIN = 3.3 V
90 mΩ at VIN = 1.8 V
185 mΩ at VIN = 1.2 V
? Slew Rate Control with tR:
100μs
? Output Discharge Function on FPF1204
? Low <1.5μA Quiescent Current
? ESD Protected: Above 7 kV HBM, 2 kV CDM
GPIO / CMOS?Compatible Enable Circuitry

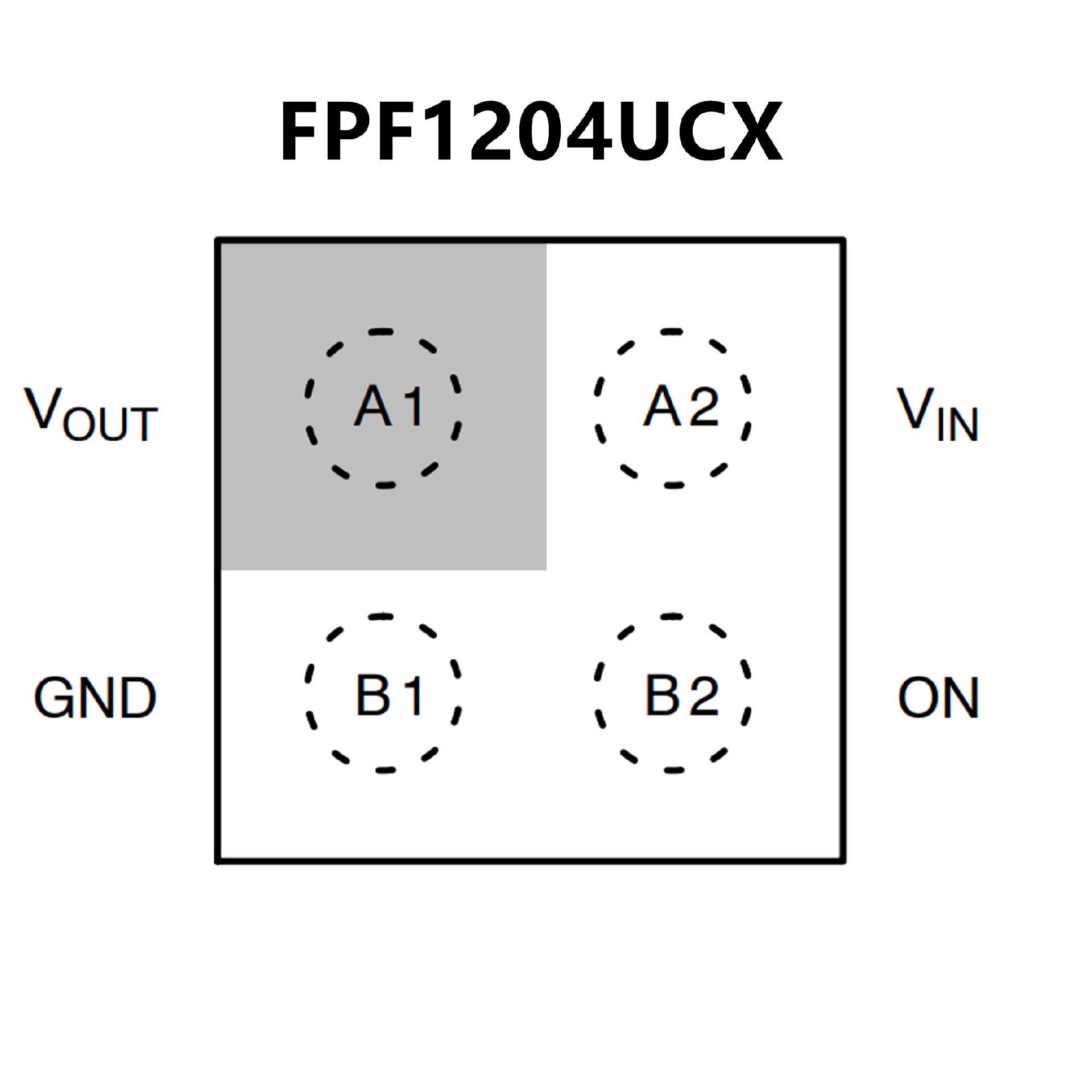

? 4?Bump, WLCSP 0.76 mm x 0.76 mm, 0.4 mm Pitch
? These are Pb?Free Devices
