SGM2596.pdf? Input Voltage Range: 0.6V to VBIAS
? VBIAS Voltage Range: 2.5V to 5.7V
? Dual-Channel Load Switch
? On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
? Continuous Current: 6A (MAX)/Channel
? Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
? Programmable Output Ramp-Up Time
? Thermal Shutdown
? SGM2596D: Quick Output Discharge (QOD)
? -40℃ to +105℃ Operating Temperature Range

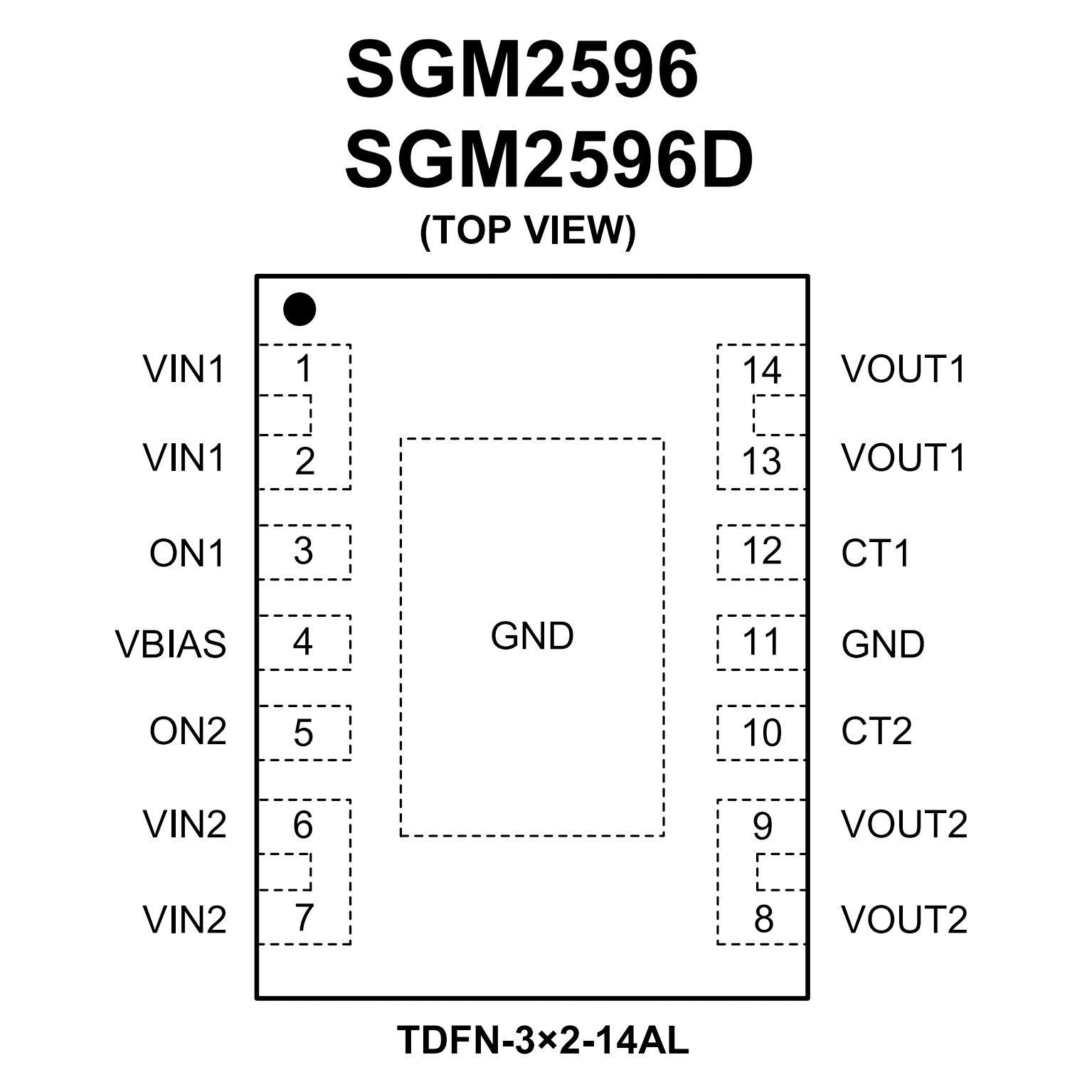

? Available in a Green TDFN-3×2-14AL Package

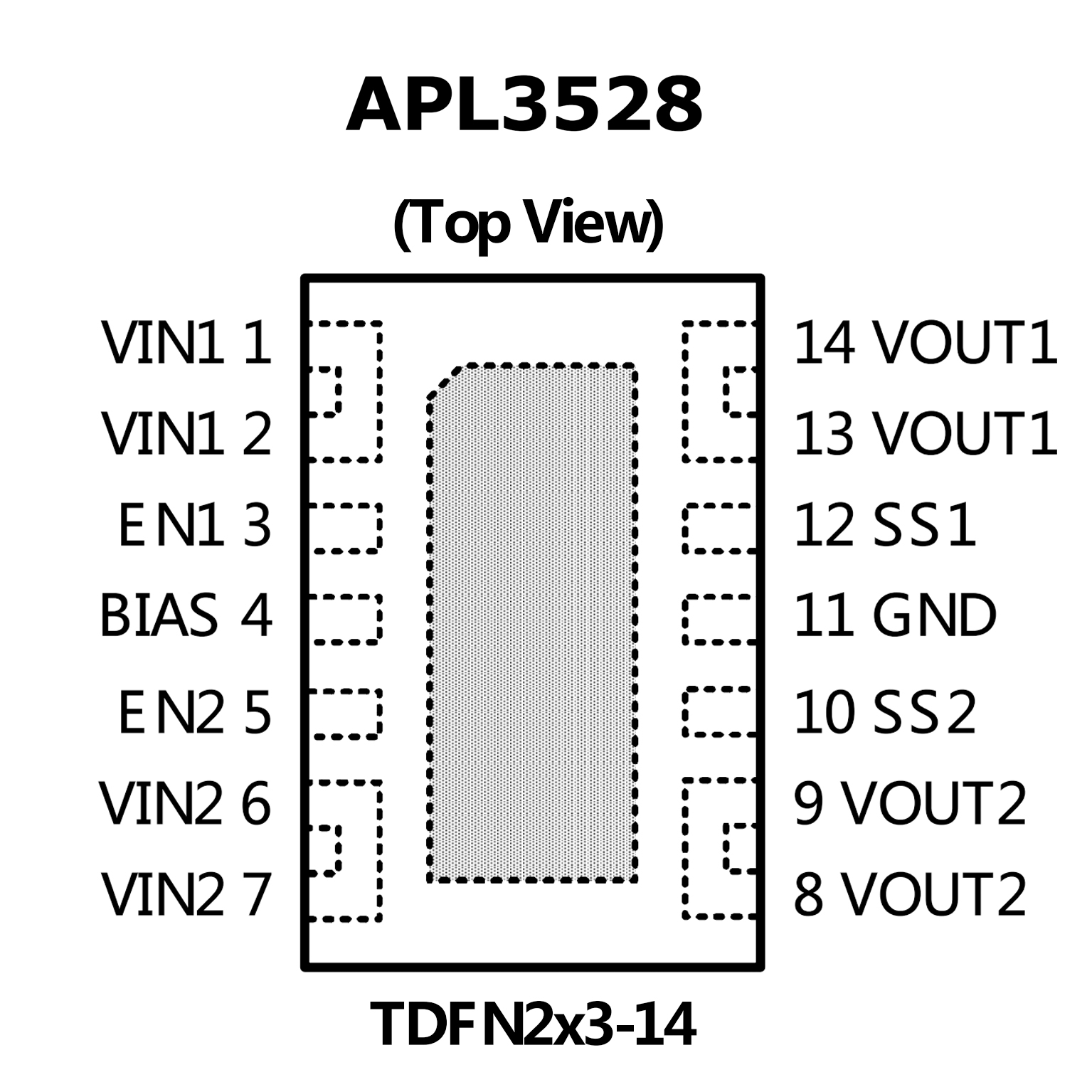

? 20mW(Typical) On-resistance per Channel
? 6A Continuous Current
? Soft Start Time Programmable by External
Capacitor
? Wide Input Voltage Range (VIN): 0.8V to 5.5V
? Supply Voltage Range (VBIAS): 3V to 5.5V
? Output Discharge when Switch Disabled
? Reverse Current Blocking when Switch Disabled
? Over-Temperature Protection · Enable Input
? Lead Free and Green Devices Available (RoHS
Compliant)
