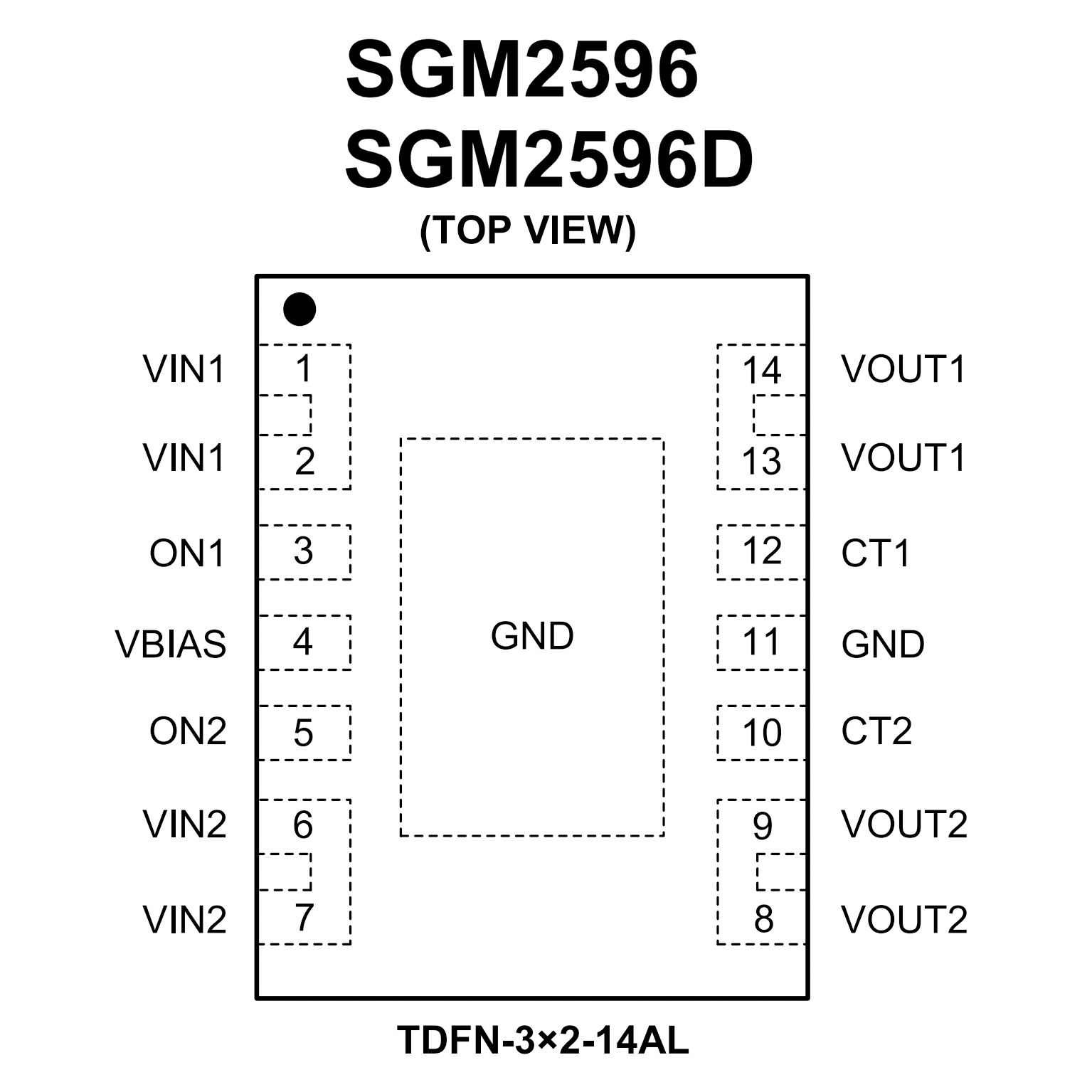

SGM2596.pdf? Input Voltage Range: 0.6V to VBIAS
? VBIAS Voltage Range: 2.5V to 5.7V
? Dual-Channel Load Switch
? On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
? Continuous Current: 6A (MAX)/Channel
? Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
? Programmable Output Ramp-Up Time
? Thermal Shutdown
? SGM2596D: Quick Output Discharge (QOD)
? -40℃ to +105℃ Operating Temperature Range
? Available in a Green TDFN-3×2-14AL Package

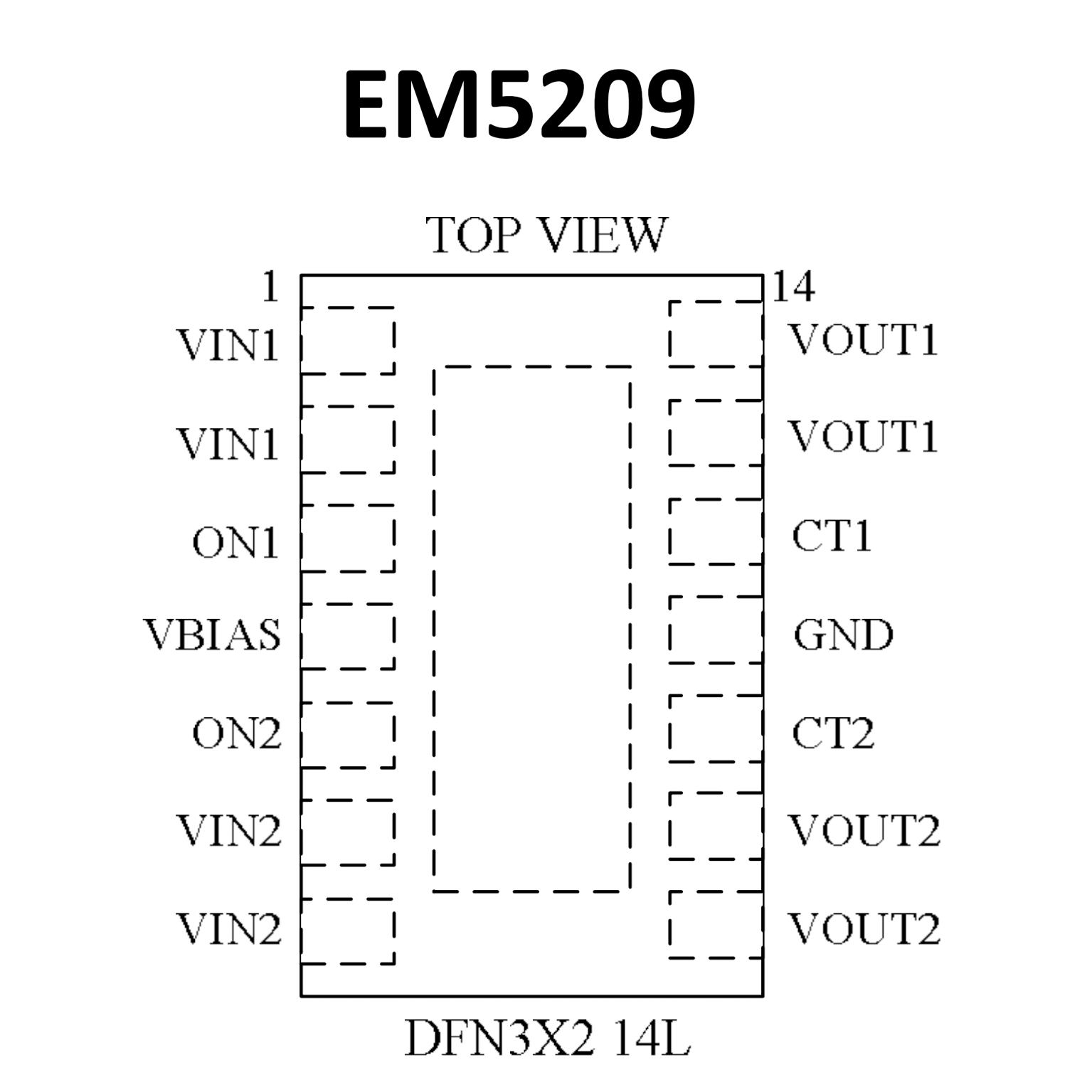

? Integrated dual channel load switch
? Input voltage range : 0.8V to 5.5V
? Ultra low RON resistance 20mΩ per channel
? 6A maximum continuous switch current per
channel
? Low quiescent current 75uA (dual channel)
? Adjustable output rising time
? Quick Output Discharge (QOD)
? DFN3X2 14-pin package with Thermal Pad
? Bias voltage supports : 2.5V and 5.5V
? Over Temperature Protection
