SGM2596.pdf? Input Voltage Range: 0.6V to VBIAS
? VBIAS Voltage Range: 2.5V to 5.7V
? Dual-Channel Load Switch
? On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
? Continuous Current: 6A (MAX)/Channel
? Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
? Programmable Output Ramp-Up Time
? Thermal Shutdown
? SGM2596D: Quick Output Discharge (QOD)
? -40℃ to +105℃ Operating Temperature Range

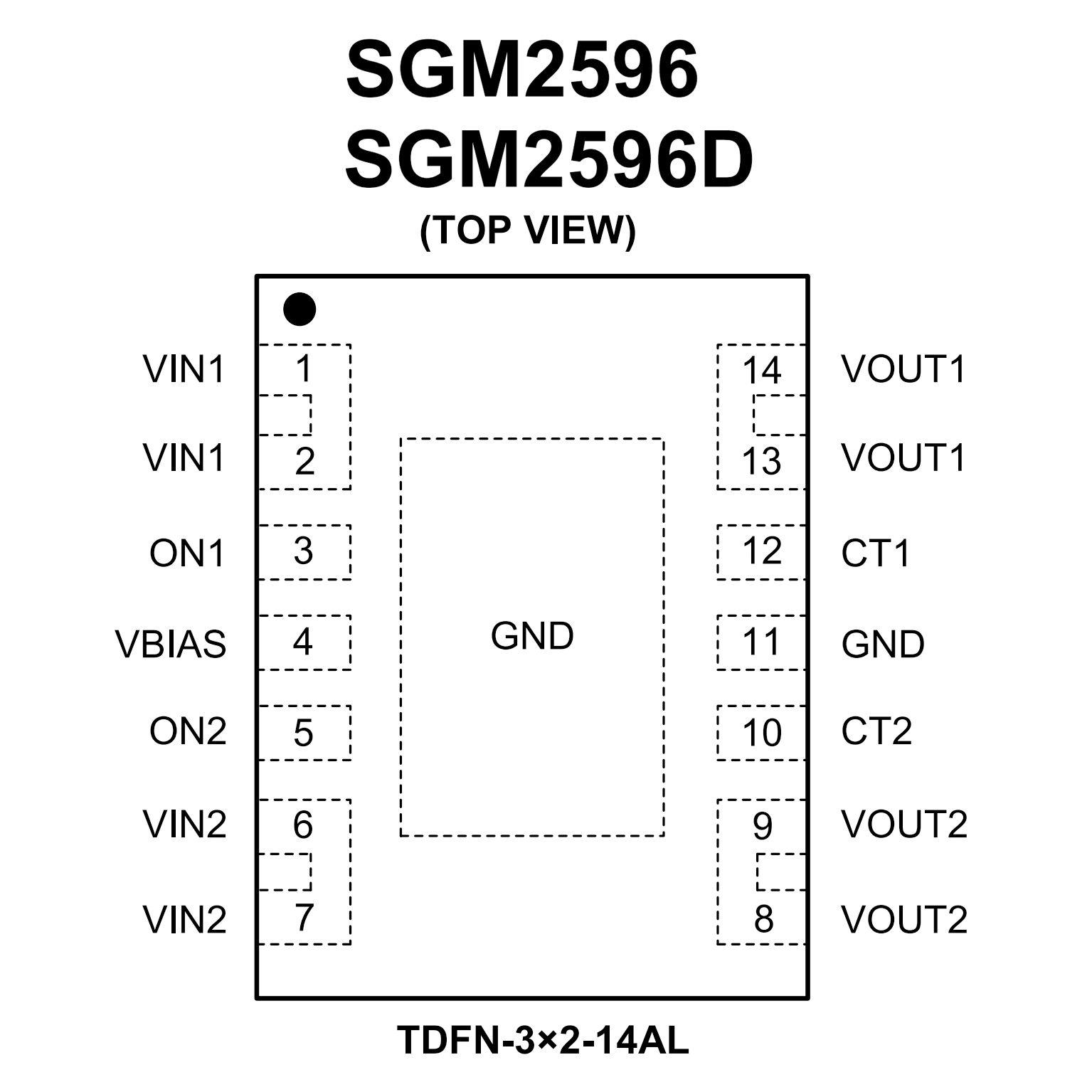

? Available in a Green TDFN-3×2-14AL Package
? Integrated Dual Channel Load Switch
? Input Voltage Range: 0.8V to 5.5V
? Dual Ultra-low ON-Resistance (16mΩ)
RDS(on) = 17mΩ at VIN = 5V (VBIAS = 5V)
RDS(on) = 16mΩ at VIN = 3.6V (VBIAS = 5V)
RDS(on) = 16mΩ at VIN = 1.8V (VBIAS = 5V)
RDS(on) = 15mΩ at VIN = 0.8V (VBIAS = 5V)
? 6A Continuous Switch Current per channel
? Low Quiescent Current
65μA (Both Channel)
55μA (Single Channel)
? Low Threshold Control Inputs
? Adjustable Slew-rate Control
? Quick Output Discharge Transistor

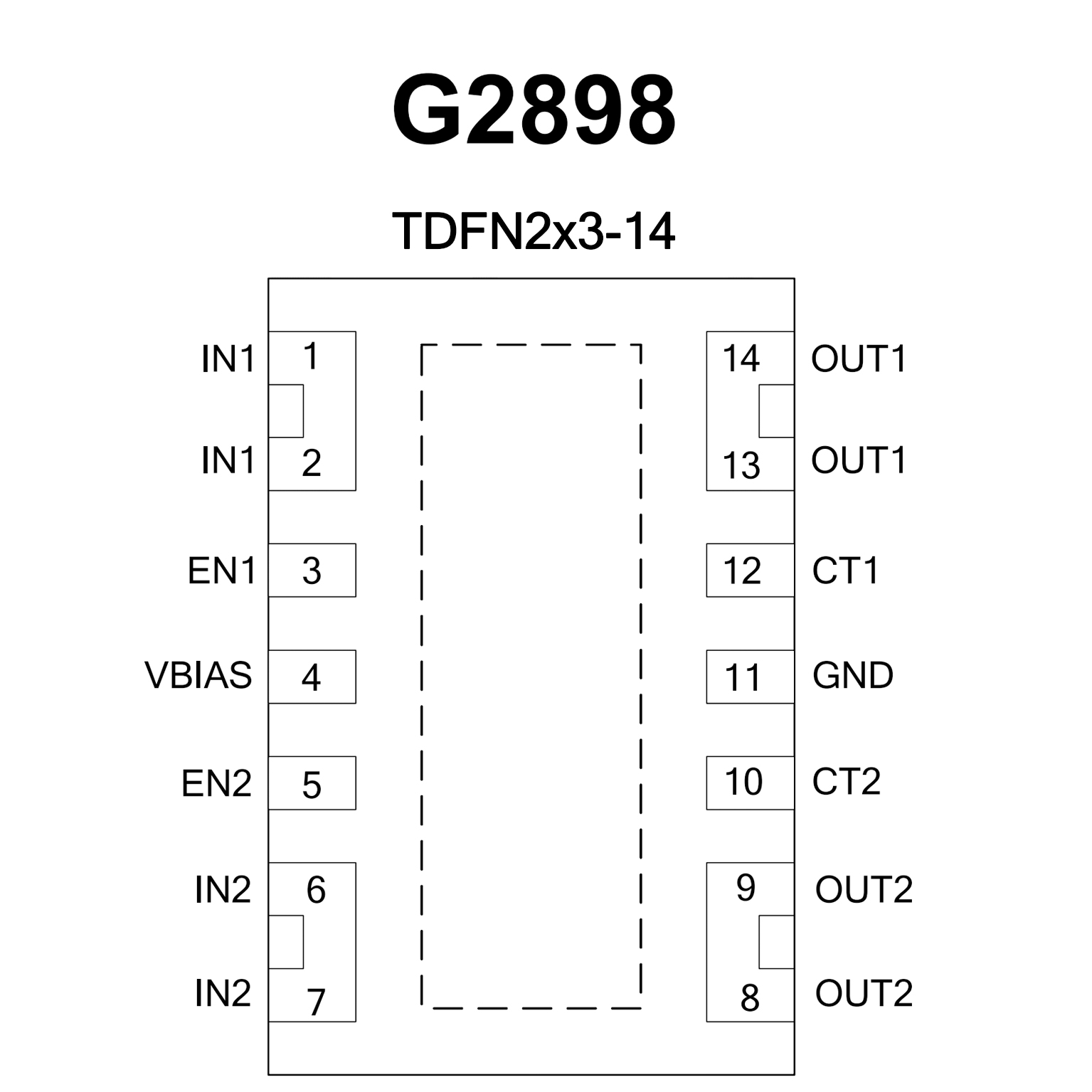

? 14 Pin TDFN Package with Thermal Pad
