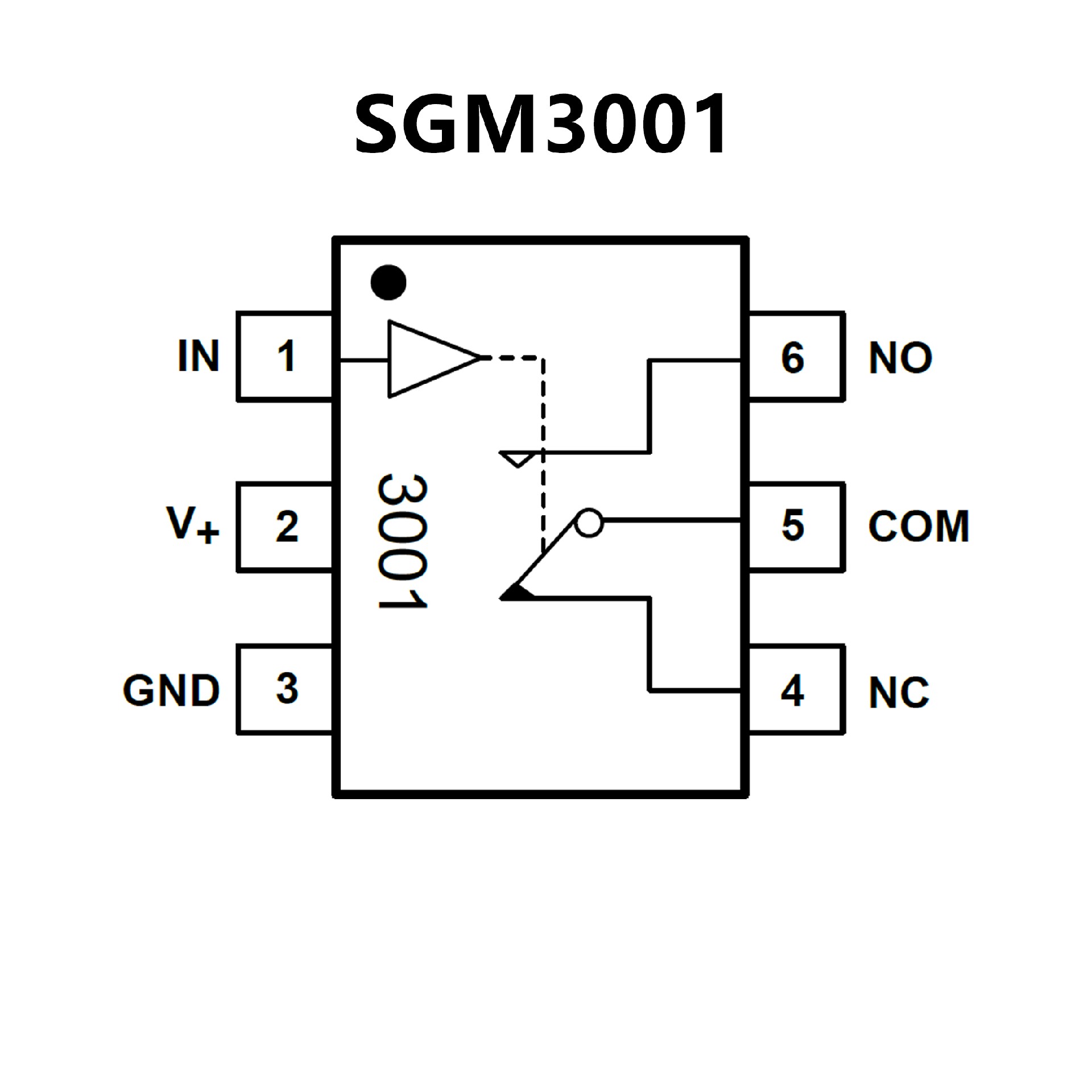

SGM3001XC6.pdf? Low Voltage Operation Range: 1.8V to 5.5V
? Low On-Resistance: 2.5Ω (TYP)
? Low On-Resistance Flatness
? -3dB Bandwidth: 120MHz
? Fast Switching Times
tON 11ns
tOFF 30ns (SGM3001)
tOFF 8ns (SGM3002)
? Rail-to-Rail Operation
? Typical Power Consumption (< 0.01μW)
? TTL/CMOS Compatible
? Microsize Packages
SGM3001 Available in a Green SC70-6 Package
SGM3002 Available in a Green MSOP-10 Package

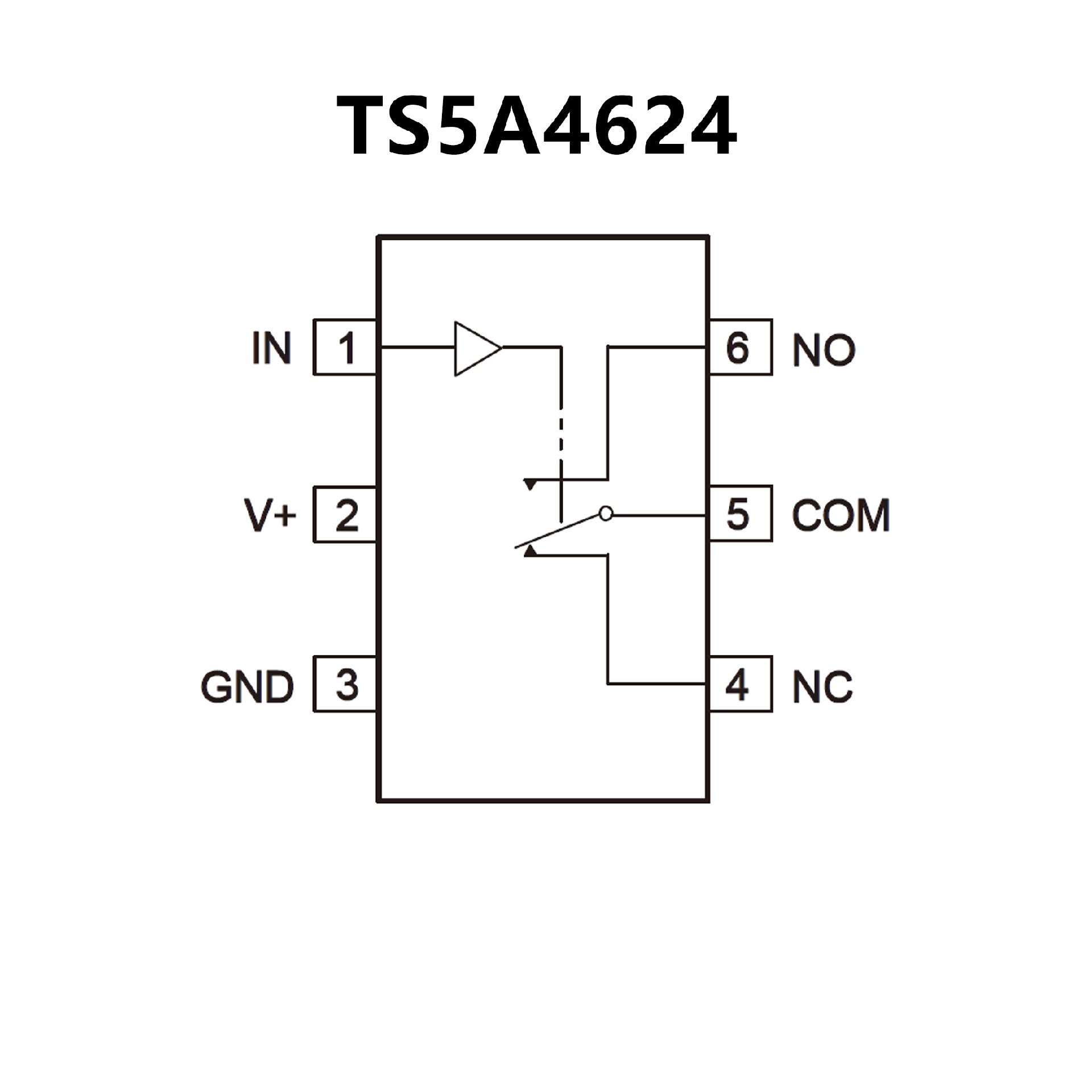

? Isolation in Power-Down Mode, V+ = 0
? Specified Break-Before-Make Switching
? Low ON-State Resistance (1 ?)
? Control Inputs Are 5.5-V Tolerant
? Low Charge Injection
? Excellent ON-State Resistance Matching
? Low Total Harmonic Distortion (THD)
? 1.65-V to 5.5-V Single-Supply Operation
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
? ESD Performance Tested Per JESD
2000-V Human-Body Model
(A114-B, Class II)
1000-V Charged-Device Model (C101)
