Low noise, High PSRR, High speed, CMOS LDO,SGM3036 Replace WL2836D.
SGM3036.pdf優勢替代
FEATURES
? Input Voltage Range :1.4V~5.5V
? Output Voltage Range : 0.9V~3.3V
? Output current : 300mA
? Quiescent current : 50μA Typ.
? Shut-down current : < 1μA
? Dropout voltage : 140mV @ IOUT=0.3A
? PSRR : 78dB @ 1kHz, VOUT=1.8V
? Low Output Voltage Noise : 13×VOUT μVRMS
? Output Voltage Tolerance :±1% @ VOUT>2V
? Recommend capacitor : 1μF
? Thermal-Overload and Short-Circuit Protection

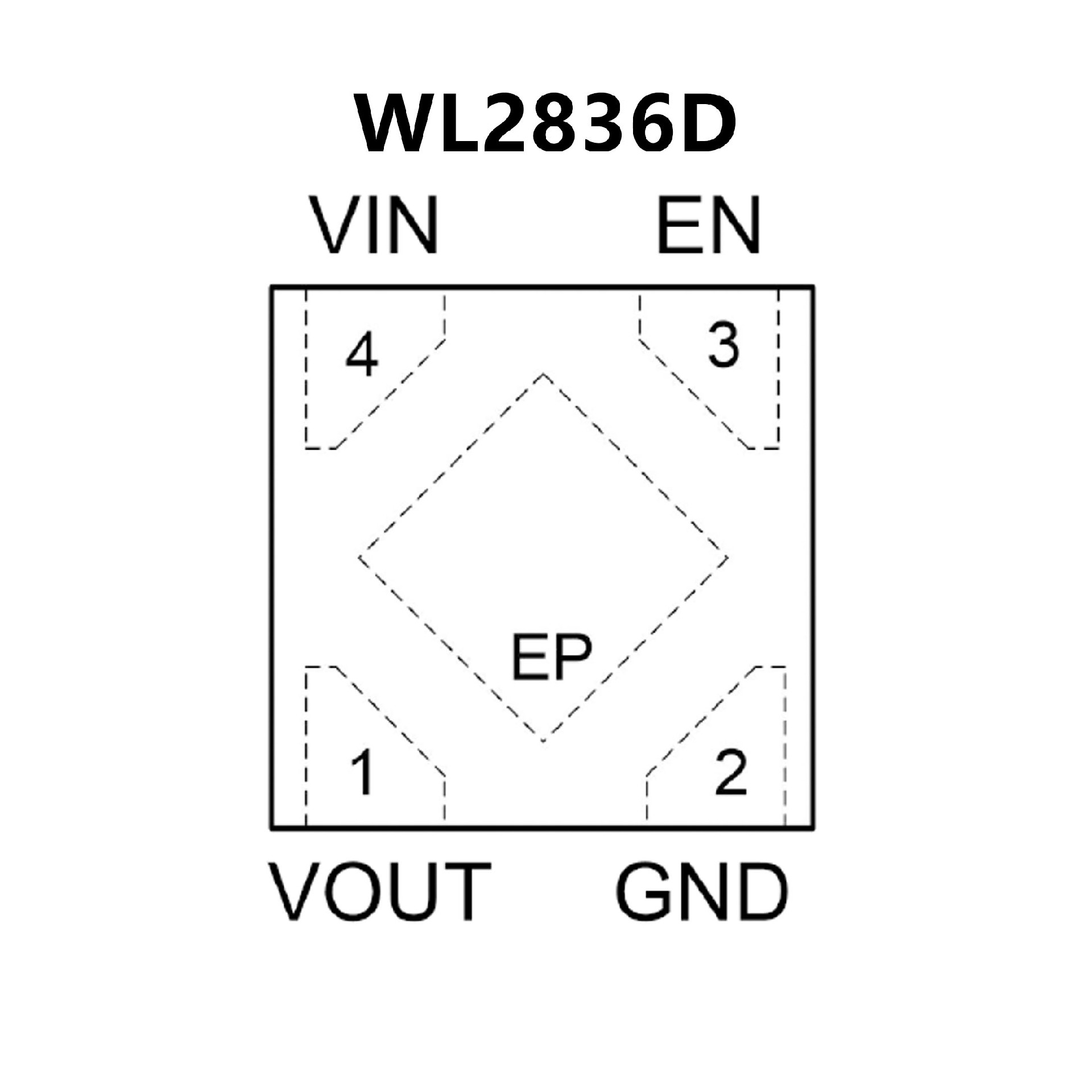

PIN CONFIGUTION
