1MHz, 60μA, Rail-to-Rail I/O CMOS Operational Amplifiers, SGM321 Replace LMV321IDBVR.
SGM321
SGM321.pdf
SGM321.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 1MHz
? Very Low Input Bias Currents: 10pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range:-0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 60μA/Amplifier
? Small Packaging
SGM321 Available in SOT23-5 and SC70-5
SGM358 Available in SO-8, MSOP-8 and DIP-8
SGM324 Available in SO-14 and TSSOP-14

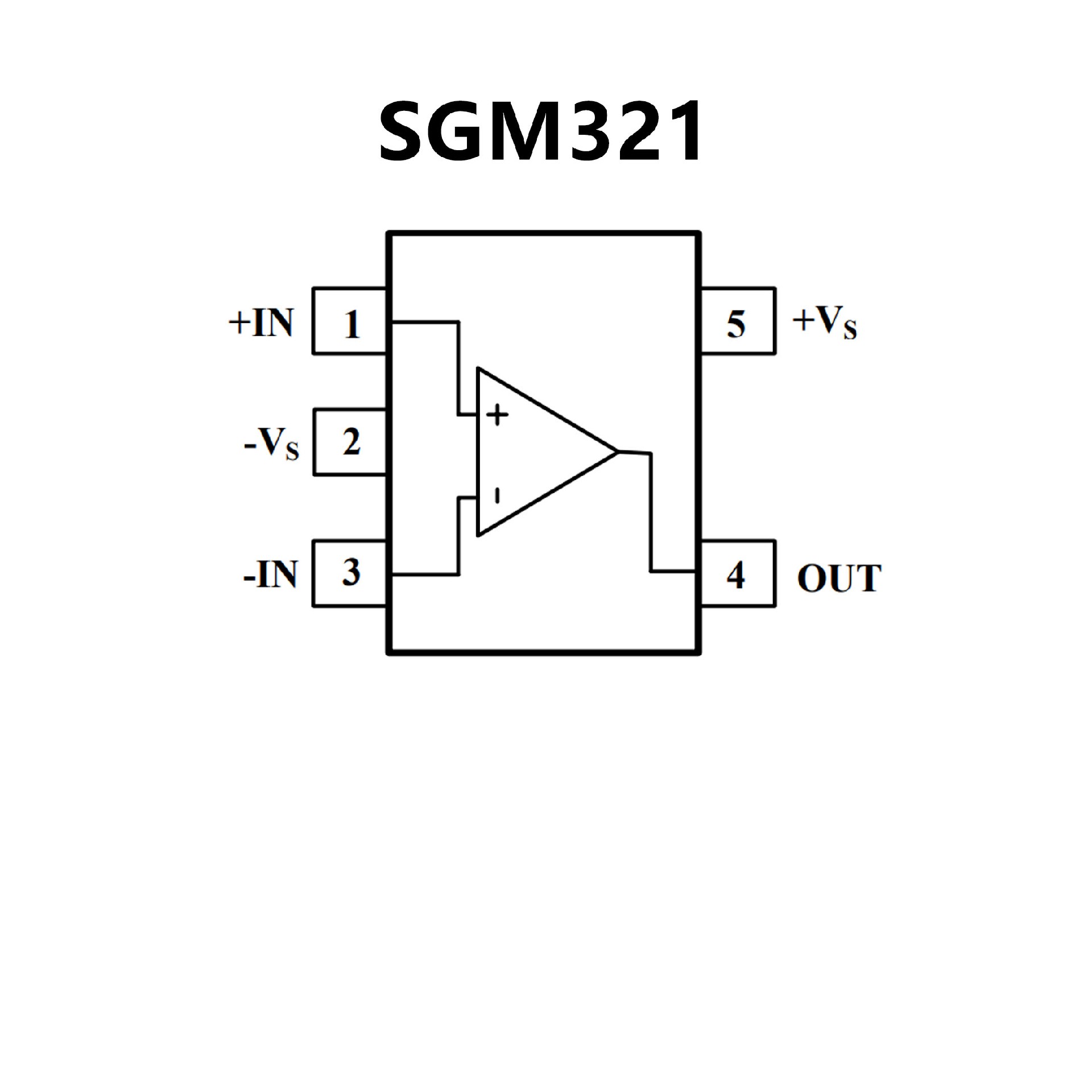

PIN CONFIGUTION
優勢替代
FEATURES
? Single-Supply Operation from +2.2V ~ +5.5V
? Rail-to-Rail Input / Output
? Gain-Bandwidth Product: 1MHz (Typ.)
? Low Input Bias Current: 10pA (Typ.)
? Low Offset Voltage: 5mV (Max.)
? Quiescent Current: 40μA (Typ.)
? Operating Temperature: -40°C ~ +125°C
? Available in SOT23-5

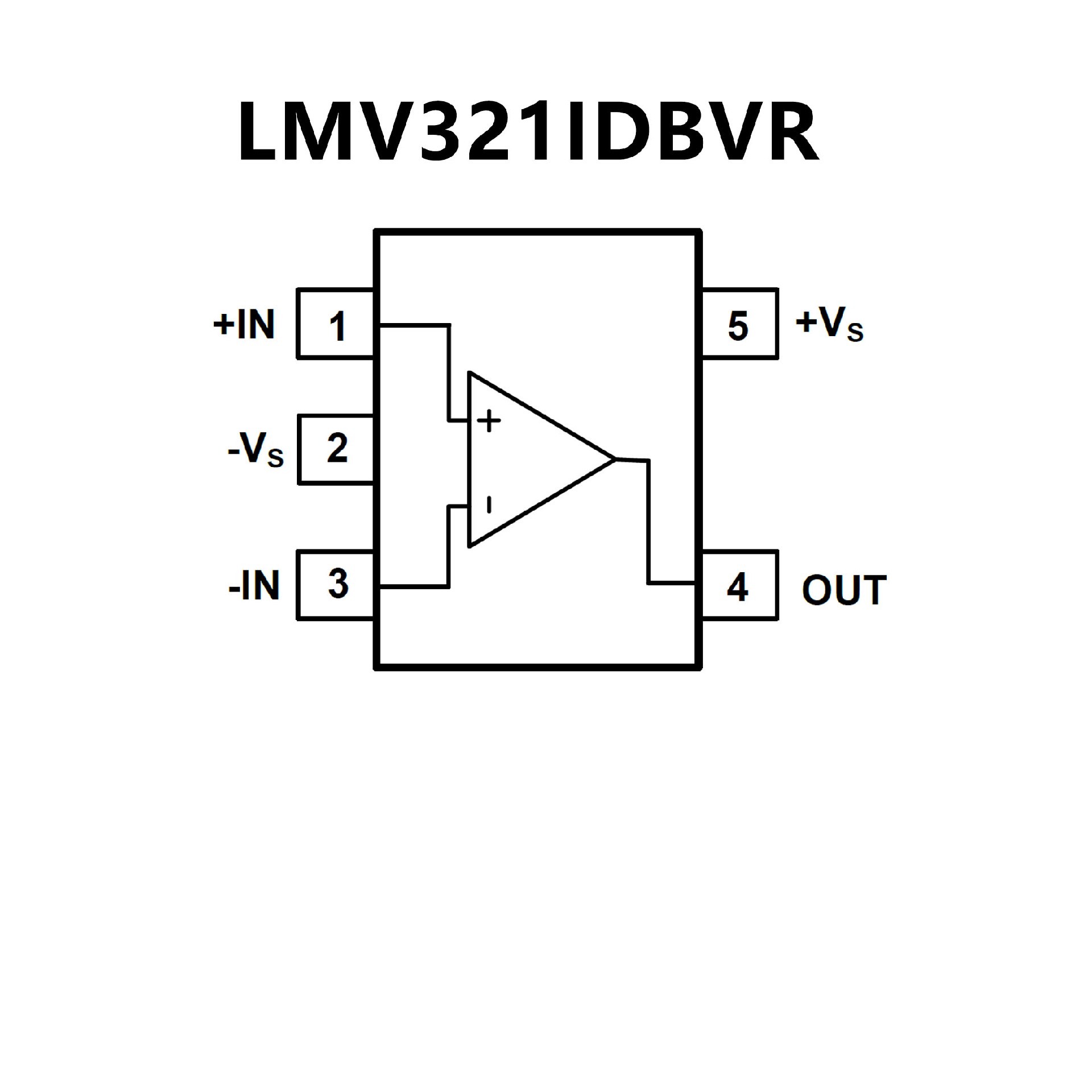

PIN CONFIGUTION
