1MHz, 60μA, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM324YS14/TR Replace MCP6004
SGM324
SGM324.pdf
SGM324.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1MHz
? Very Low Input Bias Current: 10pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 60μA/Amplifier
? Small Packaging:
SGM321 Available in SOT-23-5 and SC70-5
PIN CONFIGUTION
優勢替代
FEATURES
? Available in SC-70-5 and SOT-23-5 packages
? Gain Bandwidth Product: 1 MHz (typical)
? Rail-to-Rail Input/Output
? Supply Voltage: 1.8V to 6.0V
? Supply Current: IQ = 100 μA (typical)
? Phase Margin: 90° (typical)
? Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
? Available in Single, Dual and Quad Packages

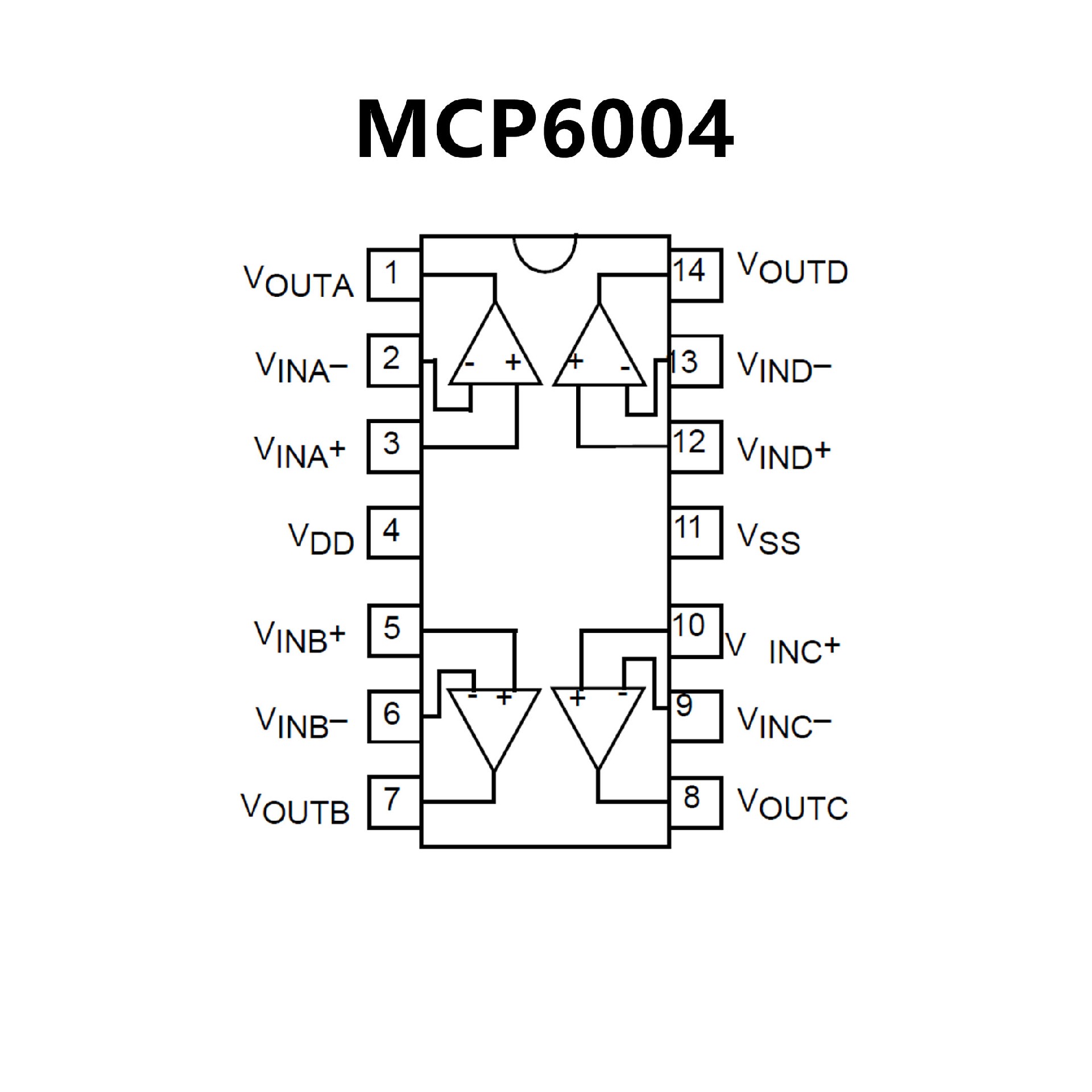

PIN CONFIGUTION
