Quad spdt wide-bandwidth video switch with low on-state resistance, SGM330 Replace TS5V330.
SGM330.pdf優勢替代
FEATURES
? Low Differential Gain and Phase
(DG = 0.64%, DP = 0.1 Degrees Typ)
? Wide Bandwidth (BW = 300 MHz Min)
? Low Crosstalk (XTALK = –63 dB Typ)
? Low Power Consumption
(ICC = 3 mA Max)
? Bidirectional Data Flow With Near-Zero
Propagation Delay
? Low ON-State Resistance (ron = 3 Ω Typ)
? VCC Operating Range From 4.5 V to 5.5 V
? Ioff Supports Partial-Power-Down Mode
Operation
? Data and Control Inputs Provide Undershoot
Clamp Diode
? Control Inputs Can Be Driven by TTL or
5-V/3.3-V CMOS Outputs
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Performance Tested Per JESD 22
1000-V Charged-Device Model (C101)
? Suitable for Both RGB and Composite-Video
Switching

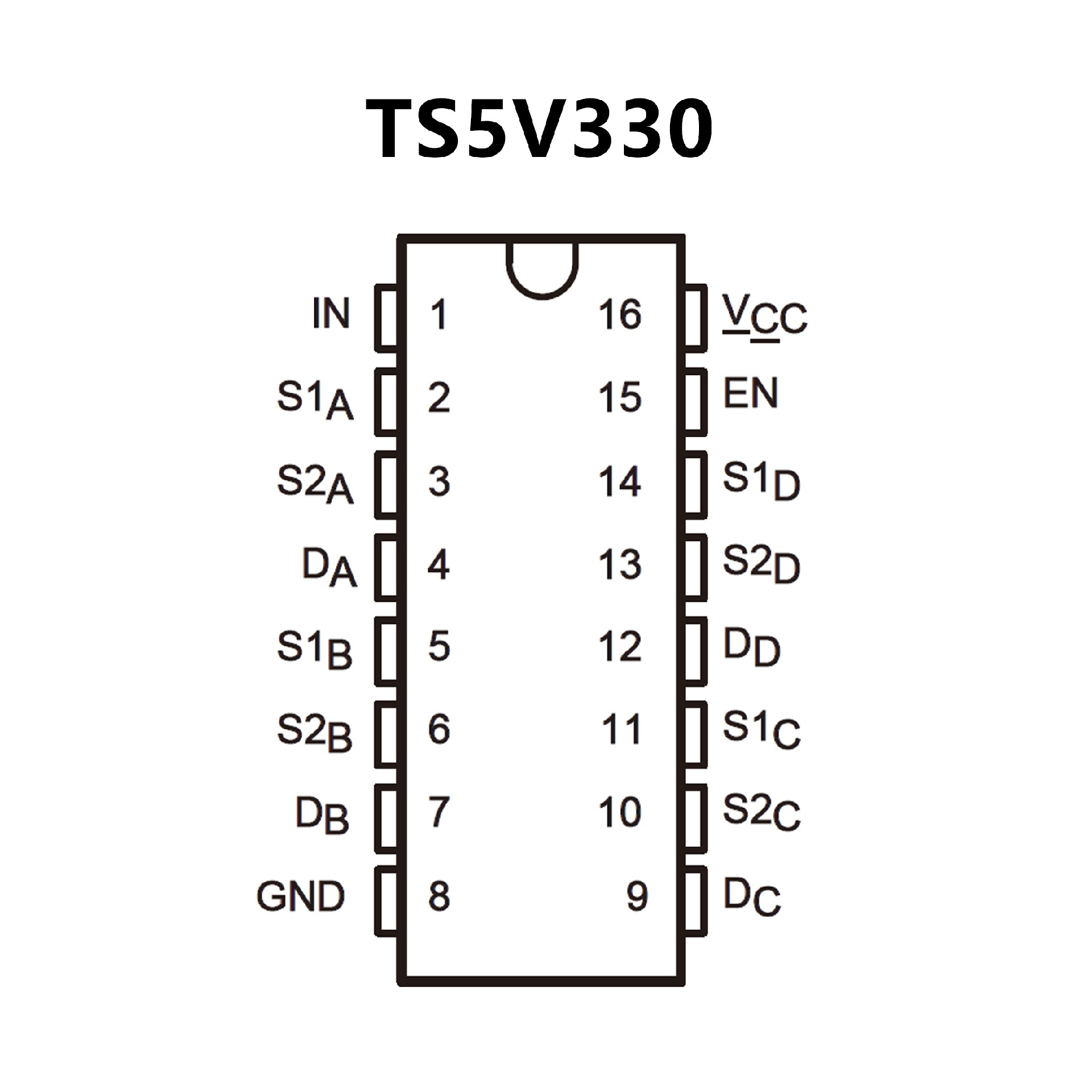

PIN CONFIGUTION
