SGM38046.pdf? 2.7V to 5.5V Input Voltage Range
? 3.3V AVDD Output Voltage
? 2.8V to 4.6V OVDD (Default: 3.3V ± 1%, 0.1V/Step)
? -4.0V to -0.6V OVSS (Default: -3.3V ± 1%, 0.1V/Step)
? Up to 50mA OVDD & OVSS Combined Output
Current Capability
? Excellent Line and Load Regulation
? Low Ripple and Excellent Transient Response
? Soft-Start
? True Output Load Disconnect from Input
? UVLO, OCP, SCP, OVP and OTP Protections
? Power-Save Mode for Light-Load Efficiency
? Shutdown Current: 0.1μA (TYP)

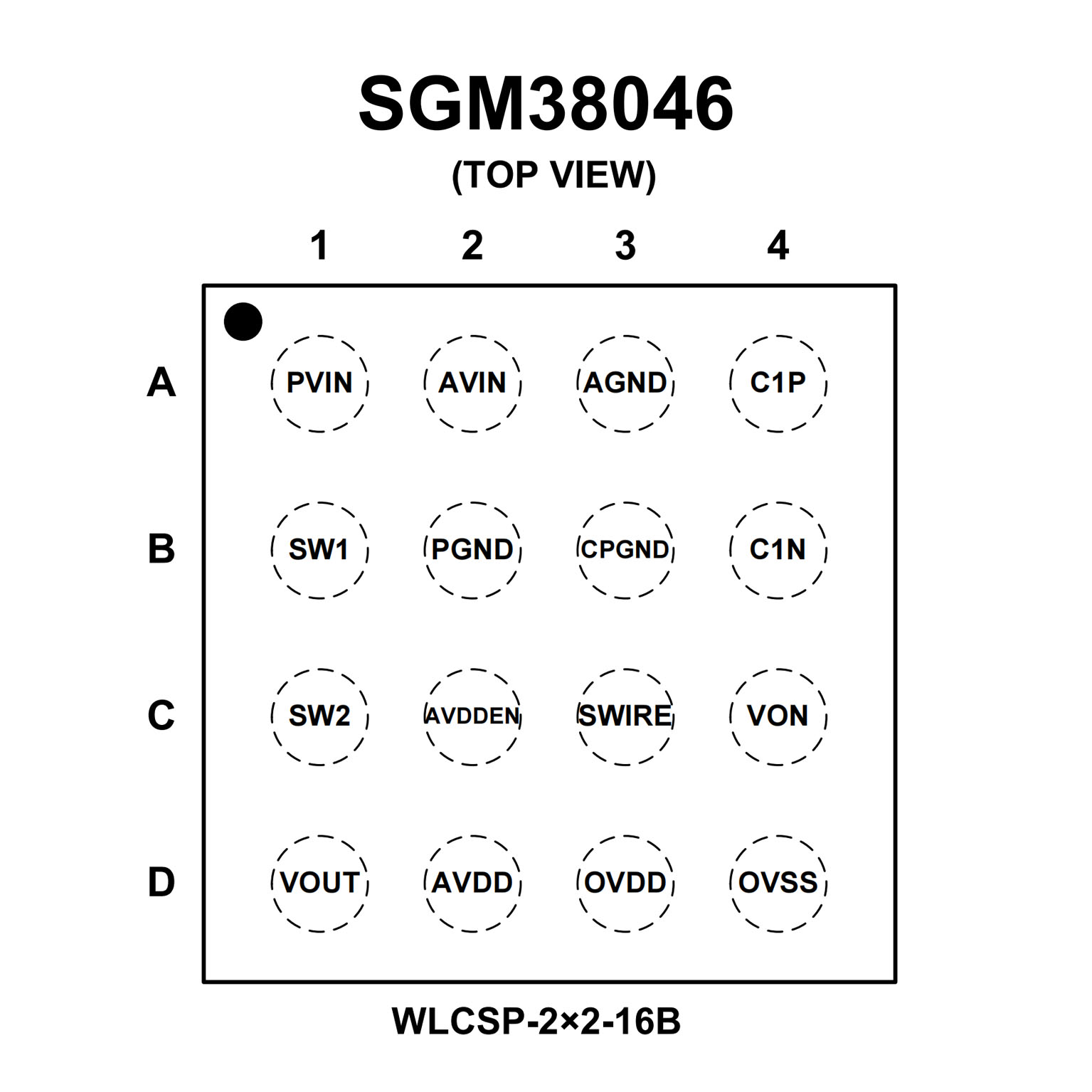

? Available in a Green WLCSP-2×2-16B Package

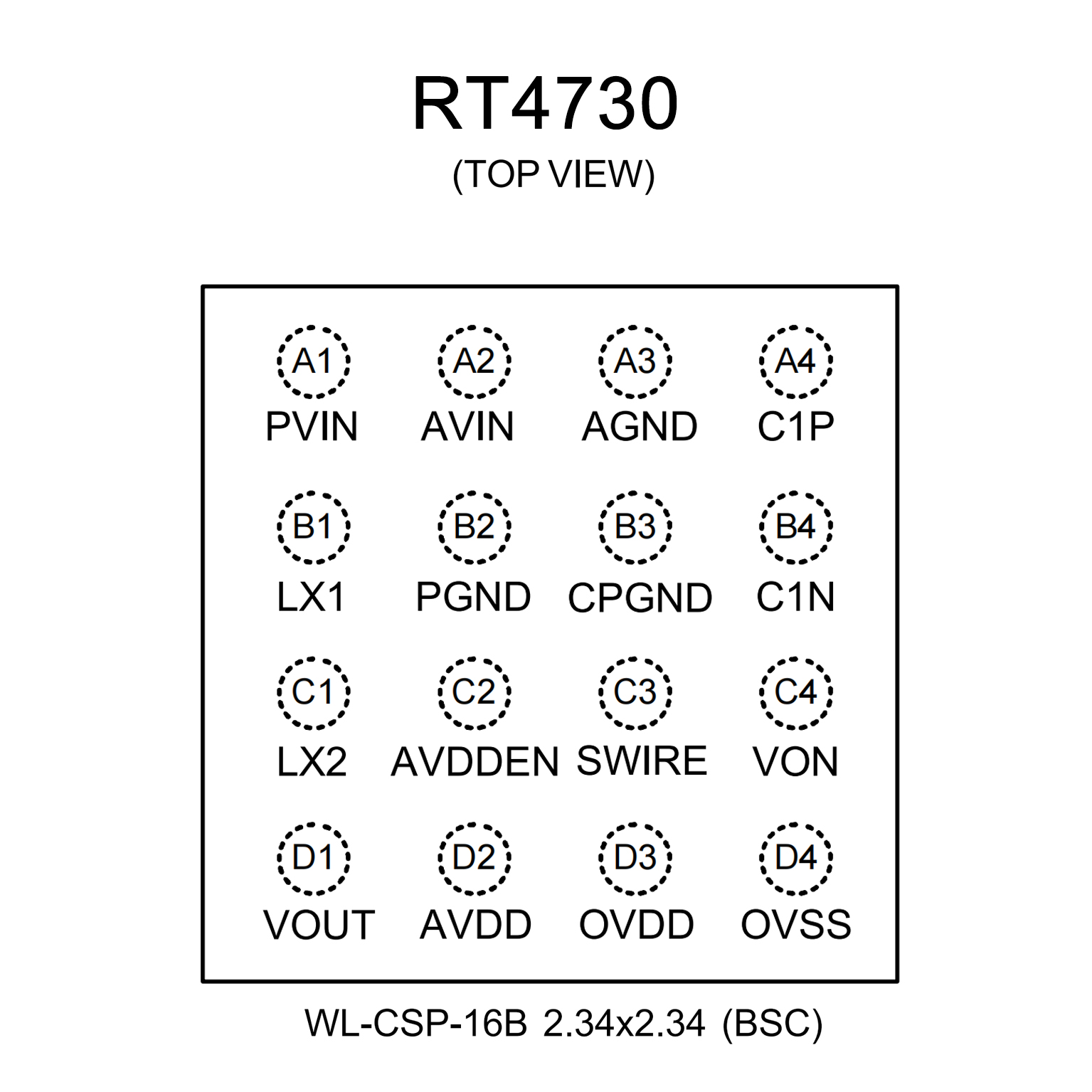

? Input Voltage Range : 2.9V to 5.2V
? Positive Output Voltage AVDD : 3.3V
? Positive Output Voltage OVDD Range : 2.8V to 4V
(Default is 3.3V ±1%)
? Negative Output Voltage OVSS Range : ?0.6V to
?4V (Default is ?3.3V ±1%)
? Excellent Line/Load Regulation
? Excellent Line/Load Transient
? Advanced Power-Save Mode for Light-Load
Efficiency
? Low Output Ripple Voltage
? Built-in Internal Soft-Start
? True Output Load Disconnect From Input
? UVLO, SCP, OCP, OTP, OVP Protection
? Shutdown Current : Typ. 0.1μA
