35ppm/℃, 245μA,CMOS Voltage Reference，SGM4027-2.5 Replace REF3325.
SGM4027-2.5
SGM4027-2.5.pdf
SGM4027-2.5.pdfFEATURES
? Low Dropout Voltage: 0.2V (MAX)
? High Output Current: 10mA (MAX)
? Limited Output Current: 25mA
? Stable Output CLOAD Range: 2μF to 22μF
? High Initial Accuracy: 0.1% (MAX)
? Low Temperature Drift:
35ppm/℃ (MAX) from -40℃ to +125℃
? Low Quiescent Current: 245μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23 Package

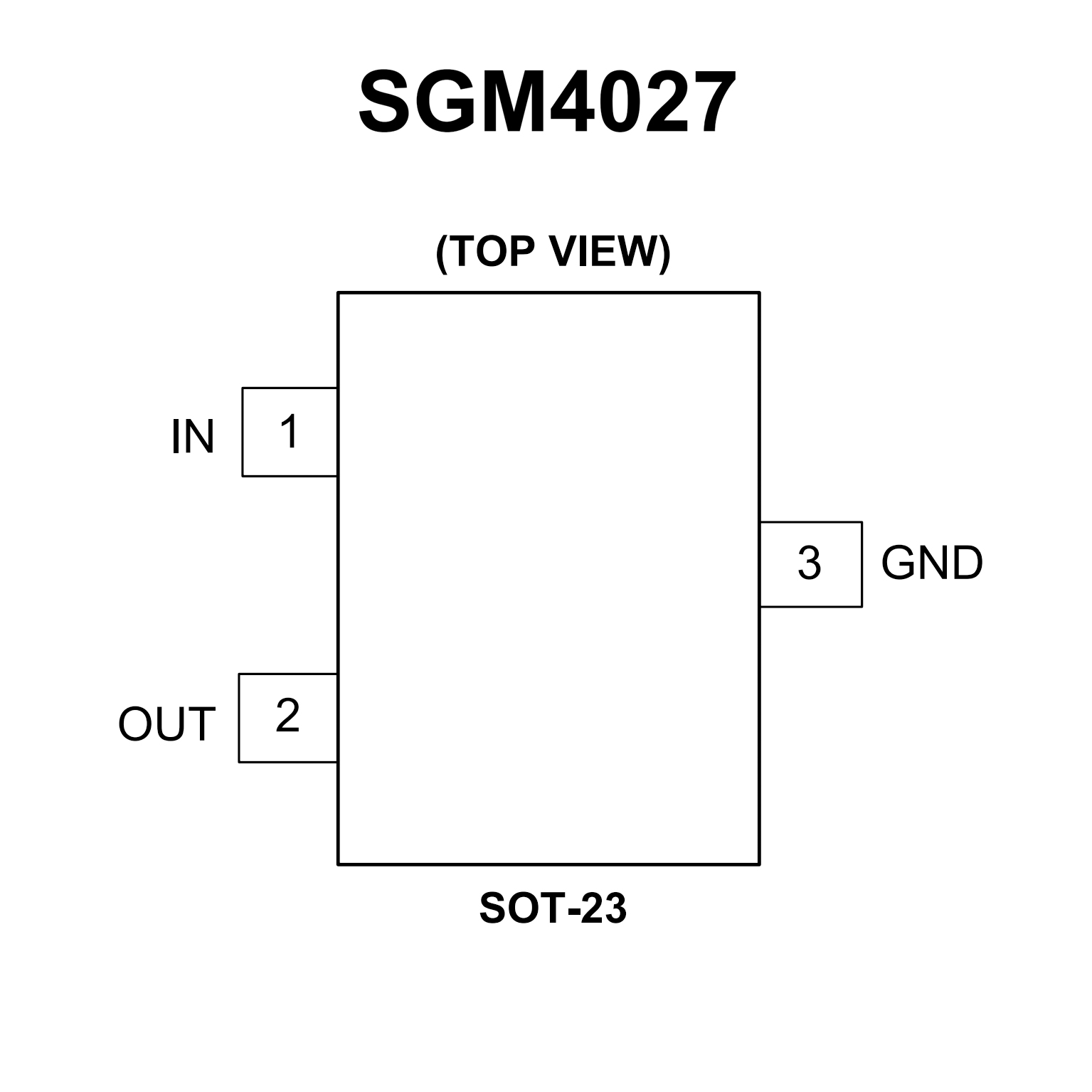

PIN CONFIGUTION
優勢替代
FEATURES
? Microsize Packages: SC70-3, SOT-23-3, UQFN-8
? Low Supply Current: 3.9 μA (typ)
? Extremely Low Dropout Voltage: 110 mV (typ)
? High Output Current: ±5 mA
? Low Temperature Drift: 30 ppm/°C (max)
? High Initial Accuracy: ±0.15% (max)
? 0.1-Hz to 10-Hz Noise: 35 μVPP (REF3312)
? Voltage Options: 1.2 V, 1.8 V, 2.5 V, 3 V, 3.3 V

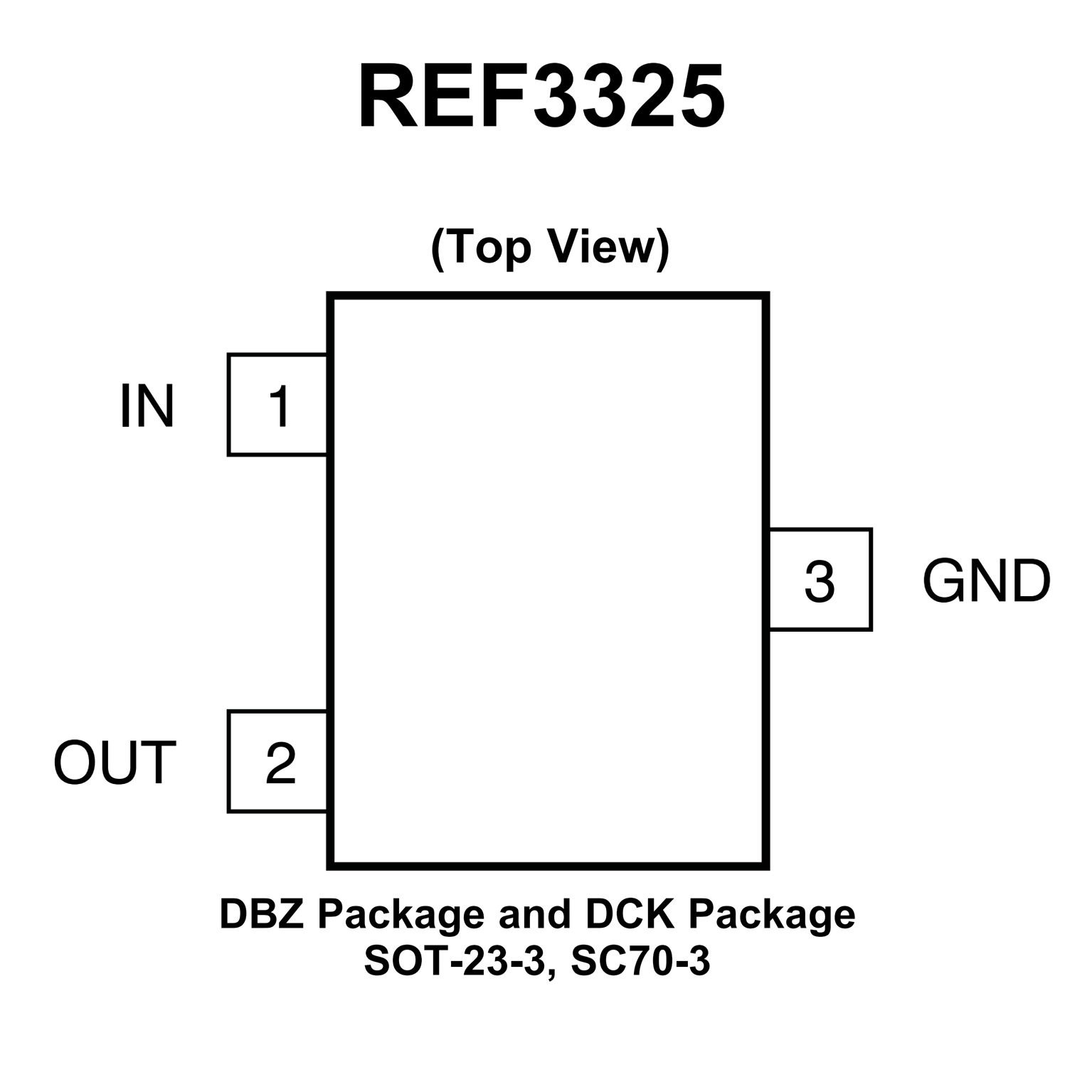

PIN CONFIGUTION
