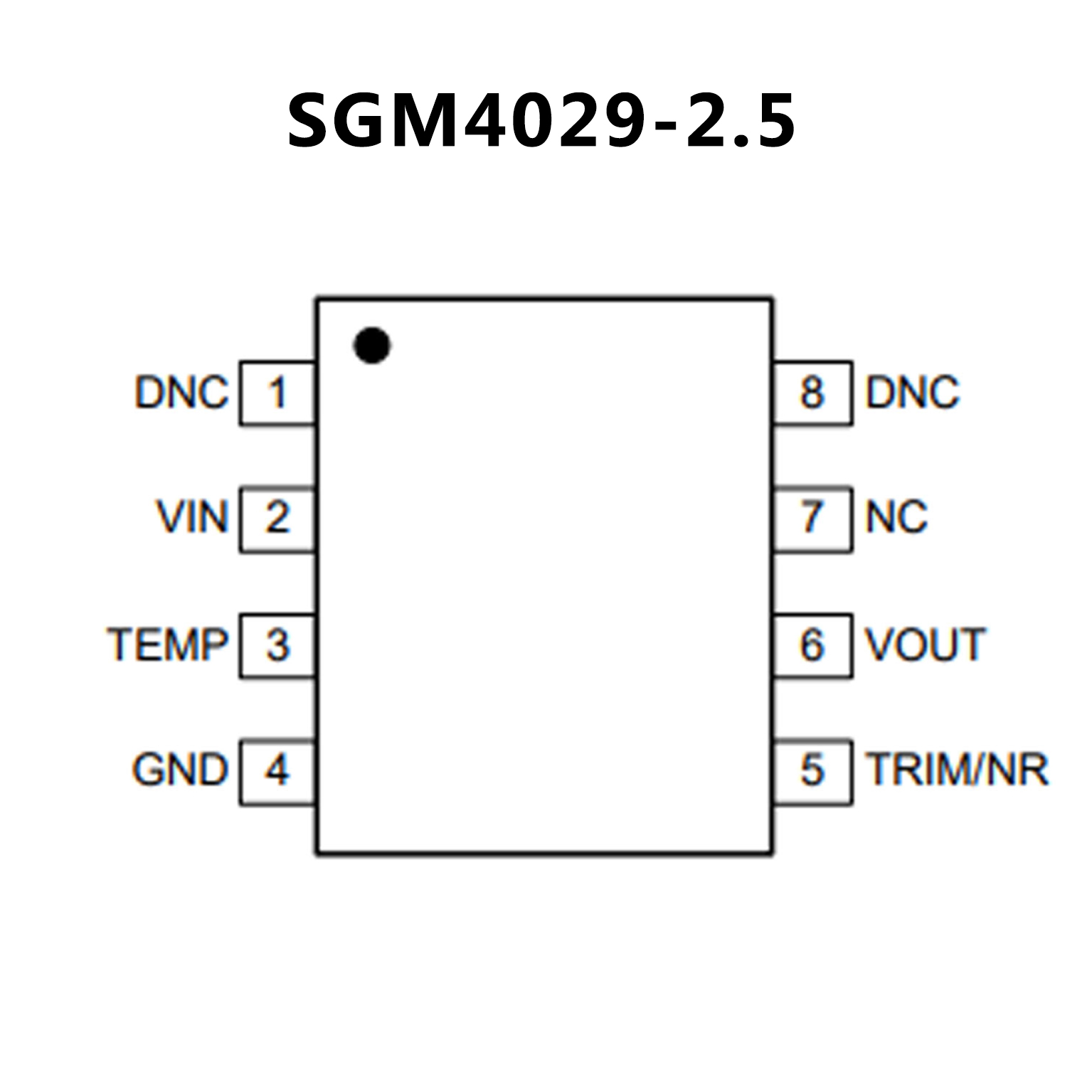

SGM4029-2.5.pdf? Low Temperature Drift:
5ppm/℃ (TYP), 10ppm/℃ (MAX)
? High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
? Low Noise: 3μVPP/V
? Excellent Long-Term Stability:
50ppm/1000 hour (TYP) First 1000 Hours
25ppm/1000 hour (TYP) Second 2000 Hours
? High Output Current: ±10mA
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Low noise (0.1 Hz to 10.0 Hz): 3.5 μV p-p at 2.500 V output
? No external capacitor required
? Low temperature coefficient
A grade: 10 ppm/°C maximum
B grade: 3 ppm/°C maximum
? Load regulation: 15 ppm/mA
? Line regulation: 20 ppm/V
? Wide operating range
ADR430: 4.1 V to 18 V

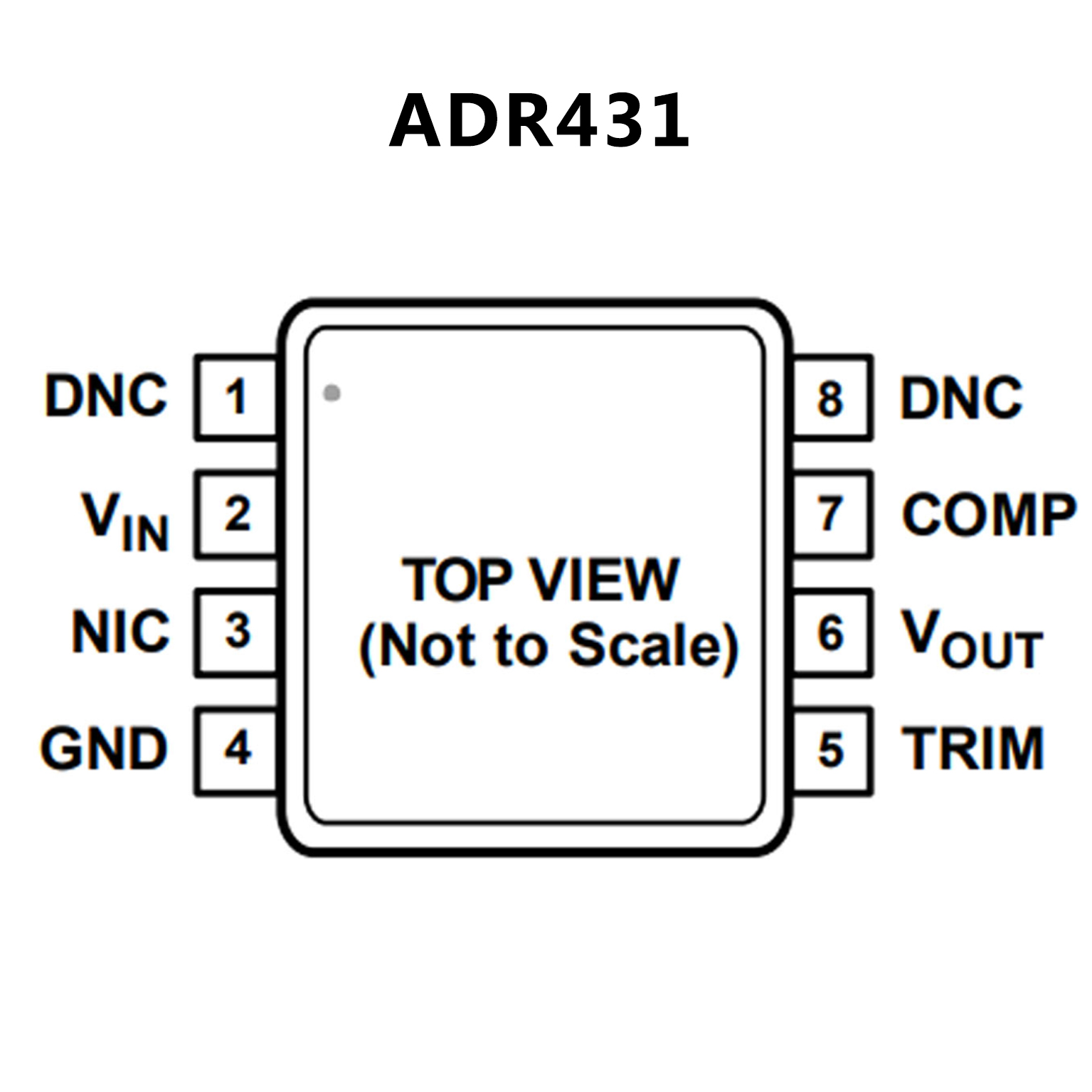

ADR431: 4.5 V to 18 V
ADR433: 5.0 V to 18 V
ADR434: 6.1 V to 18 V
ADR435: 7.0 V to 18 V
? High output source and sink current: 30 mA and ?20 mA
? Wide temperature range: ?40°C to +125°C
