76V, 300mW Boost Converter and Current Monitor for APD Bias Applications, Replace MAX15059.
FEATURES

 Wide VIN Range from 2.2V to 4.9V

 3.85V/3.0A Continues Output at 3.4V Input

 95% Efficiency at 2.5MHz PWM Frequency

 Simple I/O Control Interface

 Programmable Output Voltage:

   3.35V/3.45V/3.65V/3.85V(Default)/4.25V

 IQ = 14μA & RDS(ON) = 25mΩ in Bypass Mode

 Seamless Transition between Boost Mode and Bypass Mode

 Short-Circuit Protection

 Internal Soft-Start

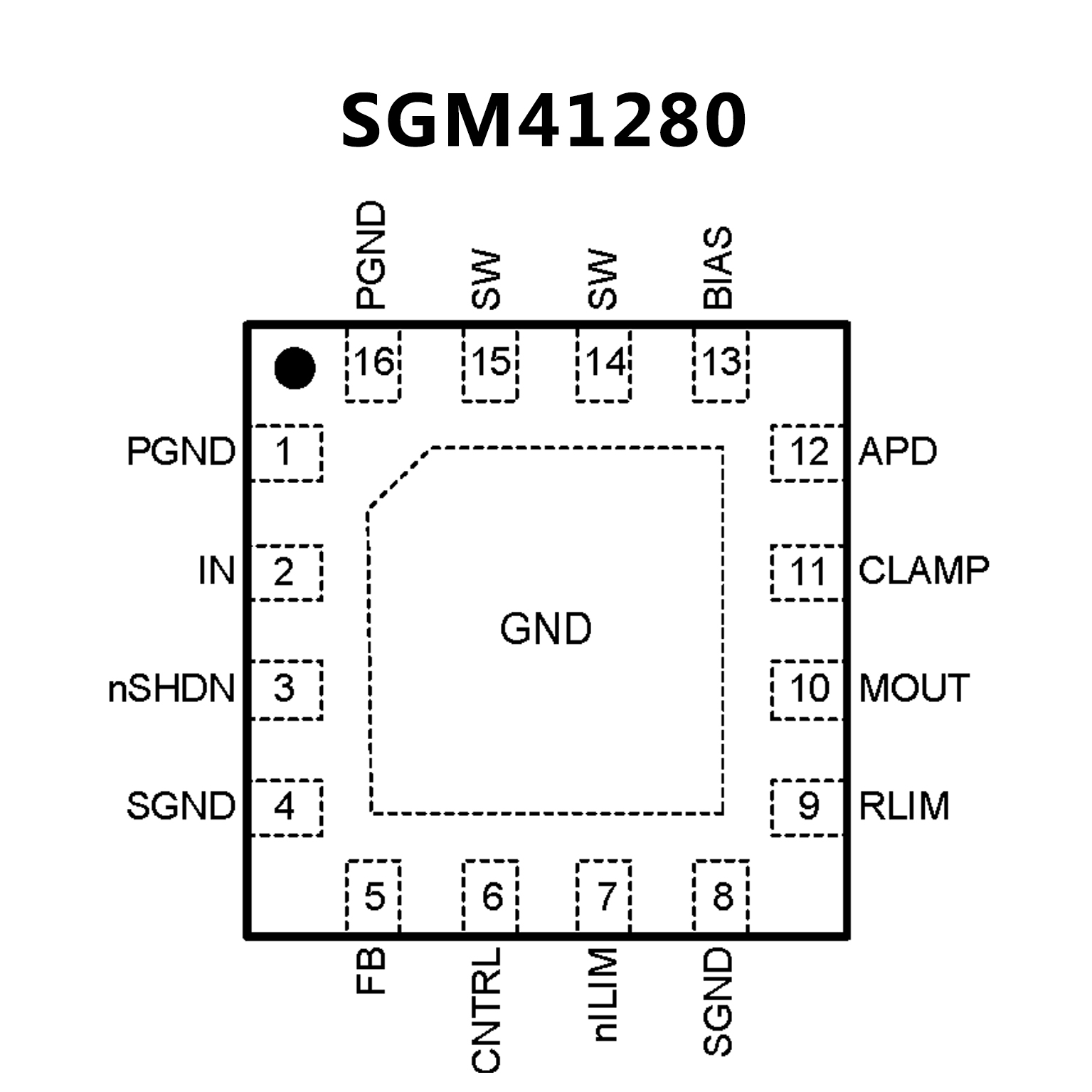

PIN CONFIGUTION
優勢替代
MAX15059 MAX15059.pdf

No.10118

FEATURES

 Input Voltage Range: +2.8V to +5.5V

 Wide Output-Voltage Range from (VIN + 5V) to 76V

 Internal 1I (typ) 80V MOSFET

 Boost Converter Output Power: 300mW

 200mW Version Available for Smaller Inductor

 Accurate Q5% (1:1 and 5:1) High-Side Current Monitor

 Resistor-Adjustable Ultra-Fast APD Current Limit

 Open-Drain Current-Limit Indicator Flag

 400kHz Fixed-Switching Frequency

 Internal Soft-Start

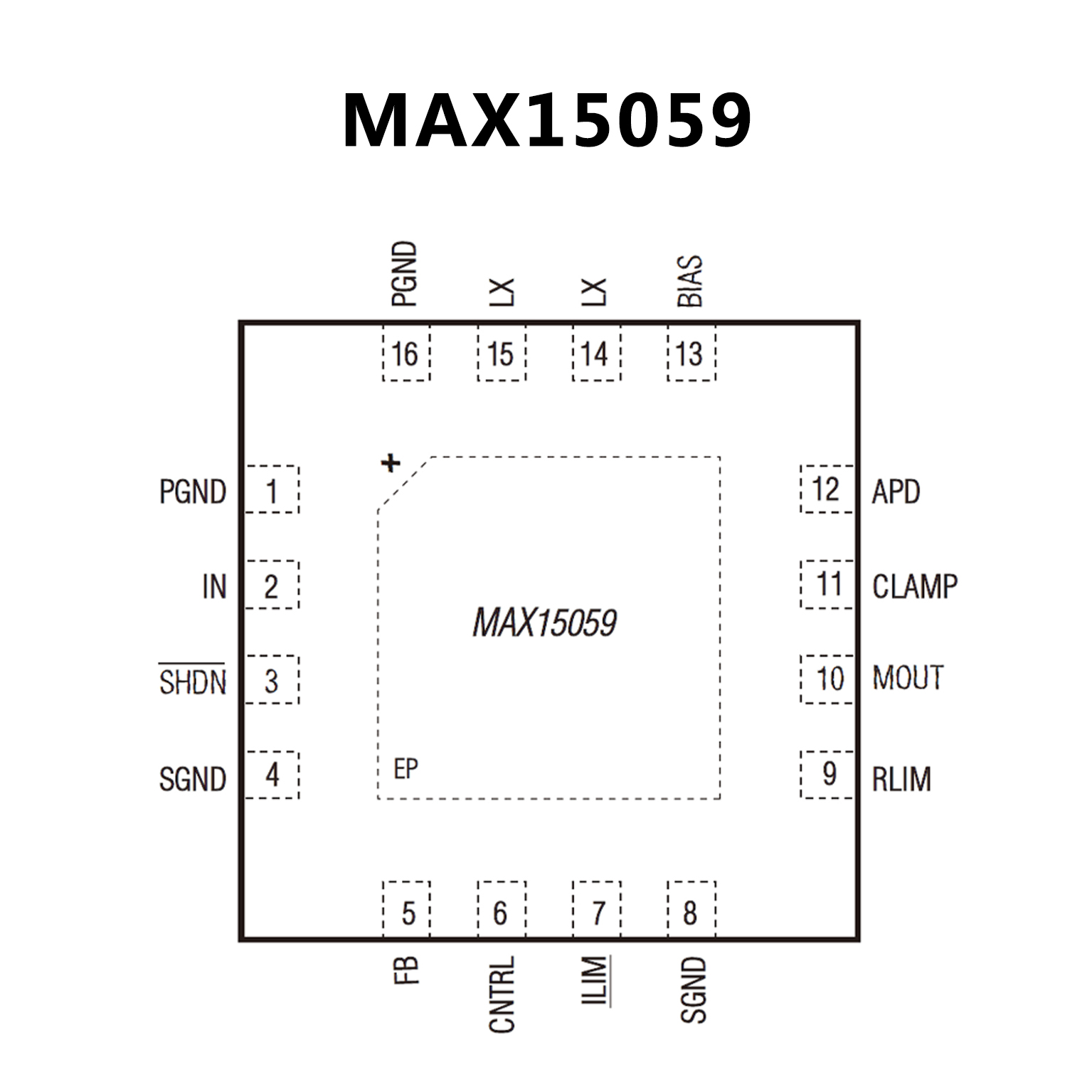

PIN CONFIGUTION
