75V DC/DC Converter for APD Bias, SGM41283 Replace LT3571.
FEATURES

? 2.7V to 5.5V Input Voltage

? 72V/0.6Ω NFET with 1.1A Limit

? Up to 70V Output Voltage

? 50ns APD Current Monitoring Response Speed

? 850kHz Fixed Switching Frequency

? Internal Compensation and Soft-Start

? High-side APD Current Monitor

? High-side Current Monitor Ratio:10:1 and 2:1

? Thermal-Shutdown Protection

? Programmable APD Over-Current Limit and Protection

? -40℃ to +85℃ Operating Temperature Range

? Available in Green TQFN-3×3-16L Package

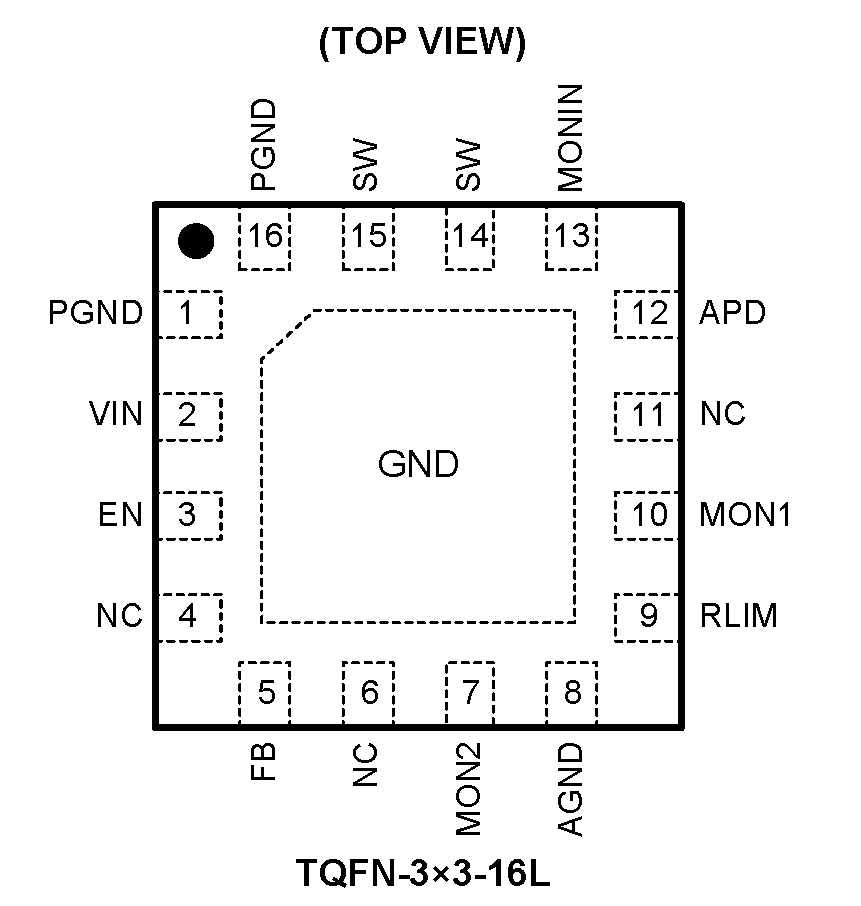

PIN CONFIGUTION
優勢替代
LT3571 LT3571.pdf

No.10116

FEATURES

? High APD Voltage: Up to 70V

? Integrated Schottky Diode

? 75V, 370mA Internal Switch

? High Side Fixed Voltage Drop APD Current Monitor

? Adjustable Frequency: 250kHz to 2MHz

? Frequency Synchronization

? Wide VIN Range: 2.7V to 20V

? Constant-Voltage and Constant-Current Regulation

? Programmable Current Limit Protection

? Surface Mount Components

? Low Shutdown Current <1μA

? CTRL Pin Allows Output Adjustment

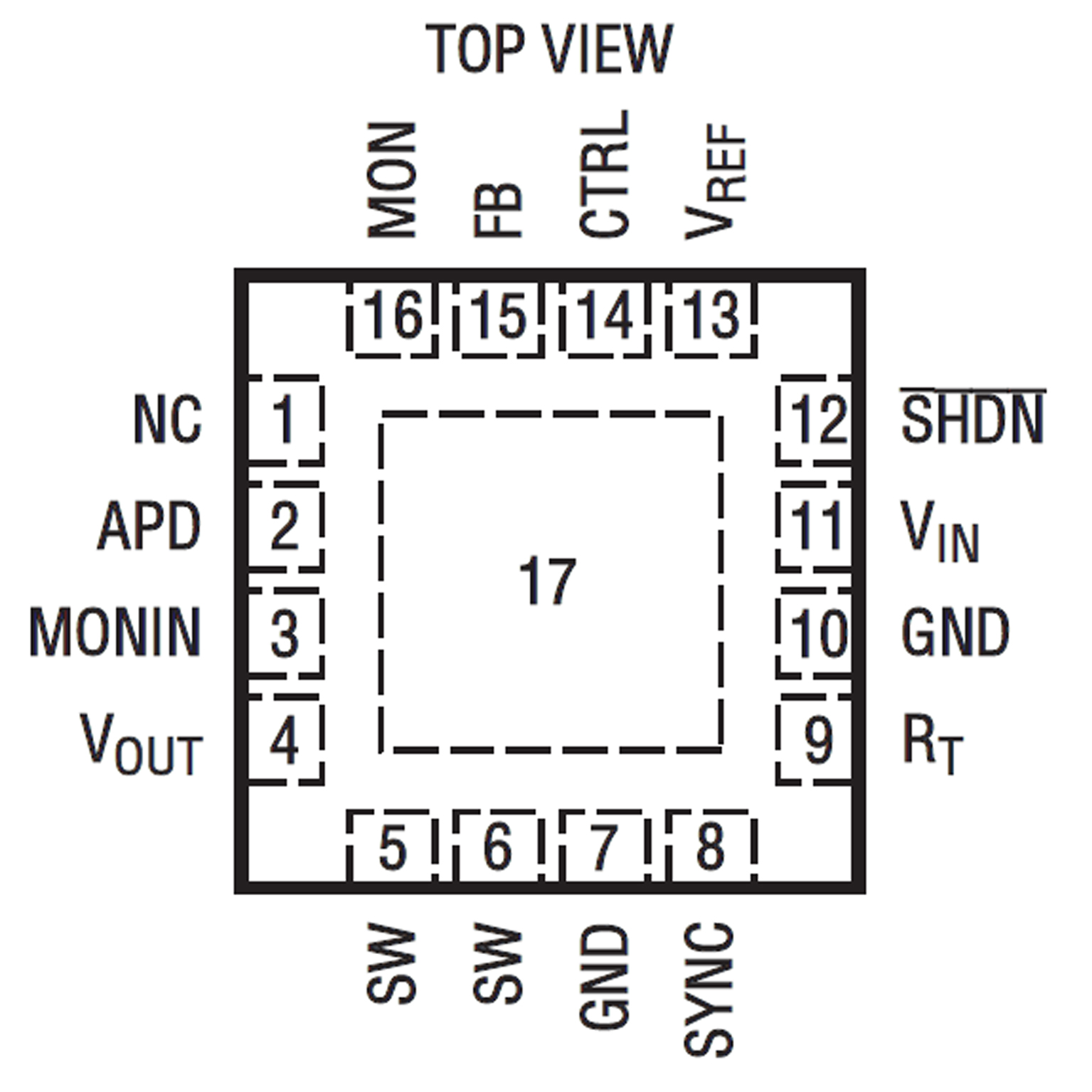

PIN CONFIGUTION
