12 V/24 V smart analog high side MOSFET gate driver Features, SGM42110Q P2P 2ED2410.
SGM42110Q.pdf優勢替代
FEATURES
? PRO-SIL? ISO 26262-ready for supporting
the integrator in evaluation of hardware
element according to ISO 26262:2018 Clause 8-13
? One channel device with two high-side gate driver outputs
? 3 Ω pull-down, 50 Ω pull-up for fast switch on/off
? Support back-to-back MOSFET
topologies (common drain and common source)
? Two bidirectional high-side analog current
sense interfaces with externally adjustable gain
? Adjustable overcurrent/short-circuit protection
? Versatile comparator to implement: adjustable
I-t wire protection, overvoltage/undervoltage
or overtemperature protection

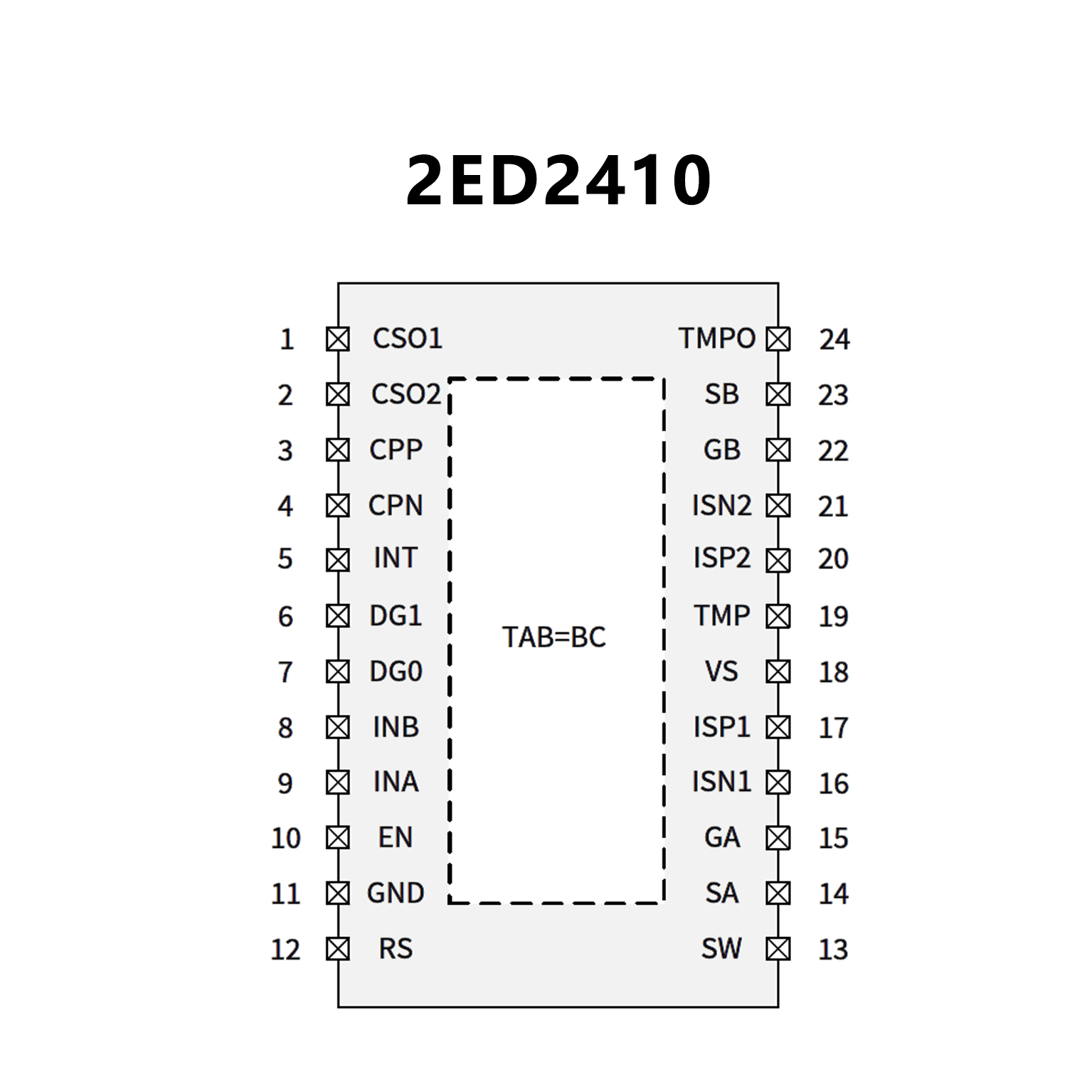

PIN CONFIGUTION
