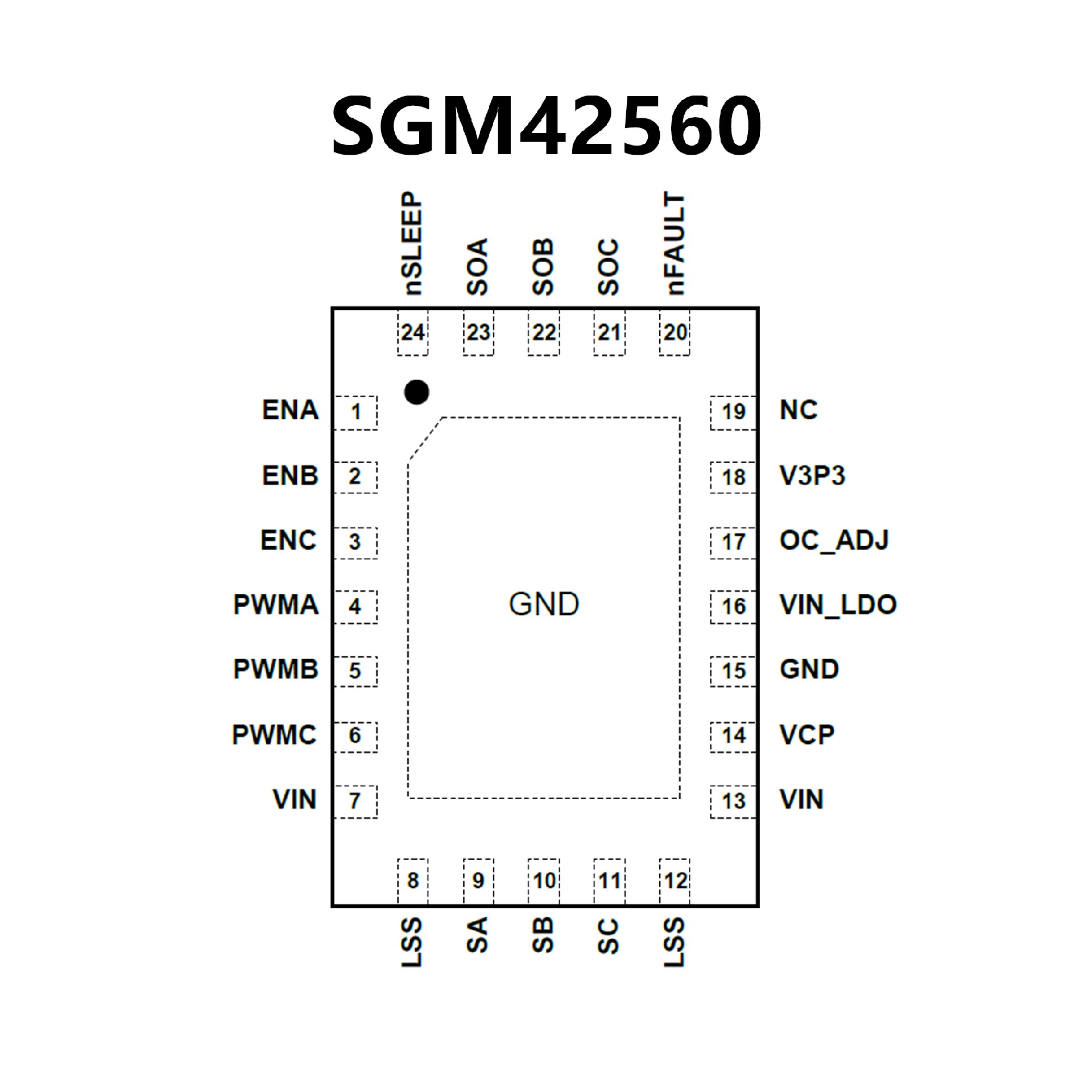

SGM42560.pdf? 3V to 18V Operating Supply Voltage
? Three Integrated Half-Bridge Drivers
? High Output Current Capability
2A Continuous Current
6A Peak Current
? On-Resistance: 170m? (HS + LS) at +25℃
? ENx and PWMx Control Inputs
? Integrated Bidirectional Current Sense Amplifiers
? Built-in 3.3V, 50mA LDO Regulator
? Internal Charge Pump Supports 100% Duty Cycle
? Automatic Synchronous Rectification
? Integrated Protection Features
Under-Voltage Lockout (UVLO)
Over-Current Protection (OCP)
withAdjustable Threshold
Thermal Shutdown (TSD)
? Available in a Green TQFN-3×4-24L Package
? 3V to 12V Operating Supply Voltage
? Three Integrated Half-Bridge Drivers
? 2A Continuous Output Current
? MOSFET On Resistance: 110mΩ per FET

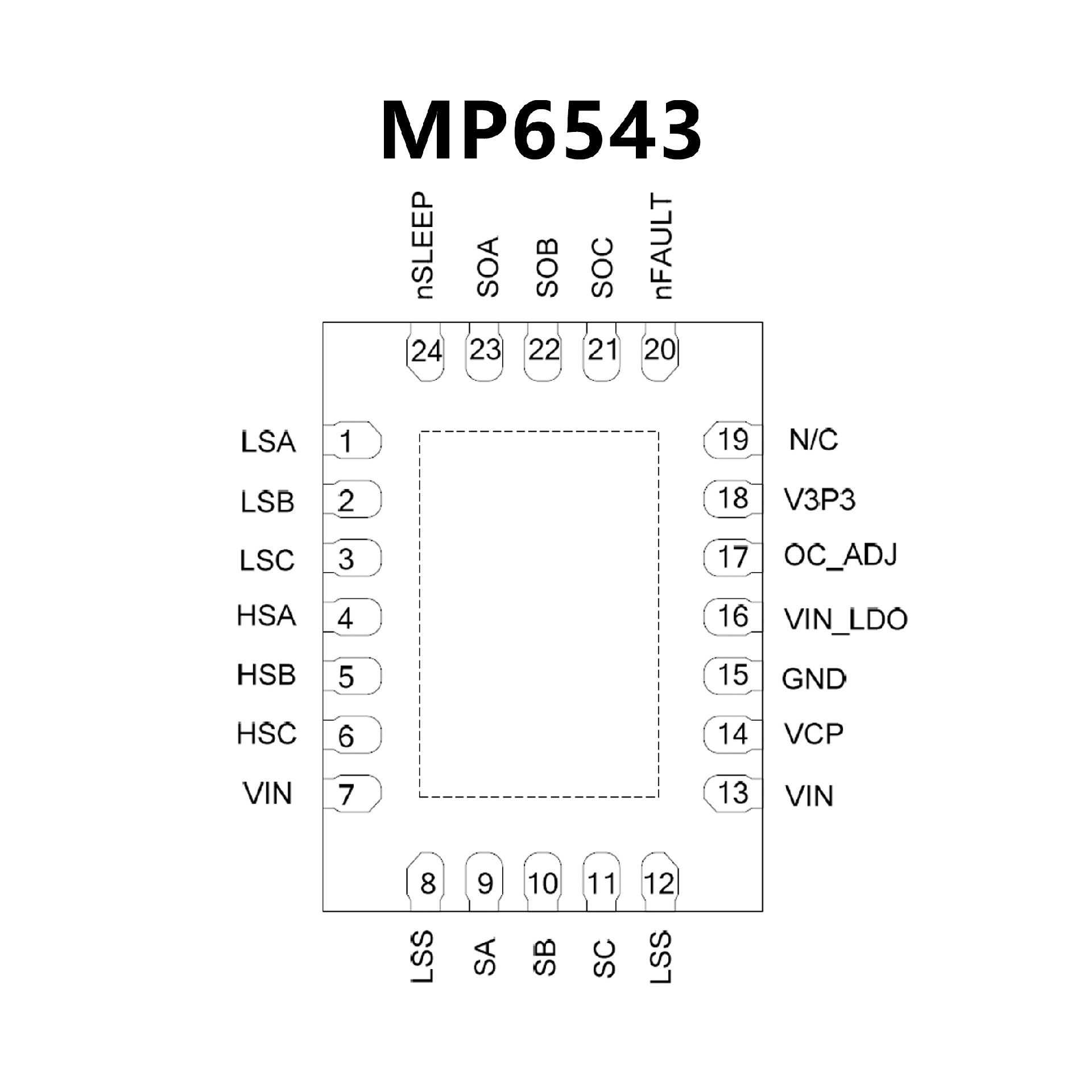

? MP6543: ENBL & PWM Inputs
MP6543A: LS & HS Inputs
MP6543B: Hall-Signal Inputs
? Built-In 3.3V, 100mA LDO Regulator
? Internal Charge Pump Supports 100% Duty Cycle
Operation
? Automatic Synchronous Rectification
? Under-Voltage Lockout (UVLO) and Thermal Shutdown
Protection
? Over-Current Protection (OCP) with Adjustable Threshold
? Integrated Bidirectional Current-Sense Amplifiers
