SGM431.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:-40℃ to +125℃

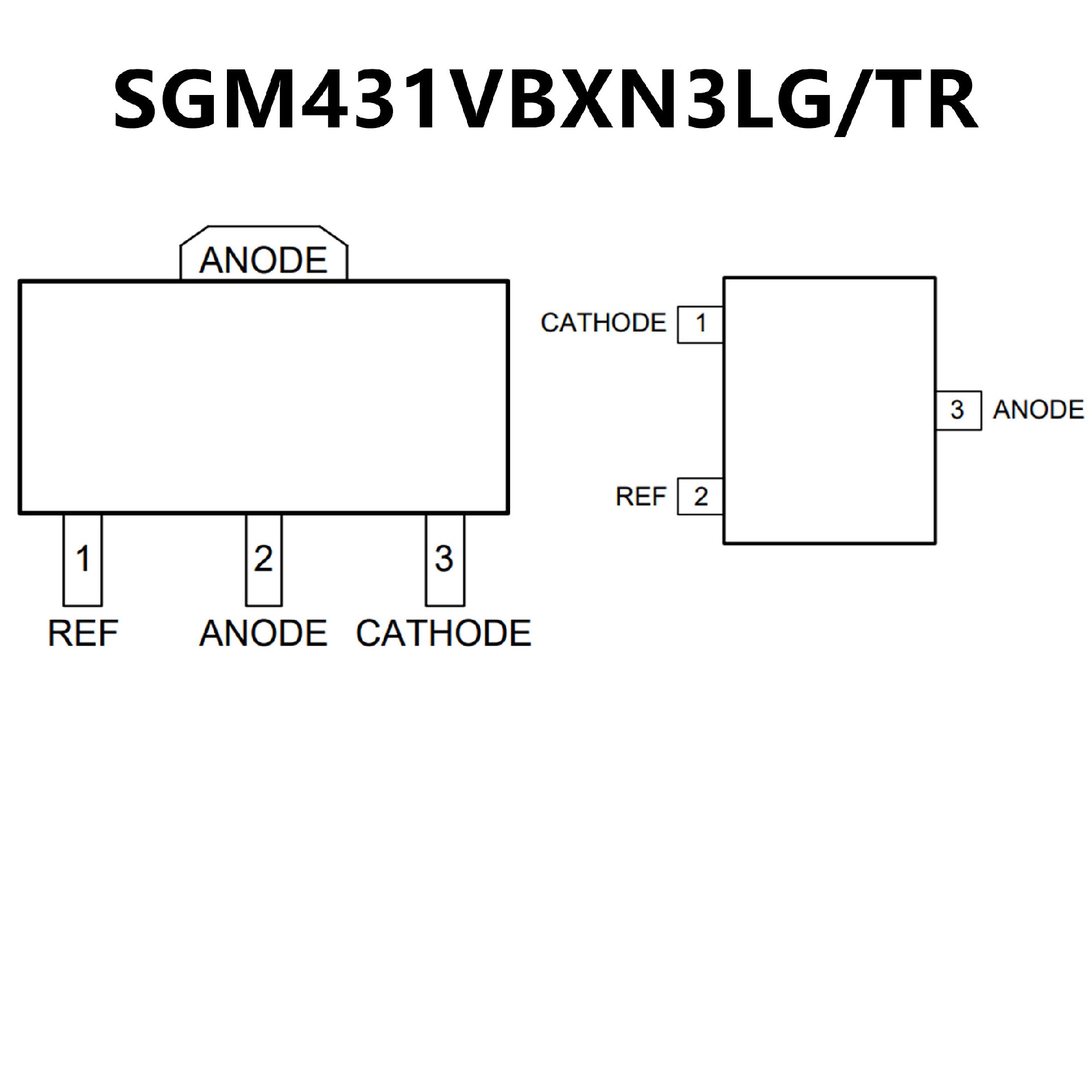

? The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages
? The output voltage can be adjusted to 36V
? Low dynamic output impedance,
its typical value is 0.2Ω
? Trapping current capability is 1 to 100mA
? Low output noise voltage
? Fast on -state response
? The effective temperature compensation
in the working range of full temperature
? The typical value of the equivalent temperature
factor in the whole temperature scope is 50 ppm/°C
