Precision Programmable Reference,SGM432 Replace KIA431BM.
SGM432
SGM432.pdf
SGM432.pdfFEATURES
? Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? Available in Green SOT-89-3, SOT-23 and SOT-23-5
Packages

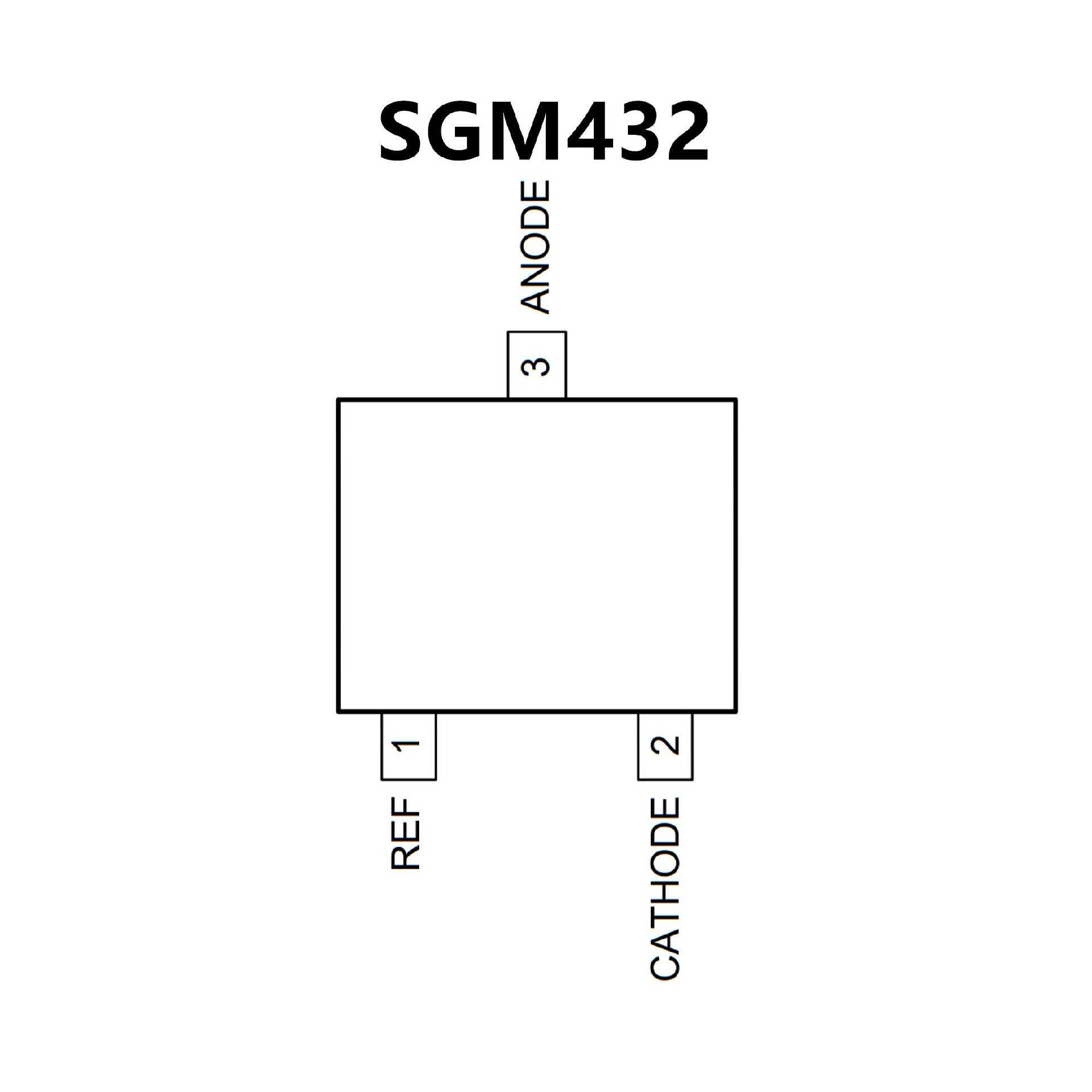

PIN CONFIGUTION
優勢替代
FEATURES
? Low Dynamic Output Impedance : 0.22?(Typ.).
? Sink Current Capability of 1.0 to 100mA.
? Equivalent Full-Range Temperature
Coefficient of 50ppm/℃ (Typ.).
? Temperature Compensated for Operation
Over Full Rated Operating Temperature Range.
? Low Output Noise Voltage.
? Suffix U : Qualified to AEC-Q100. (Grade 1)

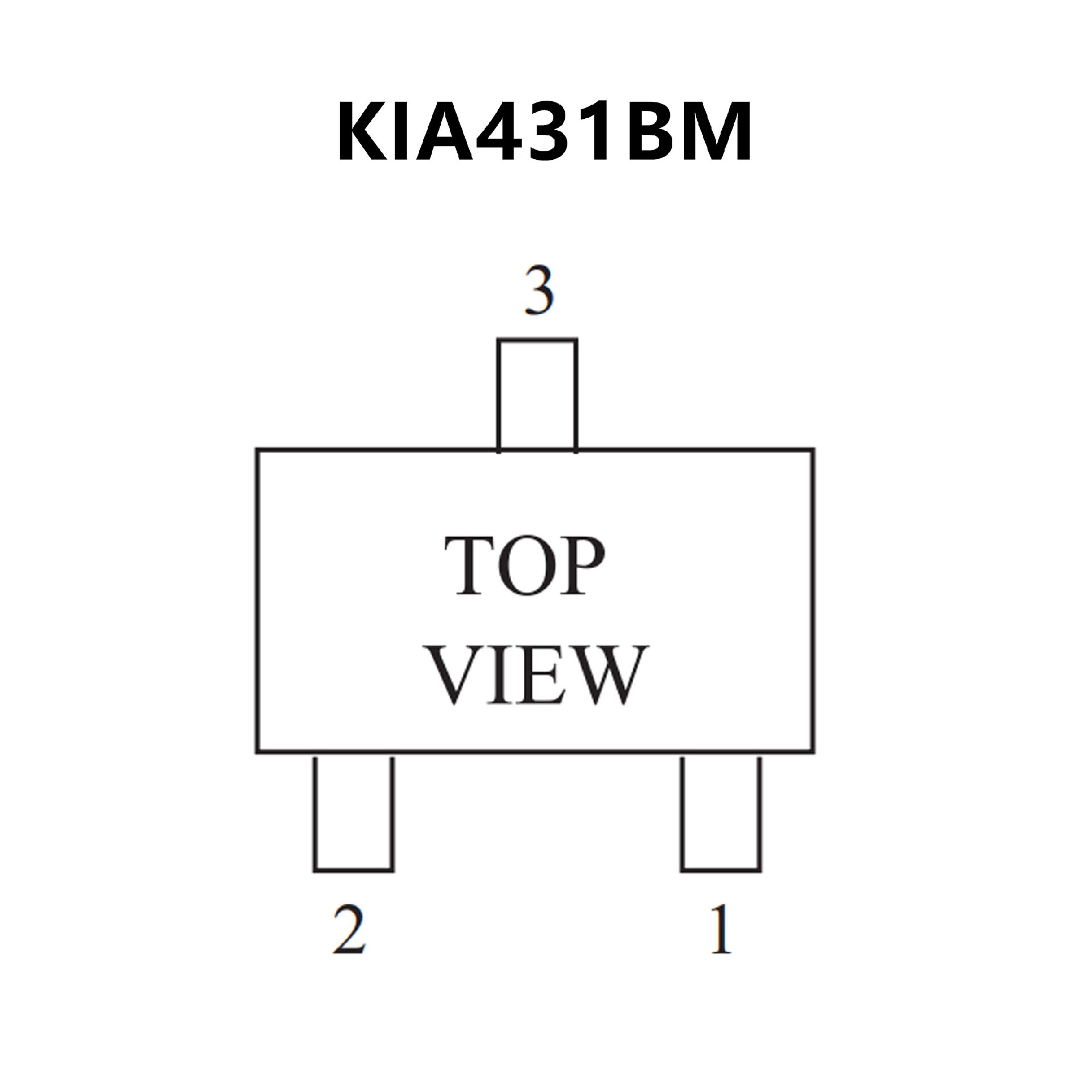

PIN CONFIGUTION
