1.5V, micro SMD, Dual-Gain Analog Temperature Sensor with Class AB Output, SGM447 Replace LM94023.
SGM447
SGM447.pdf
SGM447.pdfFEATURES
? Power Supply Voltage: 1.5V to 5.5V
? Low Quiescent Current
? Temperature Accuracy:
-20℃ to +85℃: ±2.5℃ (MAX)
-55℃ to +150℃: ±3.5℃ (MAX)
? Two Selectable Gains
? 300μA (MAX) Source Current
? Push-pull Output
? Output Short-Circuit Protection
? Operating Temperature Range: -55℃ to +150℃
? Available in a Green WLCSP-0.8×0.8-4B-A Package

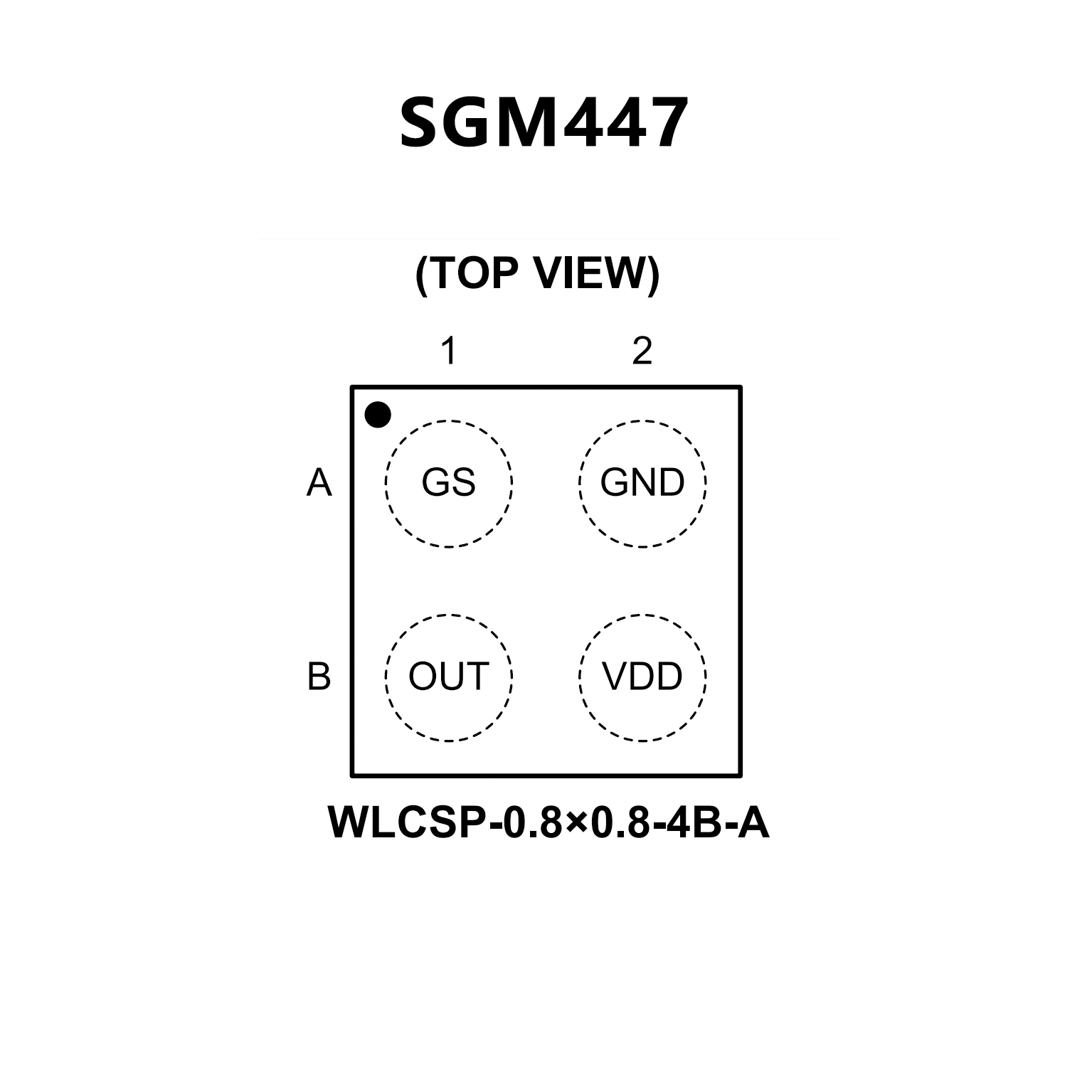

PIN CONFIGUTION
優勢替代
FEATURES
? Low 1.5V Operation
? Push-pull Output with 50μA Source Current Capability
? Two Selectable Gains
? Very Accurate Over Wide Temperature Range of
?50°C to +150°C
? Low Quiescent Current
? Output is Short-circuit Protected
? Extremely Small DSBGA Package
? Footprint Compatible with the Industrystandard LM20
Temperature Sensor

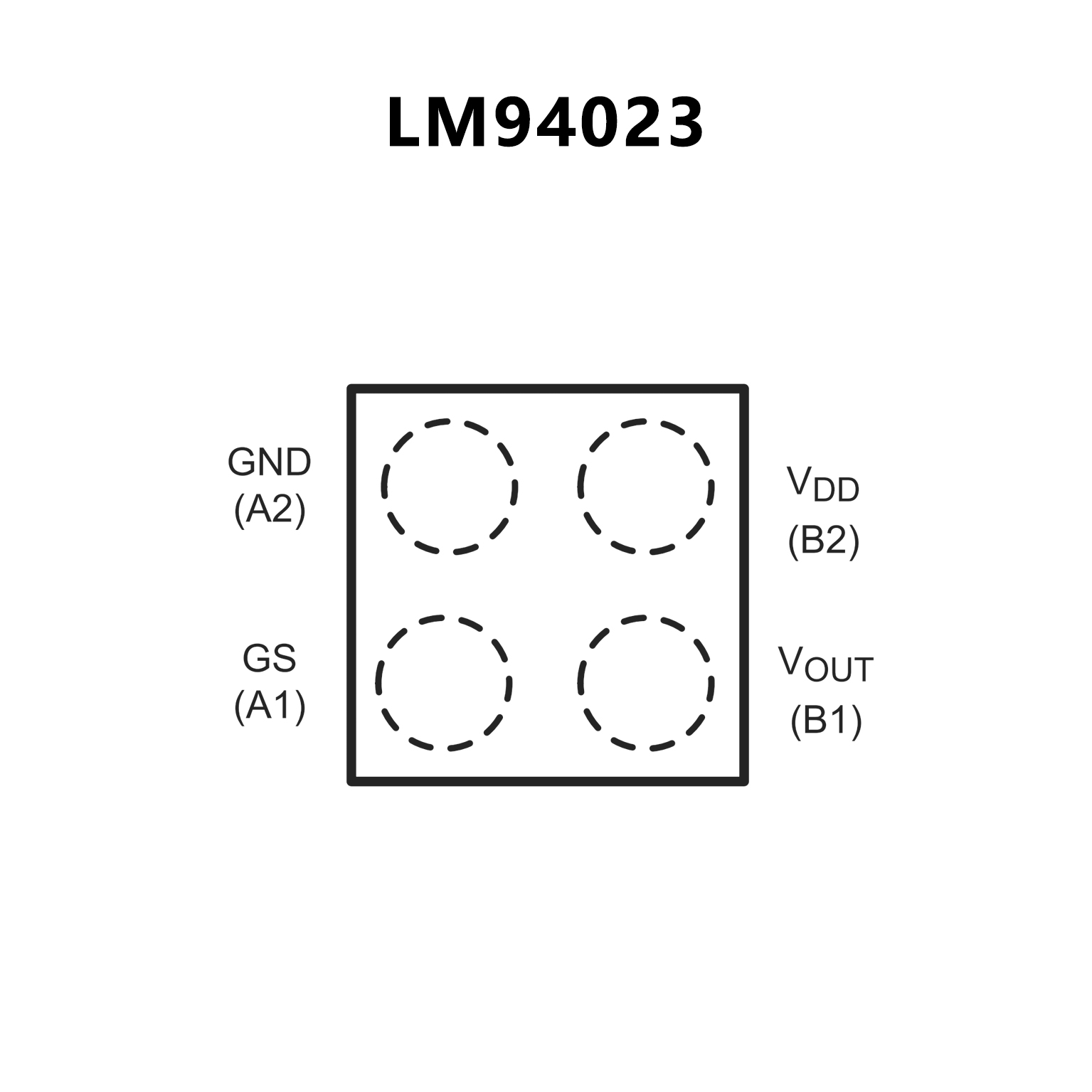

PIN CONFIGUTION
