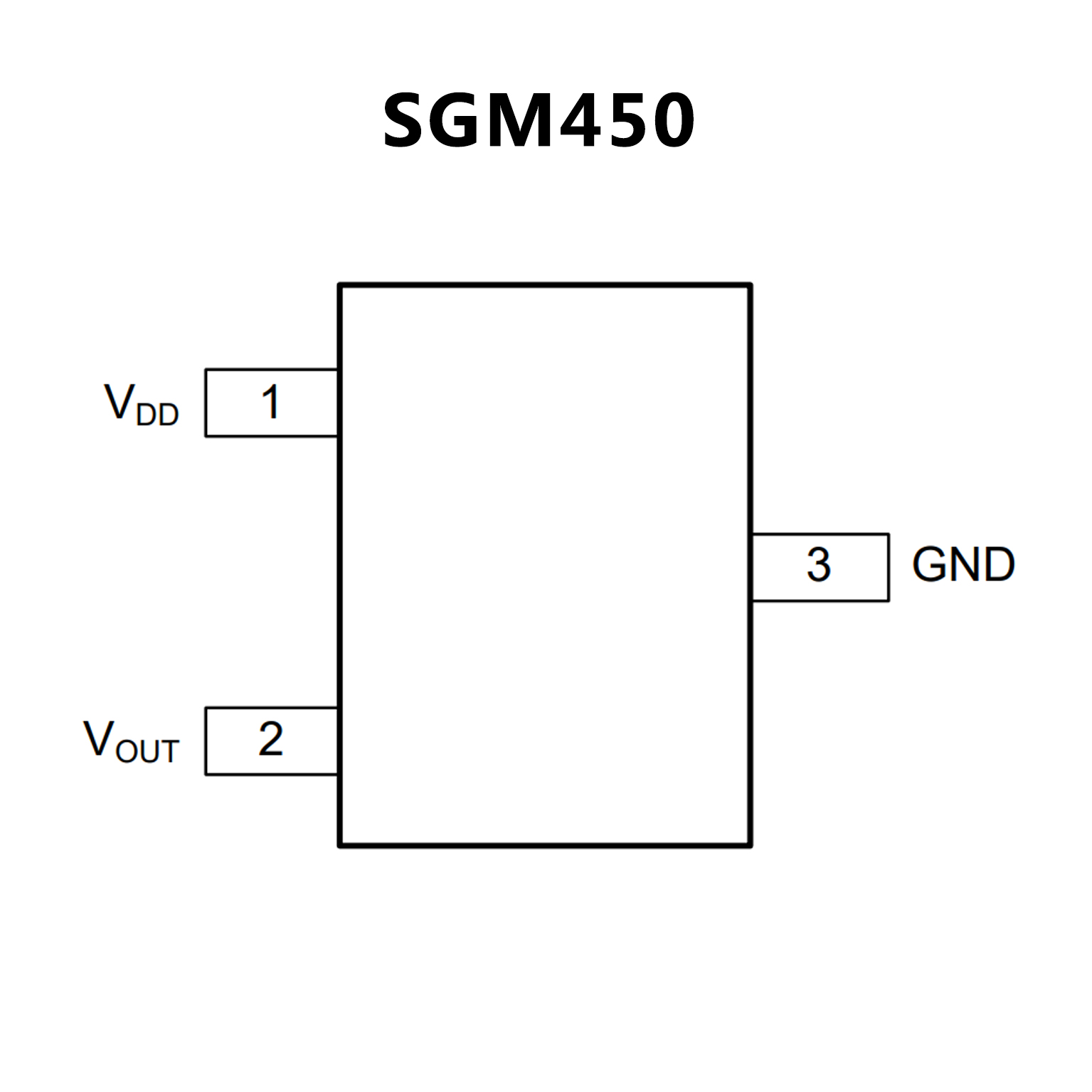

SGM450.pdf? Wide Temperature Measurement Range: -40℃ to +150℃
? Temperature Accuracy: ±2°C (MAX): -40℃ to +150℃
? Positive Slope Sensor Gain: 10mV/°C (TYP)
? Output Voltage Offset: 500mV at 0℃ (TYP)
? Wide Power Supply Range: 2.3V to 5.5V
? Short-Circuit Protected Output
? Low Quiescent Current: 7.5μA (TYP)
? Class-AB Structure Output
? Able to Drive Capacitive Load up to 1000pF
? Available in Green SC70-5 and SOT-23 Packages

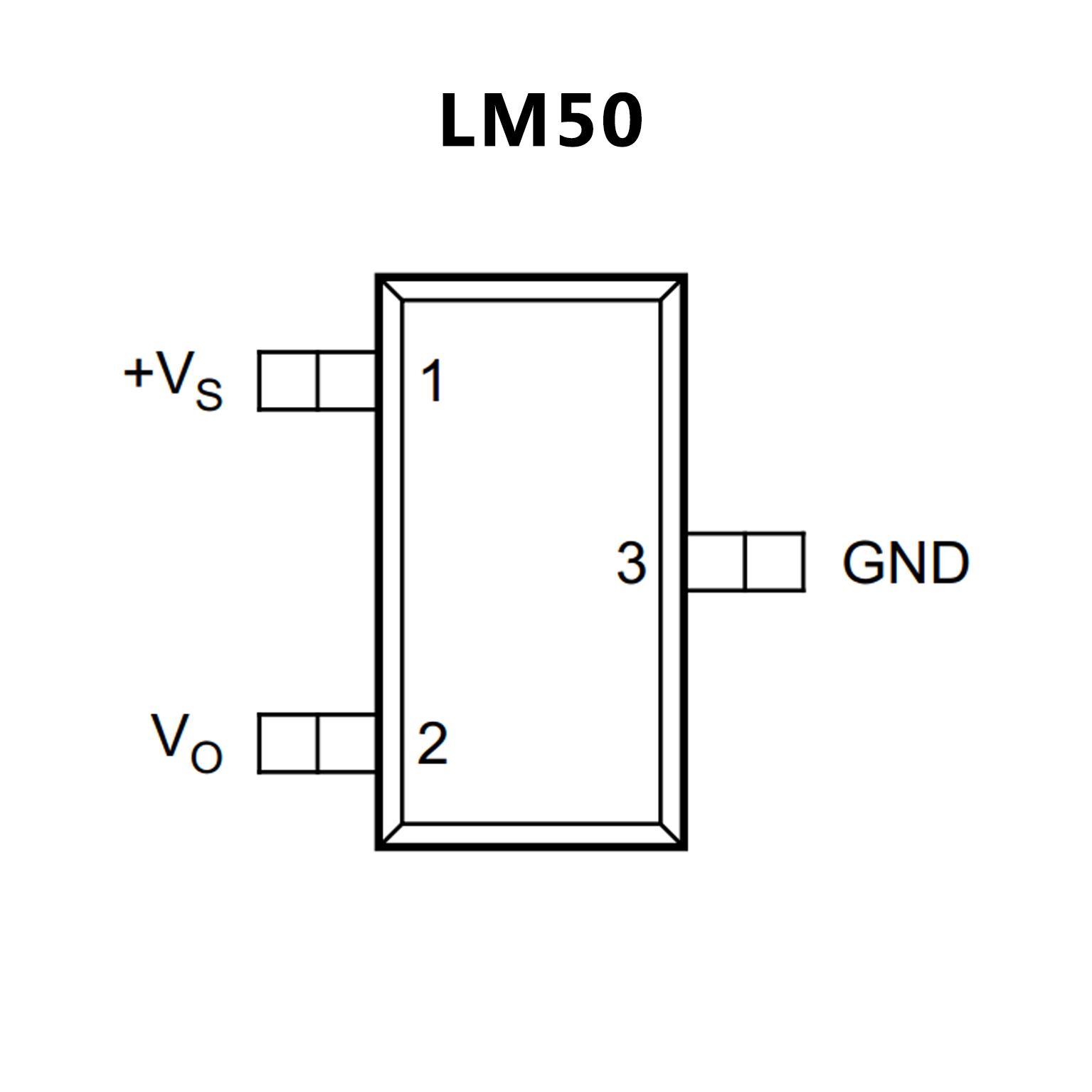

? LM50-Q1 is AEC-Q100 Grade 1
Qualified and isManufactured
on an Automotive Grade Flow
? Calibrated Directly in Degrees Celsius(Centigrade)
? Linear + 10 mV/°C Scale Factor
? ±2°C Accuracy Specified at 25°C
? Specified for Full –40° to 125°C Range
? Suitable for Remote Applications
? Low Cost Due to Wafer-Level Trimming
? Operates From 4.5 V to 10 V
? Less Than 130-μA Current Drain
? Low Self-Heating: Less Than 0.2°C in Still A
? Nonlinearity Less Than 0.8°C Over Temp
? UL Recognized Component
