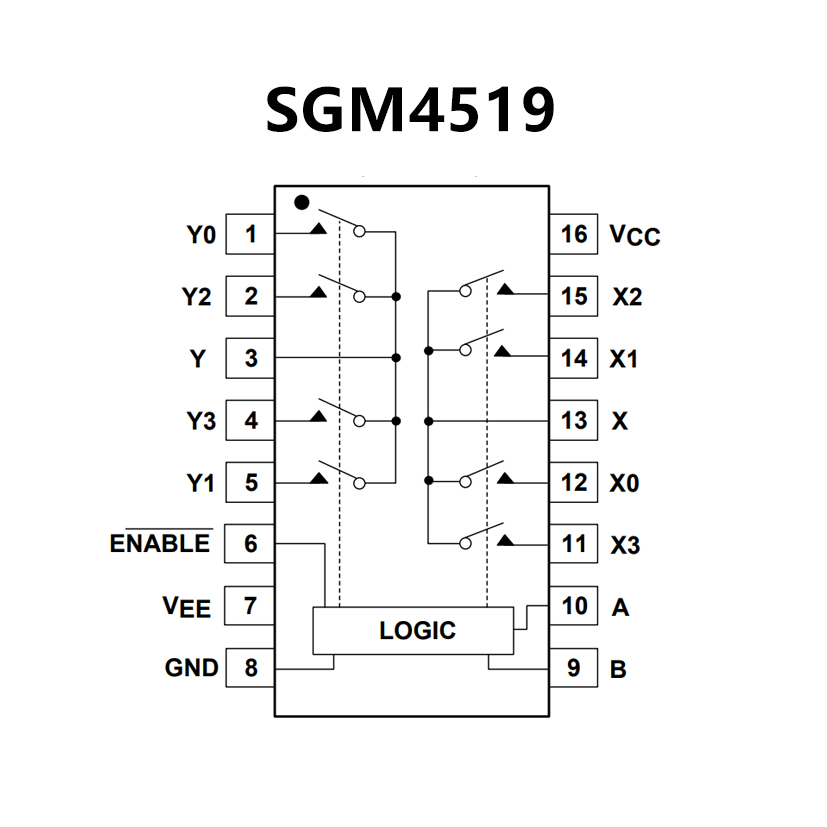

SGM4519XS16G.pdf? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP)
(RL = 600Ω, f = 1kHz)
? High Off-Isolation: -88dB (TYP)
(RL = 50Ω, f = 1MHz)
? Low Crosstalk: -97dB (TYP)
(RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16and TQFN-3×3-16L Packages

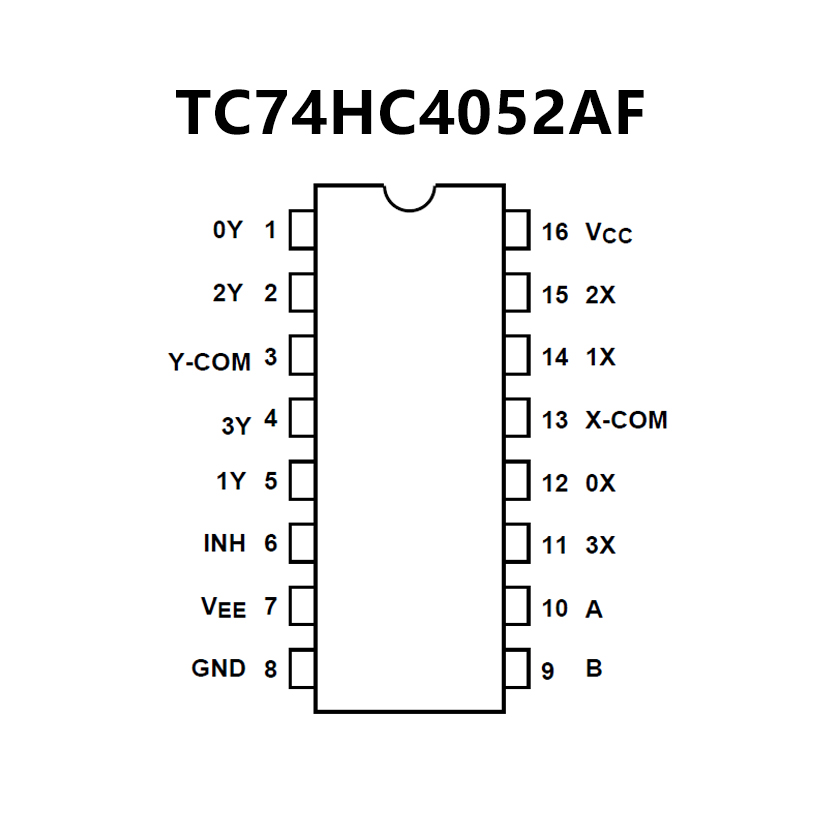

? High speed: tpd = 15 ns (typ.) at
VCC = 5 V, VEE = 0 V
? Low power dissipation:
ICC = 4 μA (max) at Ta = 25°C
? High noise immunity: VNIH =
VNIL = 28% VCC (min)
? Low ON resistance: RON =
50 Ω (typ.) at VCC ? VEE = 9 V
? High noise immunity: THD =
0.02% (typ.) at VCC ? VEE = 9 V
? Pin and function compatible with 4051/4052/4053B
