36V High Voltage, CMOS Analog Multiplexer, SGM4519 Replace CD4052.
SGM4519
SGM4519.pdf
SGM4519.pdfFEATURES
? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP)
(RL = 600Ω, f = 1kHz)
? High Off-Isolation: -88dB
(TYP) (RL = 50Ω, f = 1MHz)
? Low Crosstalk: -97dB (TYP)
(RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16and TQFN-3×3-16L Packages

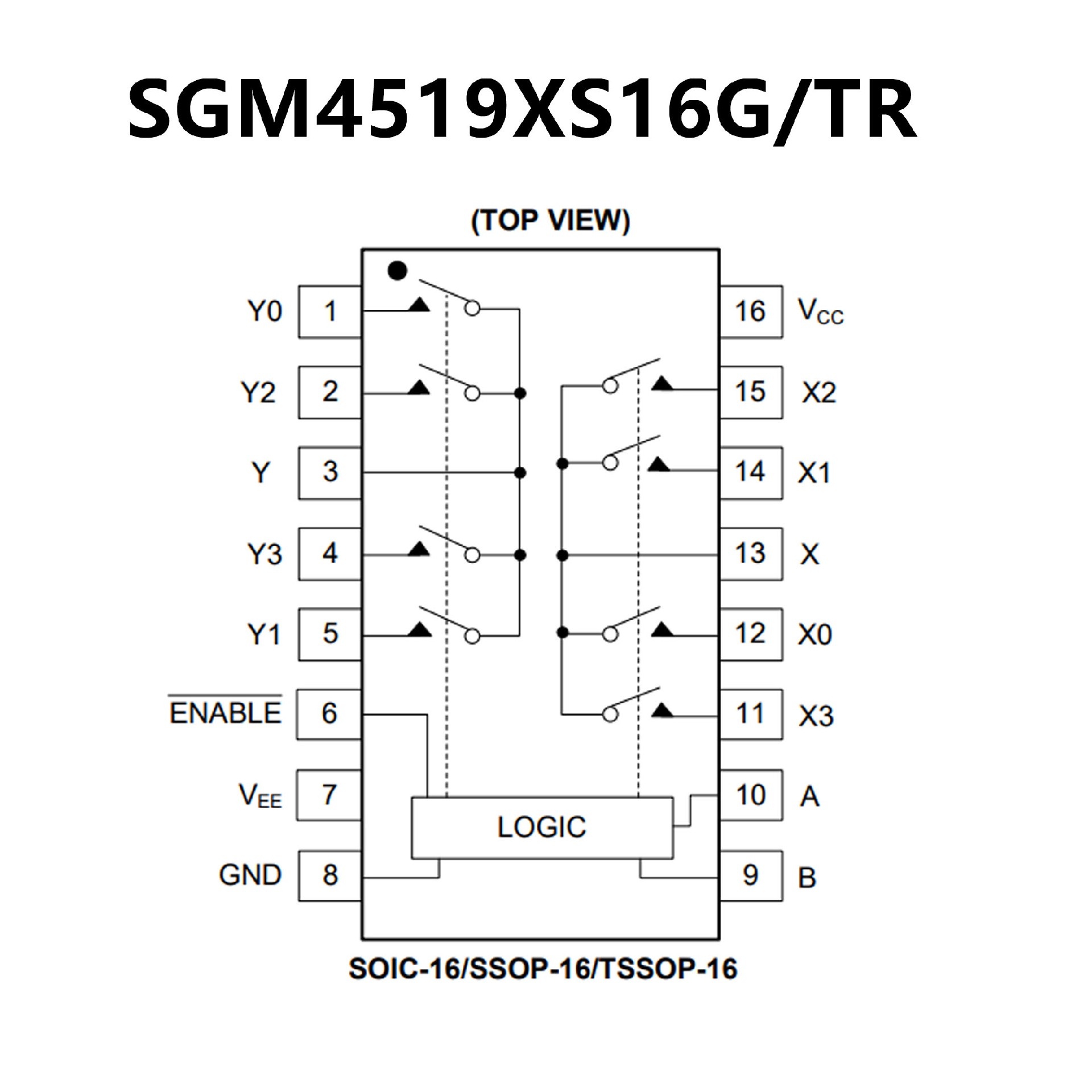

PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range from 3V to 9V
? Fully static operation
? 5V and 9V parametric ratings
? Standardized symmetrical output characteristics
? Specified from -40℃ to +85℃
? Packaging information: DIP16/SOP16/TSSOP16

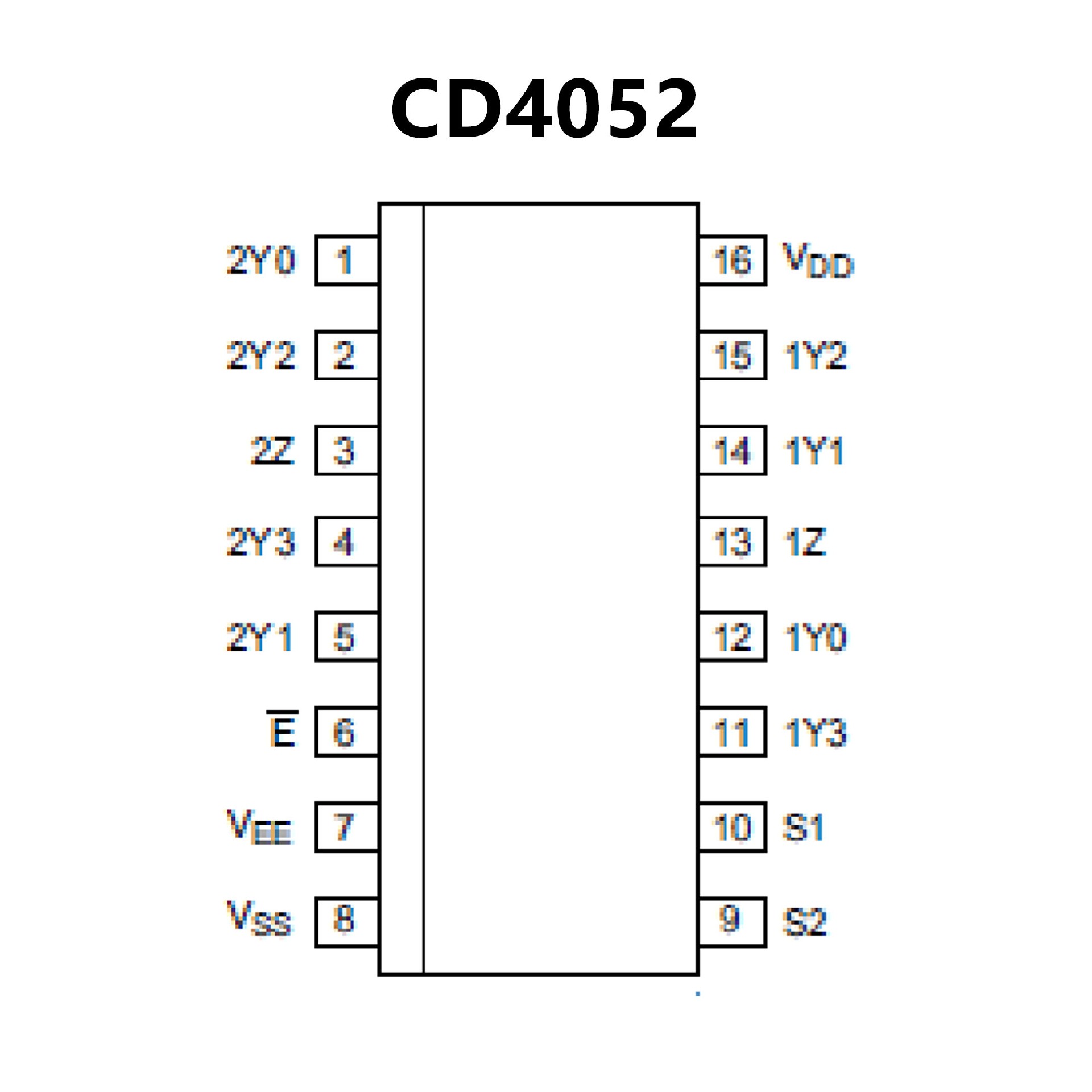

PIN CONFIGUTION
