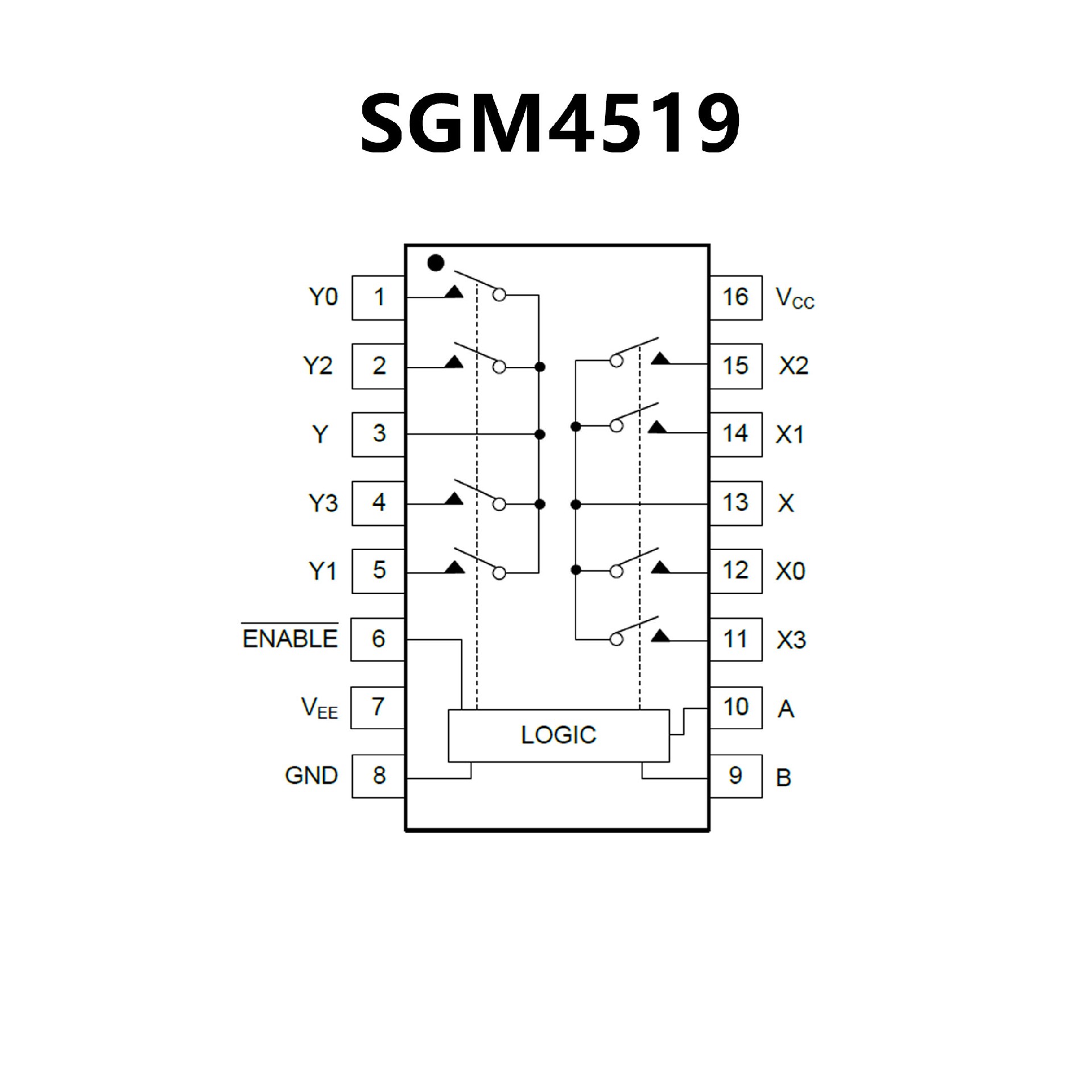

SGM4519.pdf? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
? High Off-Isolation: -88dB (TYP) (RL = 50Ω, f = 1MHz)
? Low Crosstalk: -97dB (TYP) (RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16, TSSOP-16and
TQFN-3×3-16L Packages
? Triple Diode Protection on Control Inputs
? Switch Function is Break Before Make

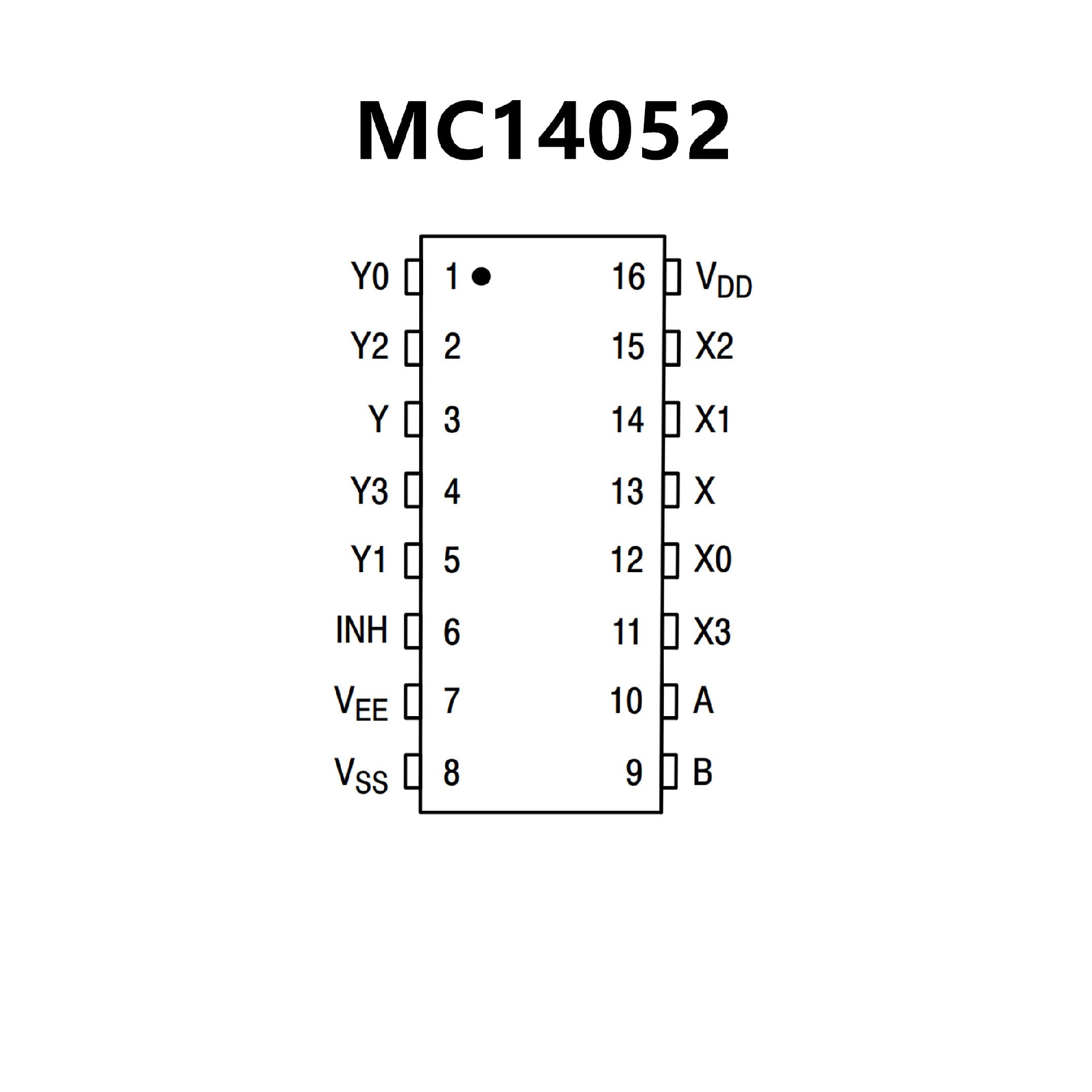

? Supply Voltage Range = 3.0 Vdc to 18 Vdc
? Analog Voltage Range (VDD ? VEE) = 3.0 to 18 V
Note: VEE must be ≤ VSS
? Linearized Transfer Characteristics
? Low?noise ? 12 nV/√Cycle, f ≥ 1.0 kHz Typical
? Pin?for?Pin Replacement for CD4051, CD4052, and CD4053
? For 4PDT Switch, See MC14551B
? For Lower RON, Use the HC4051, HC4052, or HC4053
High?Speed CMOS Devices
? NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
