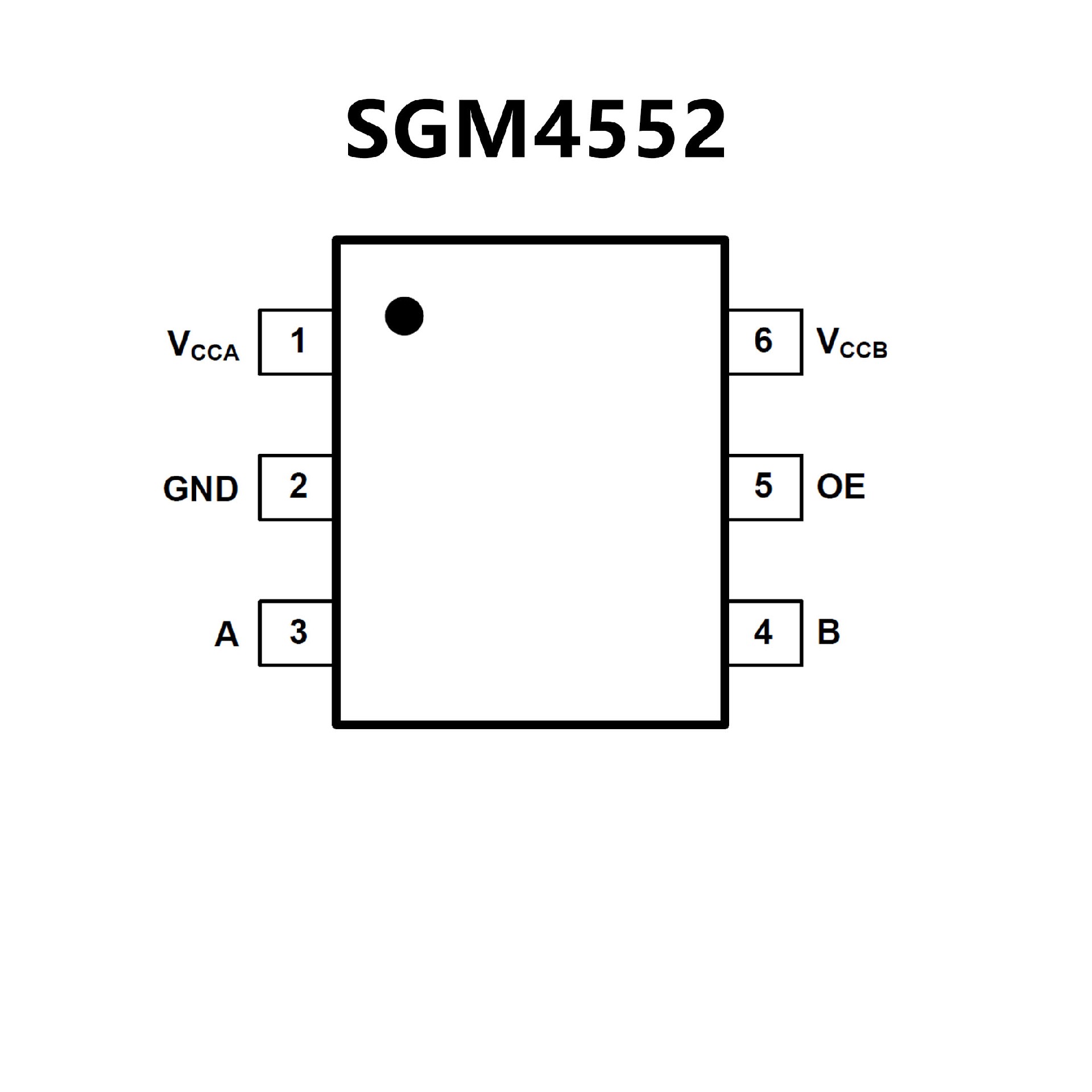

SGM4552.pdf? No Direction-Control Signal Needed
? Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
? 1.65V to 5.5V on A Port and 2.3V to 5.5V on B Port
(VCCA ≤ VCCB)
? VCC Isolation: If Either VCC is at GND,
Both Ports are in the High-Impedance State
? No Power-Supply Sequencing Required:
Either VCCA or VCCB can be Ramped First
? IOFF: Supports Partial-Power-Down Mode Operation
? Available in Green UTDFN-1.45×1-6L, SOT-23-6 and
SC70-6 Packages
? Up and Down Trans1ation Across 0.65 v to 3.6 v
? Operating Temperature:-40°C to +125·C
? G1itch Free Power Supply Sequencing
? Maximum Quiescent Current (ICCA+ICCB) of 6 uA
(85°C Maximum) and 14 uA (125C Maximum)
500-Mbps Support when Both vCCA and VCCB Areat Least 1.65 v
? vCC Isolation Feature
If Either vCC Input is Below 100 mV,A11 IOs
Outputs are Disab1ed and Become High-Impedance
? Ioff Supports Partia1-Power-Down Mode OperationLatch-Up
Performance Exceeds 100 mA PerJESD 78,C1ass II
? ESD Protection Exceeds JESD 22- 8o00
V Human Body Mode1- 100o
v Charged-Device Mode1
