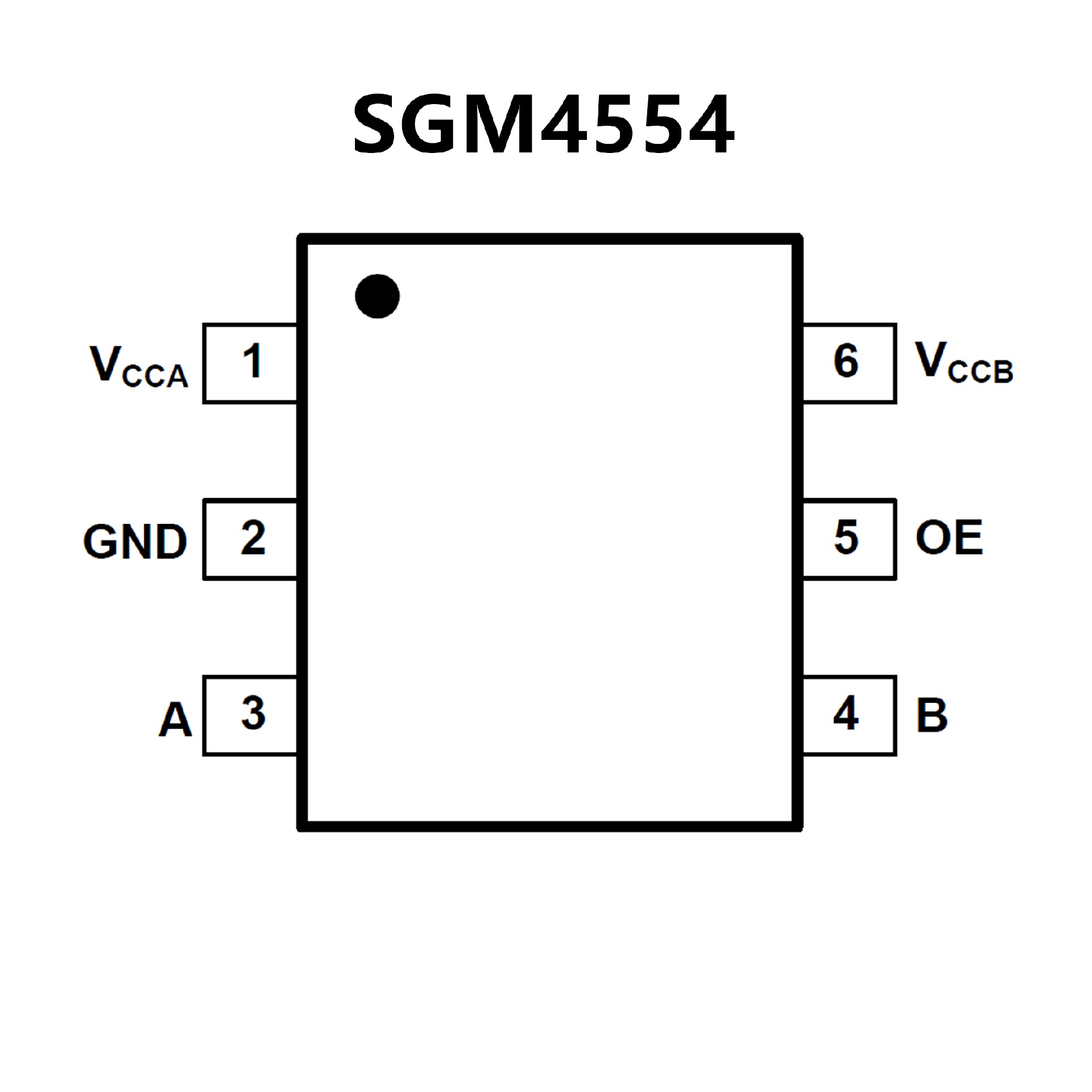

SGM4554.pdf? 1.2V to 5.0V on A Port and 1.65V to 5.5V on B Port
(VCCA ≤ VCCB)
? VCC Isolation: If Either VCC is at GND,
All Outputs are in the High-Impedance State
? OE Input Circuit Referenced to VCCA
? Low Power Consumption
? Push-Pull Output
? IOFF: Supports Partial-Power-Down Mode Operation
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1.45×1-6L and SC70-6
Packages

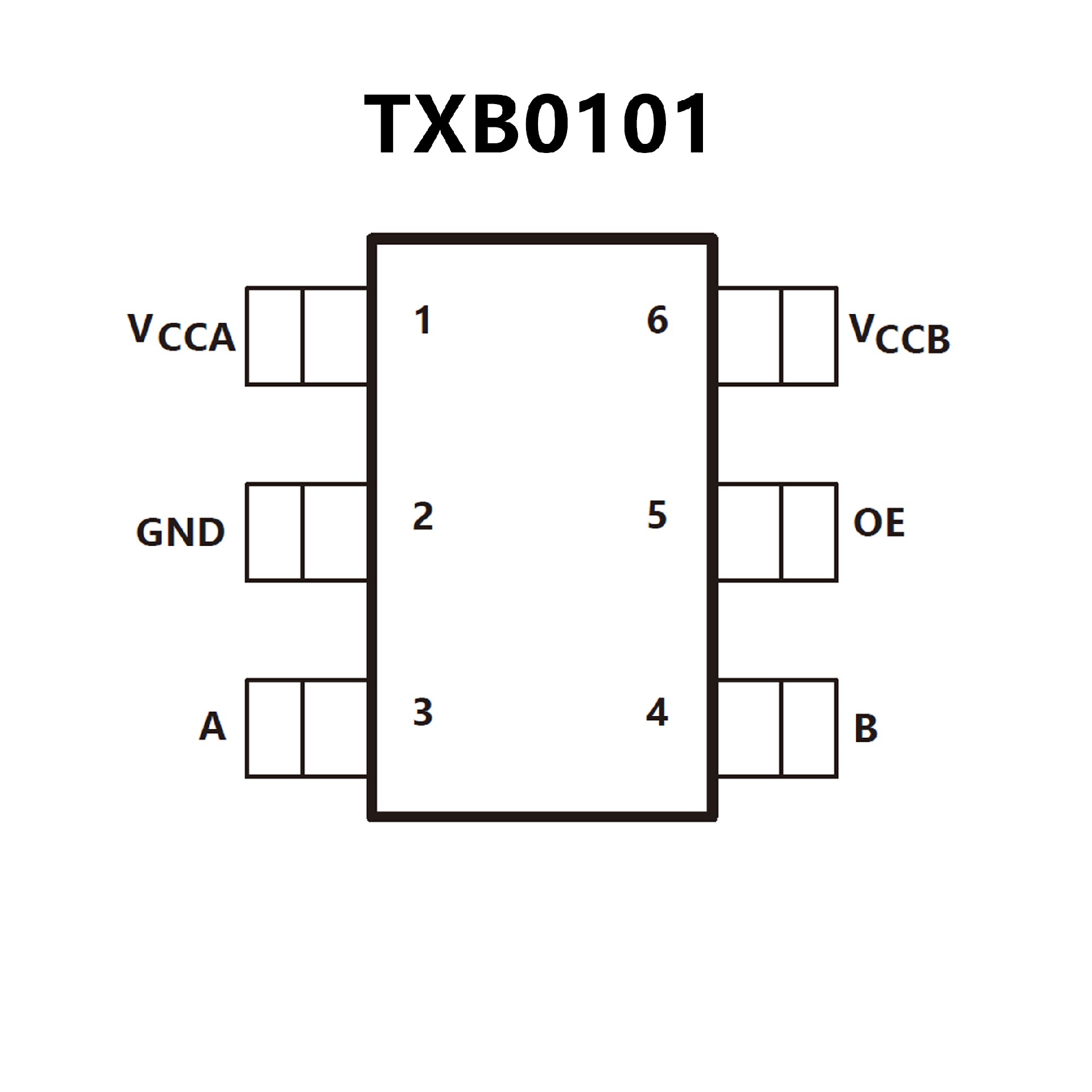

? Available in the Texas Instruments NanoFree?
Package
? 1.2 V to 3.6 V on A Port and
1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
? VCC Isolation Feature – If Either VCC Input is at
GND, All Outputs are in the High-Impedance State
? OE Input Circuit Referenced to VCCA
? Low Power Consumption, 5 μA Maximum ICC
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
A Port
2000 V Human Body Model (A114-B)
250 V Machine Model (A115-A)
1500 V Charged-Device Model (C101)
B Port
15 kV Human Body Model (A114-B)
250 V Machine Model (A115-A)
1500 V Charged-Device Model (C101)
