4-Bit Bidirectional Level-Shifter, SGM4562 Replace TXB0304RUTR.
SGM4562.pdf優勢替代
FEATURES
? Fully Symmetric Supply Voltages, 0.9 V to 3.6 V
on A Port and 0.9 V to 3.6 V
? VCC Isolation Feature – If Either VCC Input is at
GND, all Outputs are in High-Impedance State
? OE Input Circuit Referenced to VCCA
? Low Power Consumption, 5 μA Max (ICCA or ICCB)
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-B)
1000-V Charged-Device Model (C101)

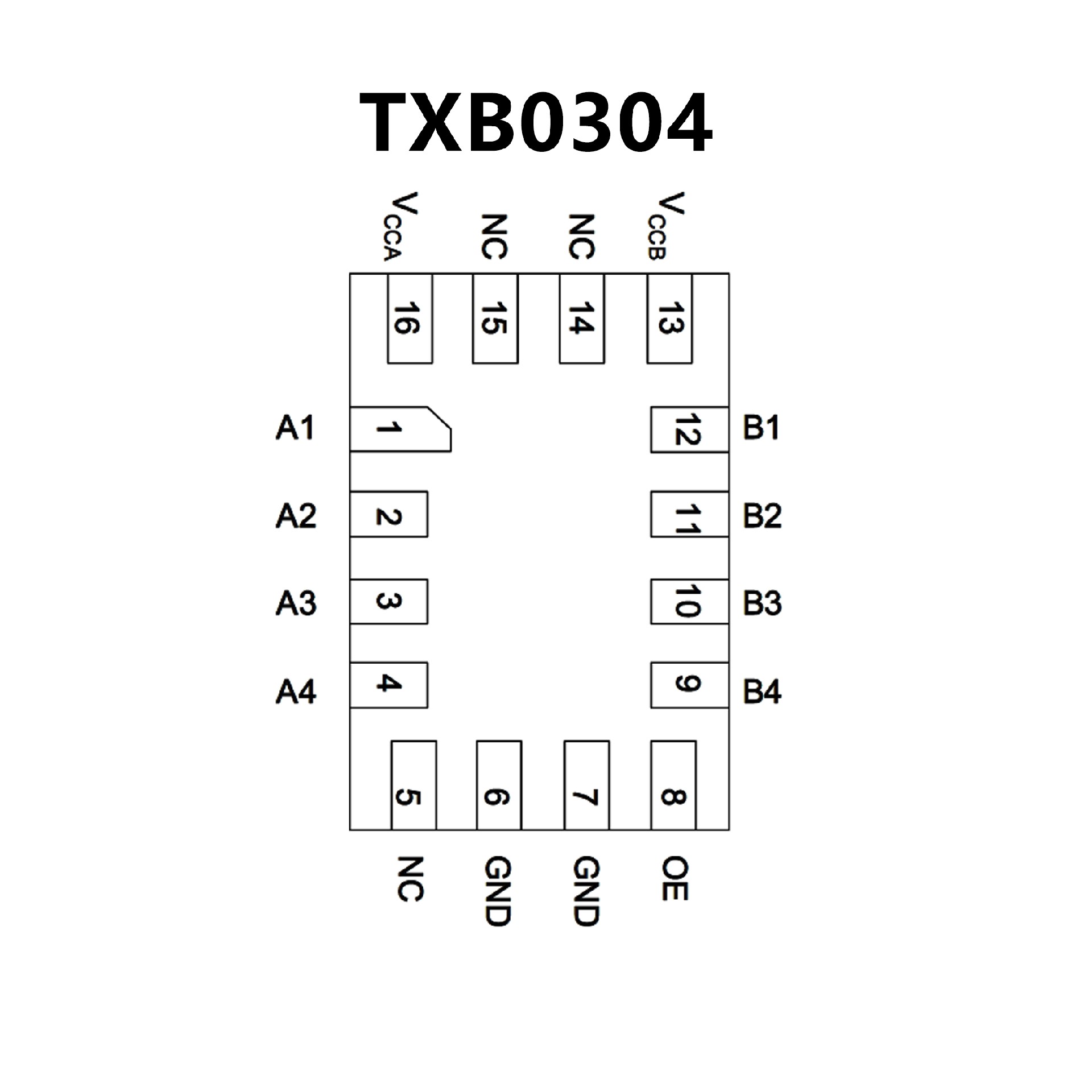

PIN CONFIGUTION
