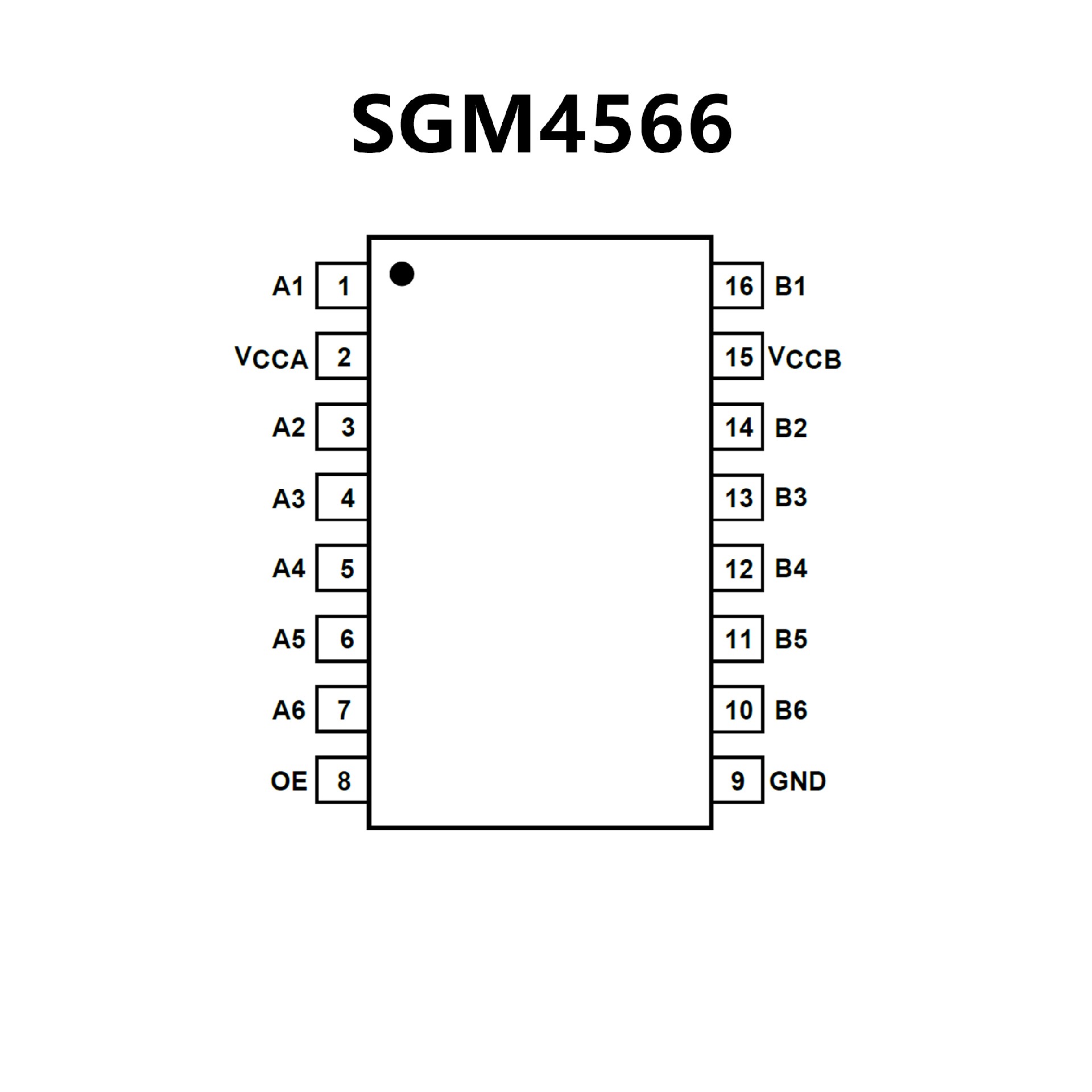

SGM4566.pdf? 1.2V to 5.5V on A Ports and 1.65V to 5.5V on
B Ports (VCCA ≤ VCCB)
? VCC Isolation: If Either VCC is at GND,
All Outputs are in the High-Impedance State
? OE Input Circuit Referenced to VCCA
? Low Power Consumption
? Push-Pull Output
? IOFF: Supports Partial-Power-Down Mode Operation
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14 and UTQFN-1.8×1.8-12L
Packages

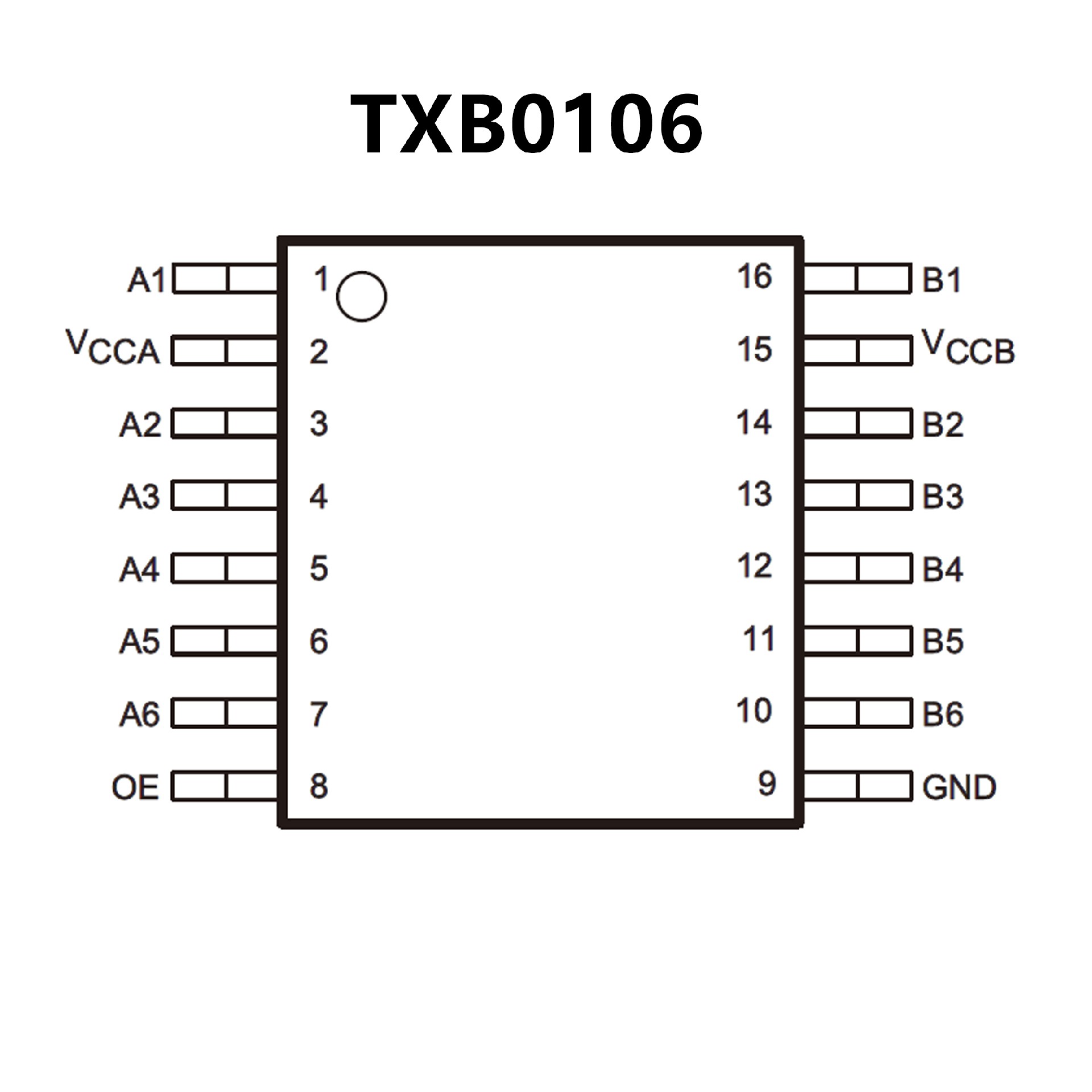

? 1.2-V to 3.6-V on A port and 1.65-V to 5.5-V
on B port (VCCA ≤ VCCB)
? VCC isolation feature: if either VCC input ss at GND,
all outputs are in the high-impedance state
? Output enable (OE) input circuit referenced to
VCCA
? Low power consumption, 5-μA maximum ICC
? I OFF supports partial power-down mode operation
? Latch-up Performance Exceeds 100 mA Per JESD
78, Class II
? ESD Protection Exceeds JESD 22
A Port:
? 2500-V Human-Body Model (A114-B)
? 1500-V Charged-Device Model (C101)
B Port:
? ±15-kV Human-Body Model (A114-B)
? 1500-V Charged-Device Model (C101)
