Dual supply translating transceiver; open drain;auto direction sensing, SGM4573XTS14GTR Replace NXS0104.
SGM4573
SGM4573.pdf
SGM4573.pdfFEATURES
? VCCA Supply Voltage Range: 1.65V to 3.6V
? VCCB Supply Voltage Range: 2.3V to 5.5V
? Inputs Accept Voltages up to 5.5V
? Push-Pull Data Rate: 24Mbps
? IOFF Circuitry Provides Partial Power-Down
Mode Operation
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package
PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range:
? VCC(A): 1.65 V to 3.6 V and
VCC(B): 2.3 V to 5.5 V
? Maximum data rates:
? Push-pull: 24 Mbps
? IOFF circuitry provides partial
Power-down mode operation
? Inputs accept voltages up to 5.5 V
? ESD protection:
? HBM: ANSI/ESDA/Jedec JS-001 Class
2 exceeds 2.5 kV for A port
? HBM: ANSI/ESDA/Jedec JS-001 Class
3B exceeds 15 kV for B port
? CDM: ANSI/ESDA/Jedec JS-002
Class C3 exceeds 1.5 kV
? IEC61000-4-2 contact discharge
exceeds 8000 V for B port
? Latch-up performance exceeds 100
mA per JESD 78B Class II
? Multiple package options
? Specified from -40 °C to +85 °C
and -40 °C to +125 °C

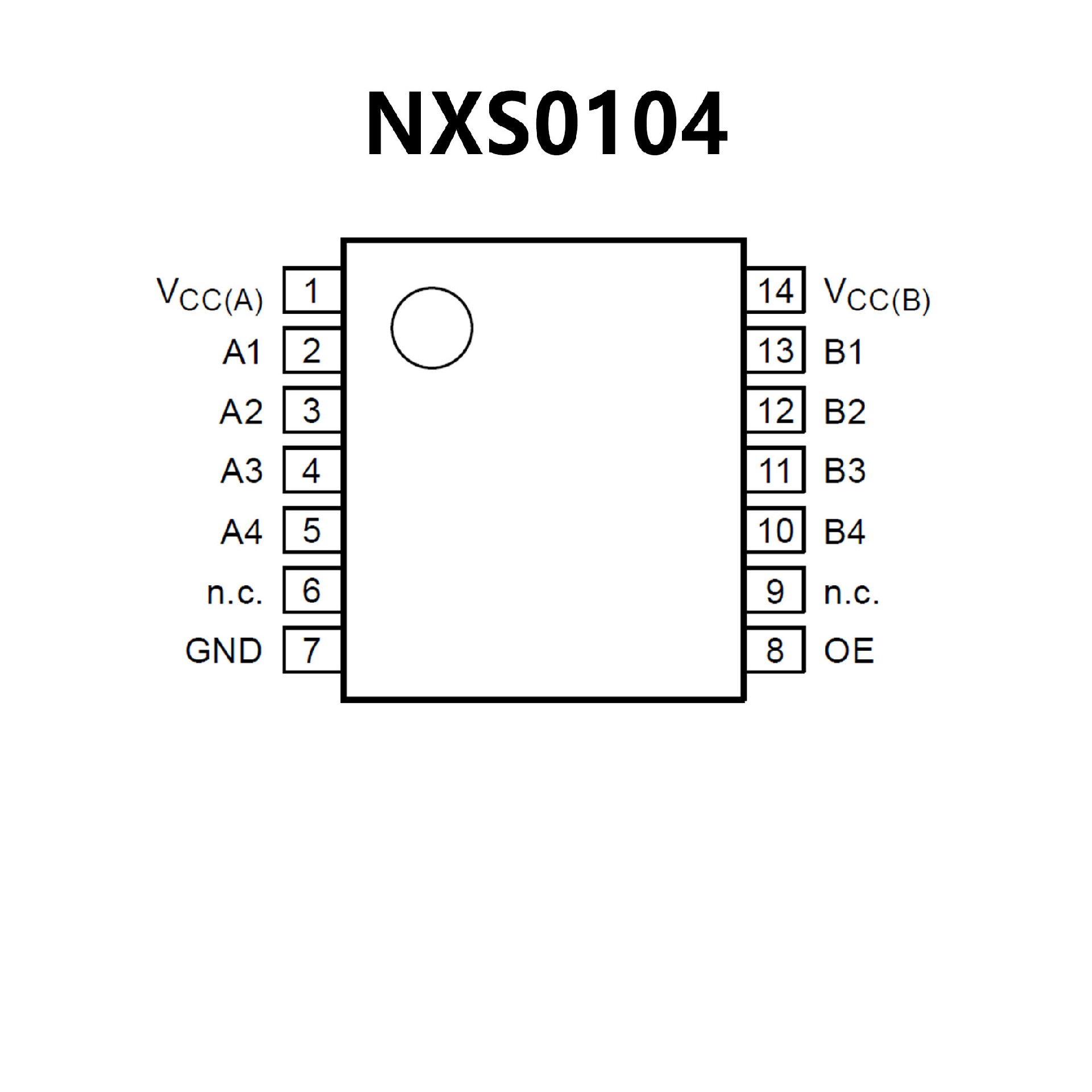

PIN CONFIGUTION
