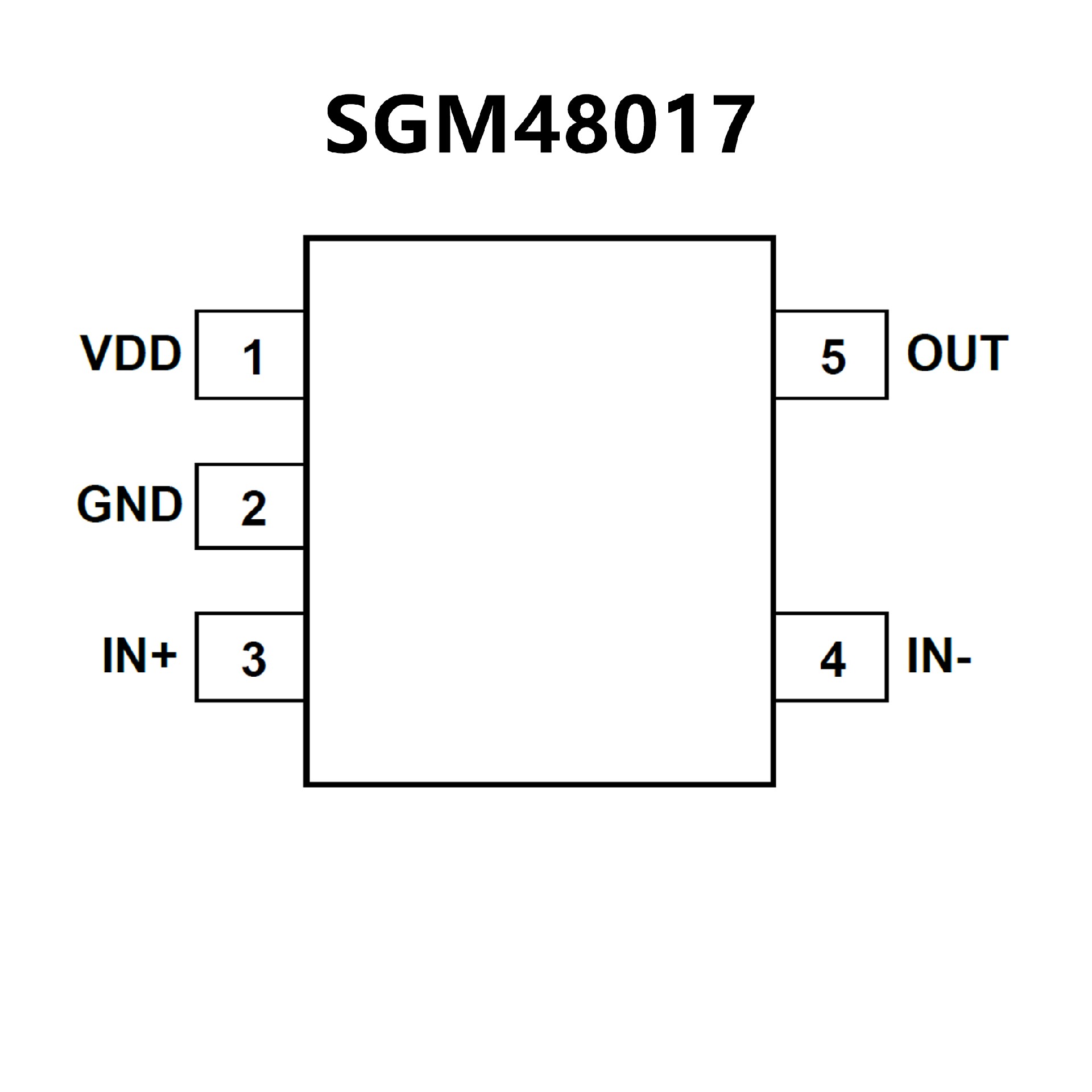

SGM48017.pdf? Simple and Reliable
? 8A Source and 13A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 20V
? Fast Propagation Delay: 30ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pin:
-10V when (VDD - VINx) ≤ 22V
? Negative Voltage Capability on EN Pin:
-10V when (VDD - VEN) ≤ 22V
? Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

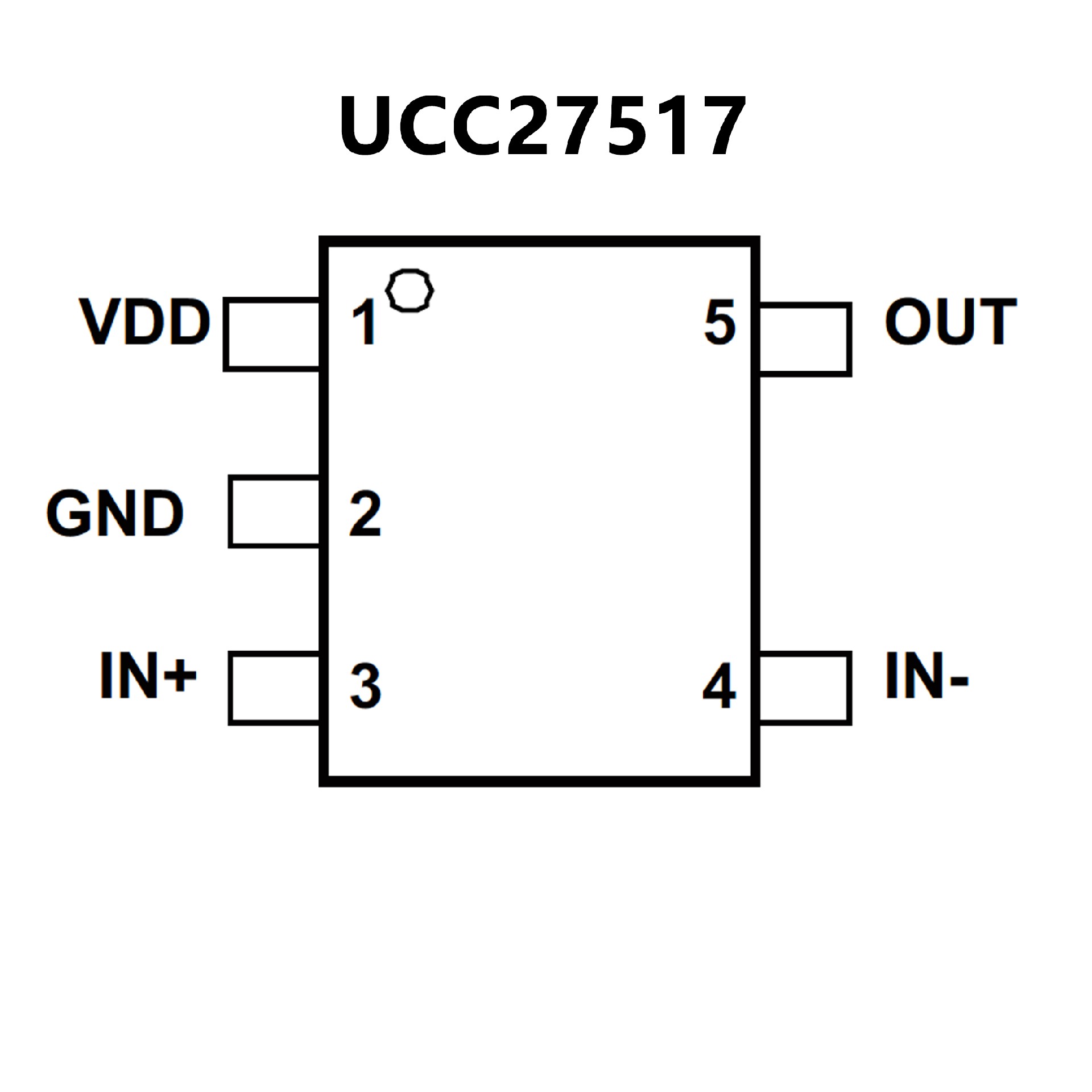

? Low-Cost, Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
? 4-A Peak Source and 4-A Peak Sink Symmetrical Drive
? Fast Propagation Delays (13-ns typical)
? Fast Rise and Fall Times (9-ns and 7-ns typical)
? 4.5-V to 18-V Single Supply Range
? Outputs Held Low During VDD UVLO (ensures glitch free
operation at power-up and powerdown)
? TTL and CMOS Compatible Input Logic Threshold
(independent of supply voltage)
? Hysteretic Logic Thresholds for High Noise Immunity
? Dual Input Design (choice of an inverting (INpin) or
non-inverting (IN+ pin) driver configuration)
Unused Input Pin can be Used for Enable or Disable Function
