SGM48510.pdf? High Current Drive Capability: ±10A
? TTL/CMOS Compatible Inputs Independent ofSupply Voltage
? High Reverse Current Capability (10A) Peak
? 4ns Typical Rise and 4ns Typical Fall Times with1.8nF Load
? Fast Propagation Delay Times of 13ns with
InputFalling and 13ns with Input Rising
? Input Voltage Range: 4.5V to 24V
? Split Output Configuration
? Dual Input Design Offering Drive Flexibility

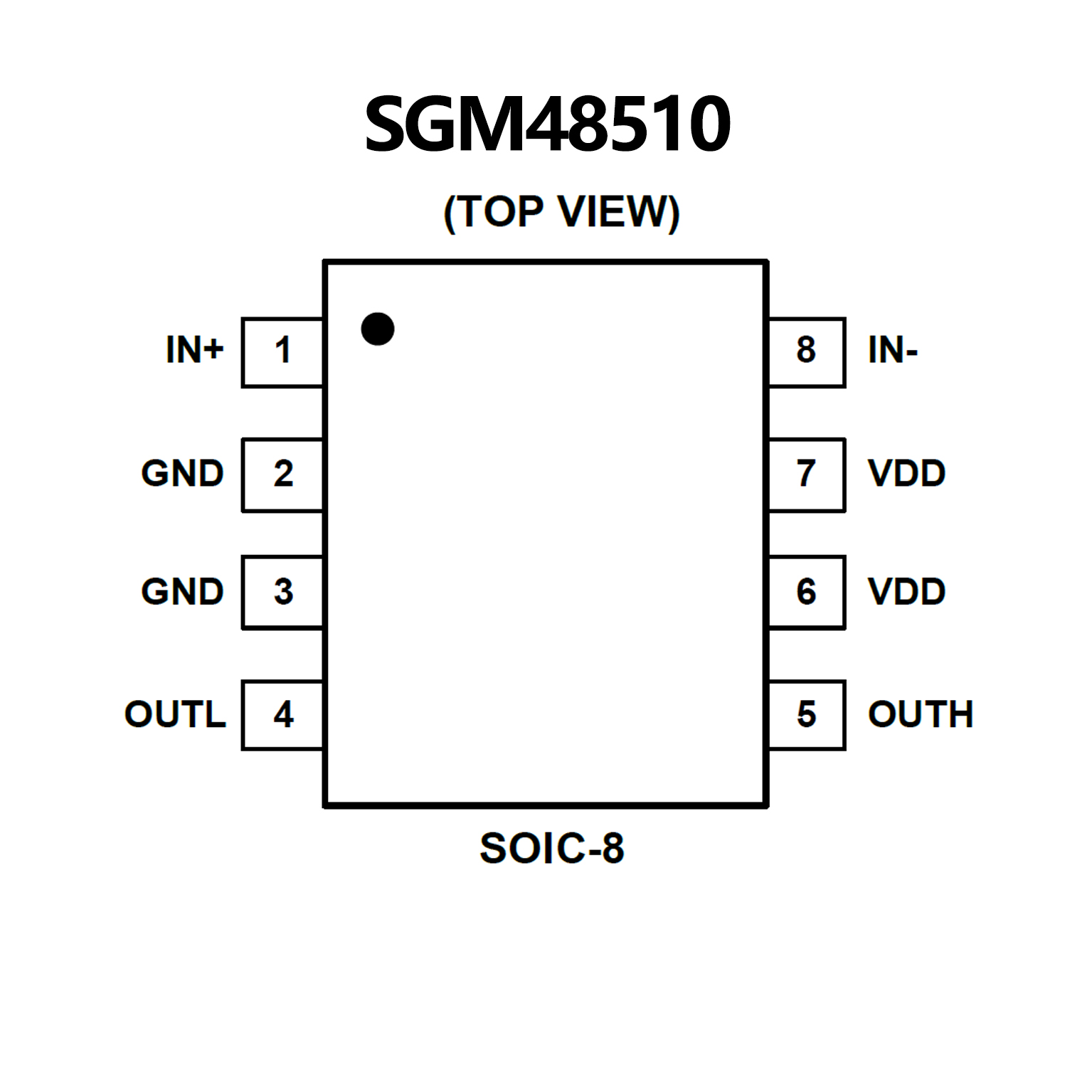

? Available in Green SOIC-8 and TDFN-2×2-8LPackages
? High Current Drive Capability ±10 A
? TTL/CMOS Compatible Inputs Independent of
Supply Voltage
? High Reverse Current Capability (10 A) Peak
? 4 ns Typical Rise and 4 ns Typical Fall Times with
1.8 nF Load
? Fast Propagation Delay Times of 15 ns with Input
Falling and 15 ns with Input Rising
? Input Voltage Range from 4.5 V to 20 V ? Split
Output Configuration
? Dual Input Design Offering Drive Flexibility
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
