7A, 5A Low-Side GaN Driver With 60MHz, 1ns Speed, SGM48520 Replace LMG1020.
SGM48520
SGM48520.pdf
SGM48520.pdfFEATURES
? 5V Supply Voltage
? 6A Peak Source and 4A Peak Sink Currents
? Ultra-Fast, Low-side Gate Driver for GaN and
Si FETs
? Minimum Input Pulse Width: 1ns
? Up to 60MHz Operation
? Propagation Delay: 2ns (TYP)
? Rise Time: 570ps (TYP)
? Fall Time: 610ps (TYP)
? Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)
? Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6AL Packages

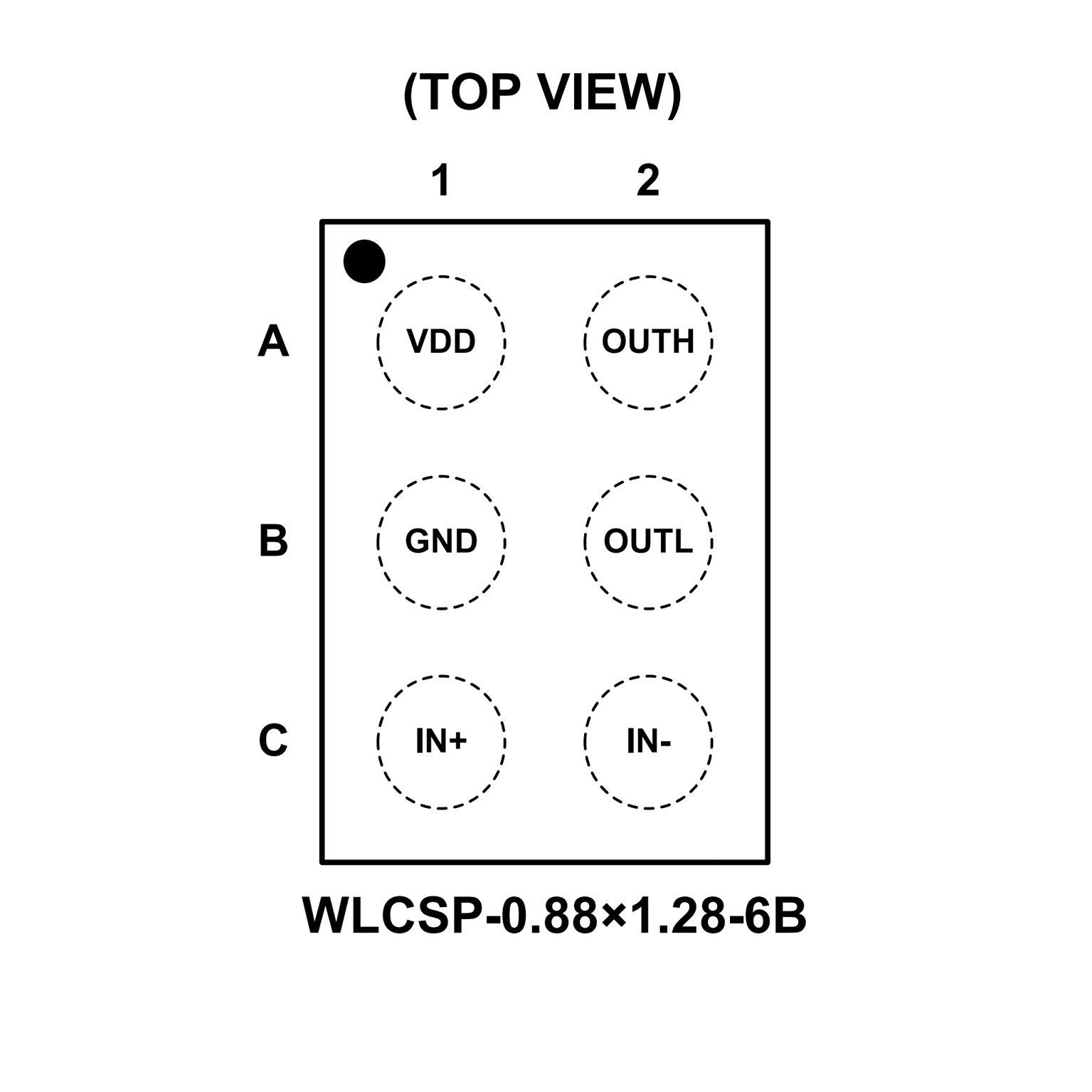

PIN CONFIGUTION
優勢替代
FEATURES
? Low-Side, Ultra-Fast Gate Driver for GaN and Silicon FETs
? 1 ns Minimum Pulse
? Up to 60 MHz Operation
? 2.5 ns Typical, 4.5 ns Maximum Propagation Delay
? 400 ps Typical Rise and Fall Time
? 7-A Peak Source and 5-A Peak Sink Currents
? UVLO and Overtemperature Protection
? 0.8 mm × 1.2 mm WCSP Package

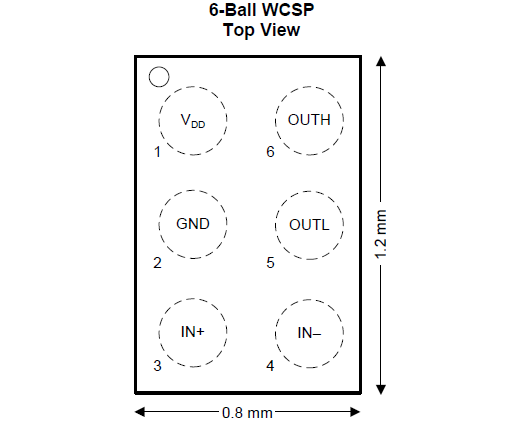

PIN CONFIGUTION
