SGM48520.pdf? 5V Supply Voltage
? 6A Peak Source and 4A Peak Sink Currents
? Ultra-Fast, Low-side Gate Driver for GaN and
Si FETs
? Minimum Input Pulse Width: 1ns
? Up to 60MHz Operation
? Propagation Delay: 2ns (TYP)
? Rise Time: 570ps (TYP)
? Fall Time: 610ps (TYP)
? Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)

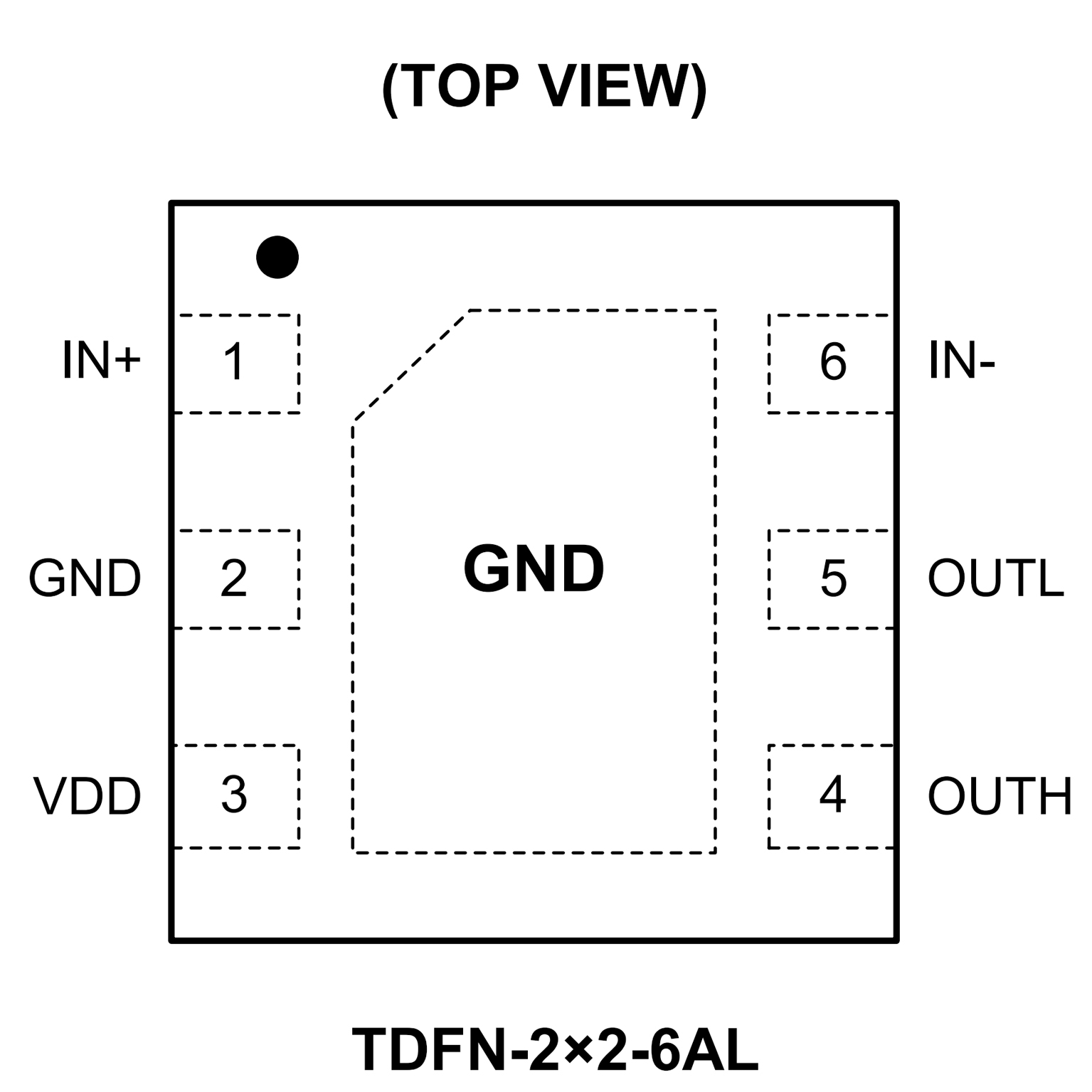

? Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6AL Packages
? AEC-Q100 grade 1 qualified
? 1.25-ns typical minimum input pulse width
? 2.6-ns typical rising propagation delay
? 2.9-ns typical falling propagation delay
? 300-ps typical pulse distortion
? Independent 7-A pull-up and 5-A pull-down current
? 650-ps typical rise time (220-pF load)
? 850-ps typical fall time (220-pF load)

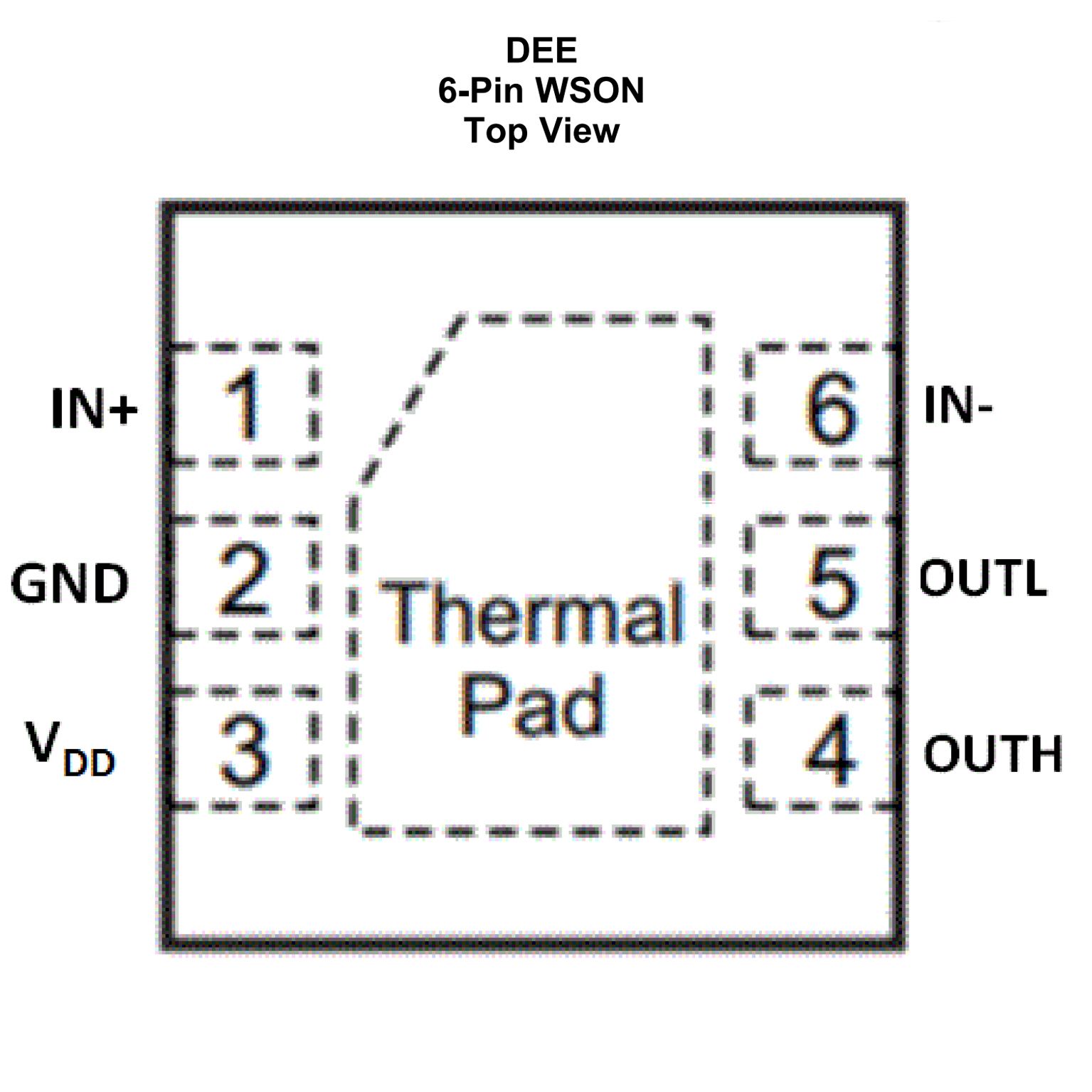

? 2-mm x 2-mm QFN package
? Inverting and non-inverting inputs
? UVLO and over-temperature protection
? Single 5-V supply voltage
