SGM48521Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? 5V Supply Voltage
? 7A Peak Source and 6A Peak Sink Currents
? Ultra-Fast, Low-side Gate Driver for GaN and Si
FETs
? Minimum Input Pulse Width: 1ns
? Up to 60MHz Operation
? Propagation Delay: 2.2ns (TYP), 3.5ns (MAX)
? Rise Time:
WLCSP-0.88×1.28-6B: 500ps (TYP)
TDFN-2×2-6DL: 600ps (TYP)
? Fall Time:
WLCSP-0.88×1.28-6B: 460ps (TYP)
TDFN-2×2-6DL: 590ps (TYP)
? Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)

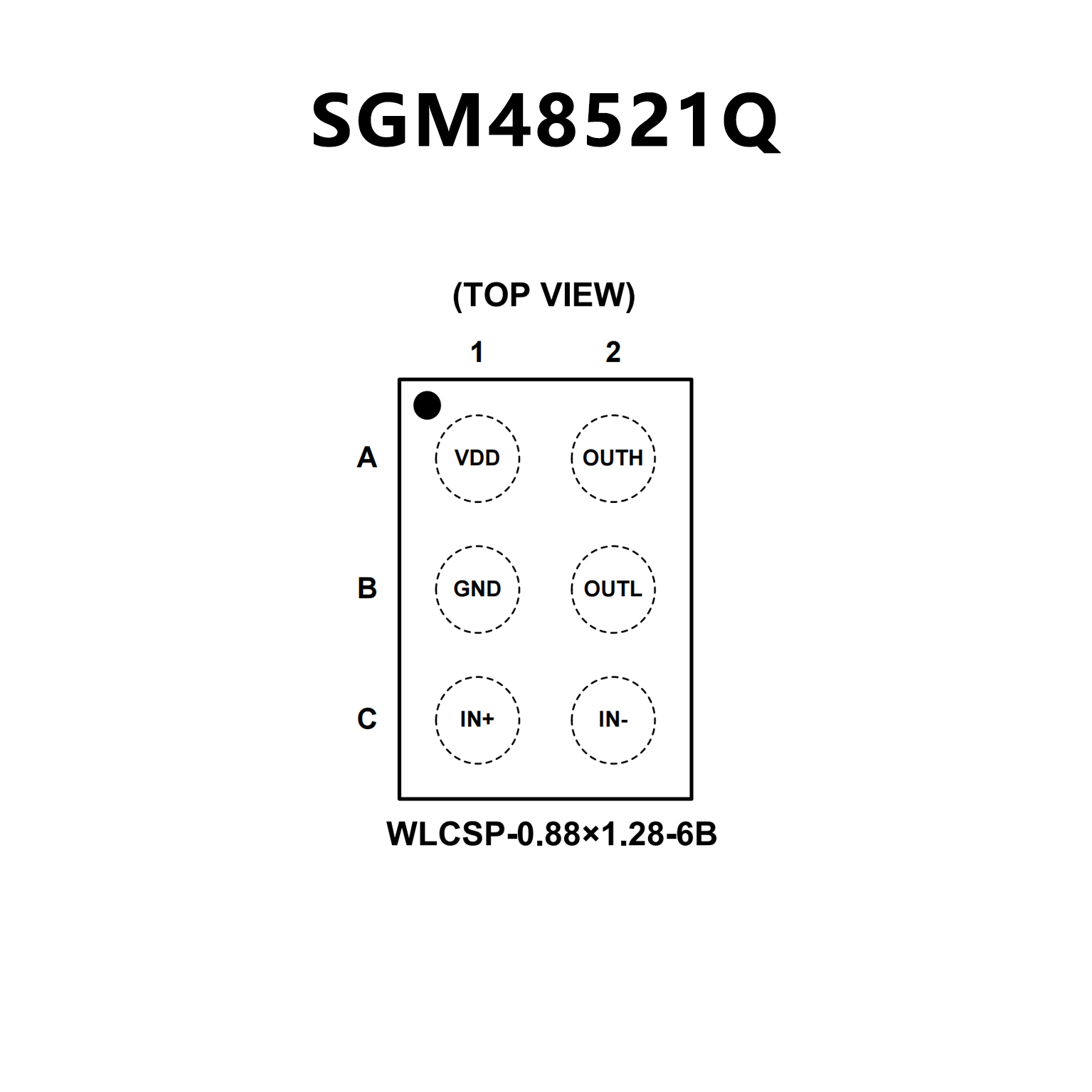

? Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6DL Packages
? Low-Side, Ultra-Fast Gate Driver for GaN and Silicon FETs
? 1 ns Minimum Input Pulse Width
? Up to 60 MHz Operation
? 2.5 ns Typical, 4.5 ns Maximum Propagation Delay
? 400 ps Typical Rise and Fall Time
? 7-A Peak Source and 5-A Peak Sink Currents
? 5-V Supply Voltage
? UVLO and Overtemperature Protection

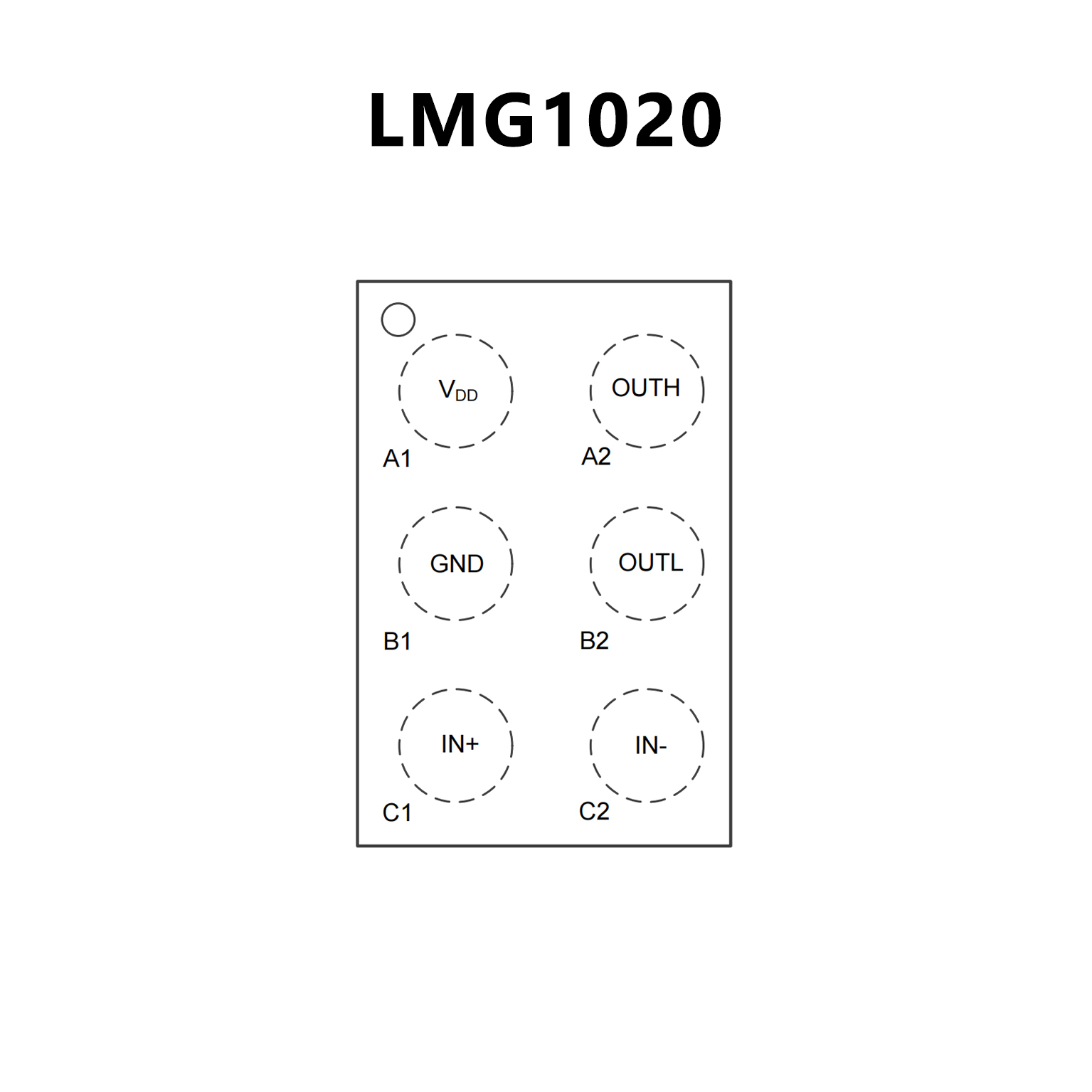

? 0.8 mm × 1.2 mm WCSP Package
