2.5A and 5A, 35VMAX VDD FET and IGBT Single-Gate Driver, Replace UCC27536
SGM48536.pdf優勢替代
FEATURES
? Low Cost Gate Driver (offering optimal solution for driving
FET and IGBTs)
? Superior Replacement to Discrete Transistor Pair Drive
(providing easy interface with controller)
? TTL and CMOS Compatible Input Logic Threshold,
(independent of supply voltage)
? Split Output Options Allow for Tuning of Turn- On and
Turn-Off Currents
? Inverting and Non-Inverting Input Configurations
? Enable with Fixed TTL Compatible Threshold
? High 2.5-A Source and 2.5-A or 5-A Sink Peak Drive
Currents at 18-V VDD
? Wide VDD Range From 10 V up to 35 V
? Input and Enable Pins Capable of Withstanding up to
-5-V DC Below Ground
? Output Held Low When Inputs are Floating or During
VDD UVLO
? Fast Propagation Delays (17-ns typical)
? Fast Rise and Fall Times

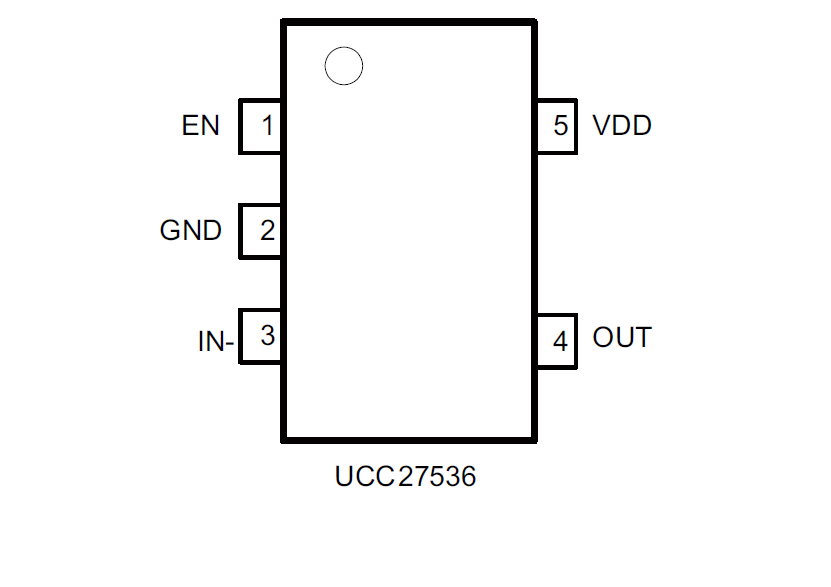

PIN CONFIGUTION
