2.5 A and 5 A, 35 VMAX VDD FET and IGBT Single Gate Driver,Replace UCC27531-Q1
FEATURES

資料完善中






























PIN CONFIGUTION
優勢替代
UCC27531-Q1 UCC27531-Q1.pdf

No.13846

FEATURES

Qualified for Automotive Applications

AEC-Q100 Qualified with the Following Results:

  Device Temperature Grade 1

  Device HBM ESD Classification Level H2

  Device CDM ESD Classification Level C4B

Low Cost Gate Driver (Offering Optimal

  Solution for Driving Fet And Igbts)

Superior Replacement to Discrete Transistor Pair

  Drive (Providing Easy Interface With Controller)

  TTL and CMOS Compatible Input Logic

  Threshold, (Independent of Supply Voltage)

Split Output Options Allow for

  Tuning of Turn-On and Turn-Off Currents

Enable with Fixed TTL Compatible Threshold

High 2.5-A Source and 5-A Sink

  Peak Drive Currents at 18-V VDD

Wide VDD Range From 10 V up to 35 V

Input and Enable Pins Capable of

  Withstanding up to –5-V DC Below Ground

Output Held Low When Inputs are

  Floating or During VDD UVLO

Fast Propagation Delays (17-ns Typical)

Fast Rise and Fall Times

  (15-ns and 7-ns Typical With 1800-pF Load)

Undervoltage Lockout (UVLO)

Used as a High-Side or Low-Side Driver

  (if Designed With Proper Bias and Signal Isolation)

  Low-Cost, Space-Saving

  6-Pin DBV (SOT-23) Package Options

Operating Temperature Range of –40°C to 140°C

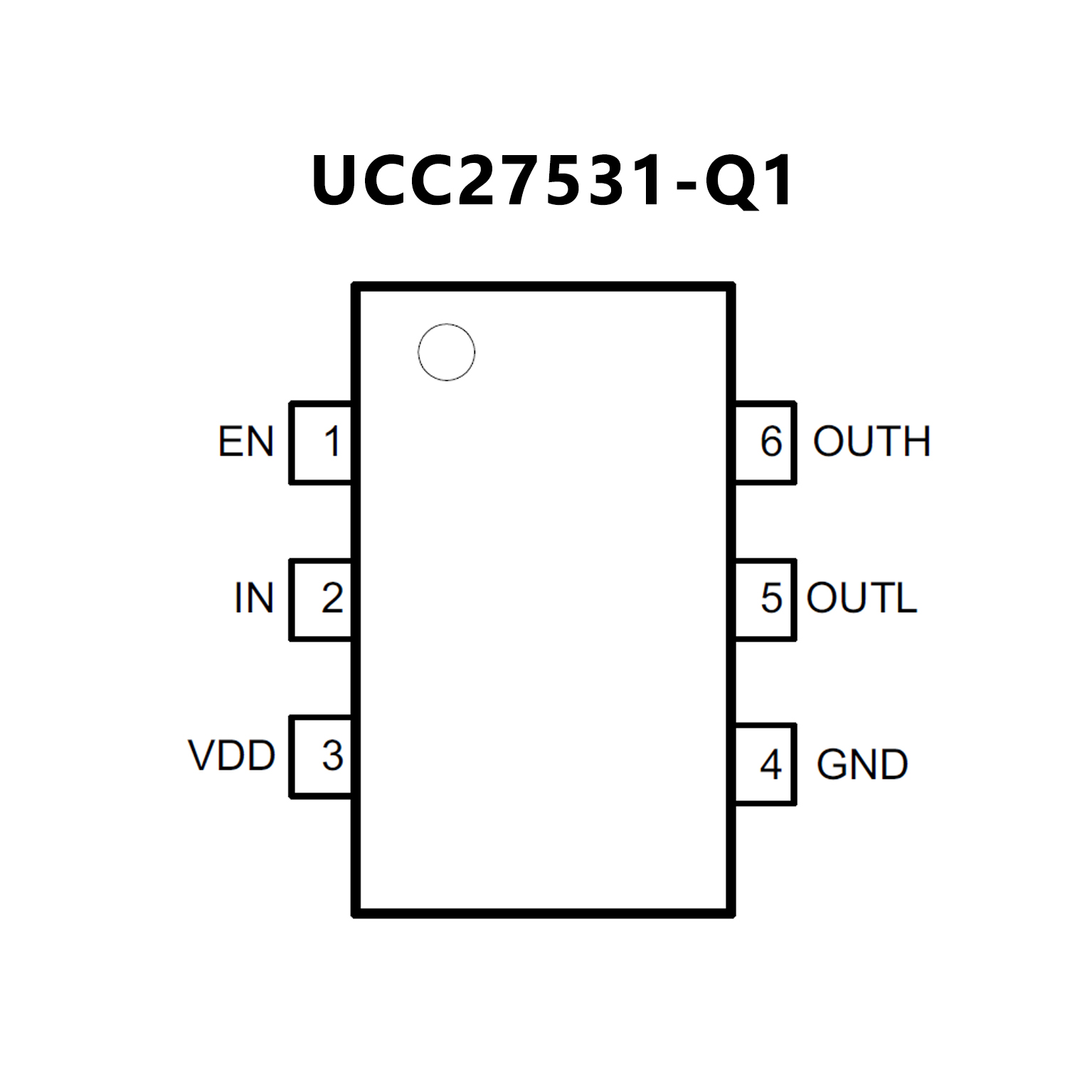

PIN CONFIGUTION
