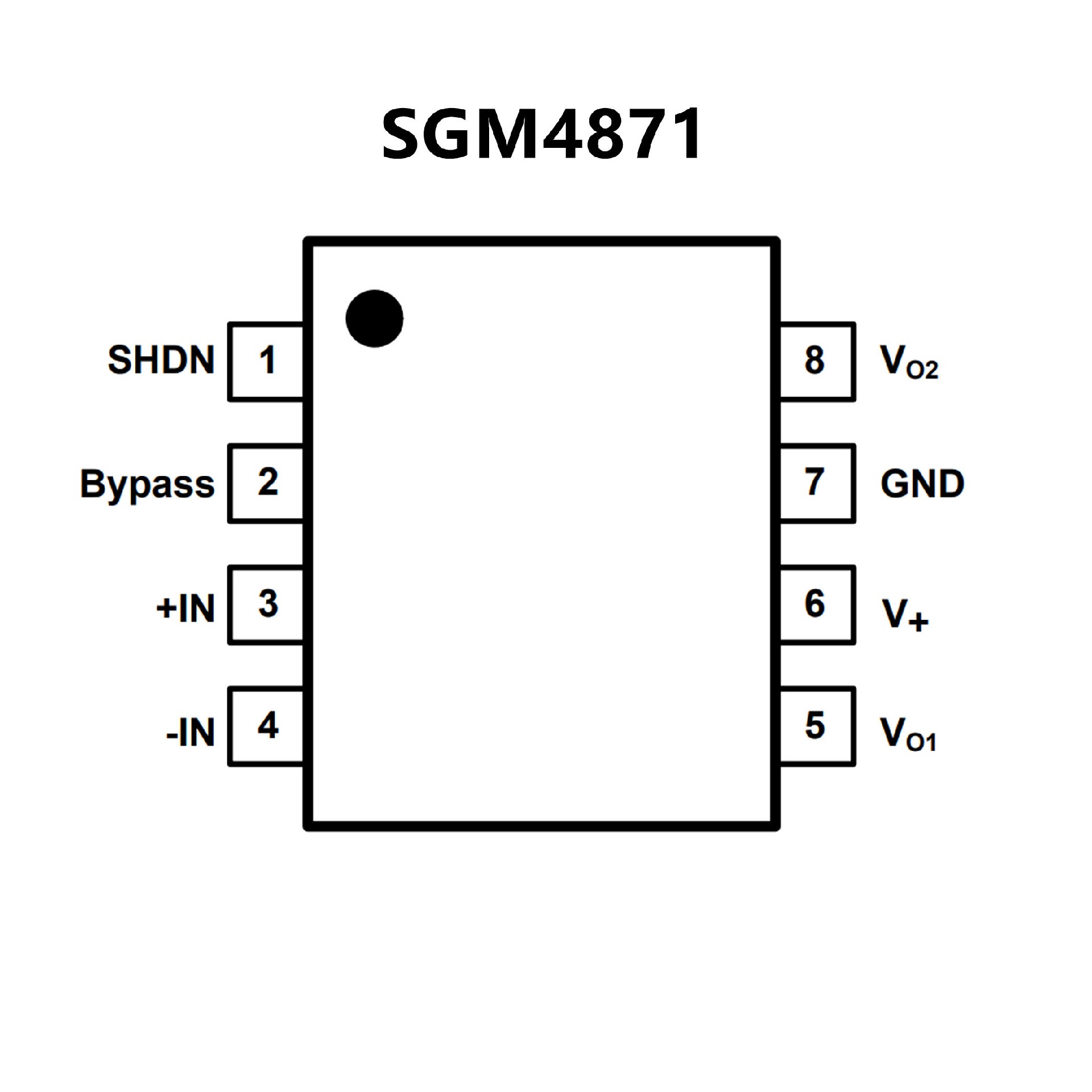

SGM4871.pdf? Output Power at THD+N = 10%,
1kHzSGM4871YPS8: 2.4W (TYP) into 4?
LoadSGM4871YS8: 1.5W (TYP) into 8? Load
? Unity Gain Stable
? 2.5V to 5.5V Operation
? Shutdown Current: 0.07μA (TYP)
? Thermal Overload Protection Circuitry
? No Output Coupling Capacitors,
BootstrapCapacitors or Snubber
Networks Required
? External Gain Configuration Capability
? -40℃ to +85℃ Operating
Temperature Range
? Available in Green SOIC-8
(Exposed Pad) andSOIC-8 Packages
? Available in Space-Saving WSON and SOIC Packages
? Ultra Low Current Shutdown Mode
? Can Drive Capacitive Loads up to 500pF
? Improved Click and Pop Circuitry Reduces
Noises During Turn-On and Turn-Off Transitions
? 2.2 - 5.5V Operation
? No Output Coupling Capacitors, Snubber
Networks, Bootstrap Capacitors or
Gain-Setting Resistors Required
? Unity-Gain Stable
